A051353

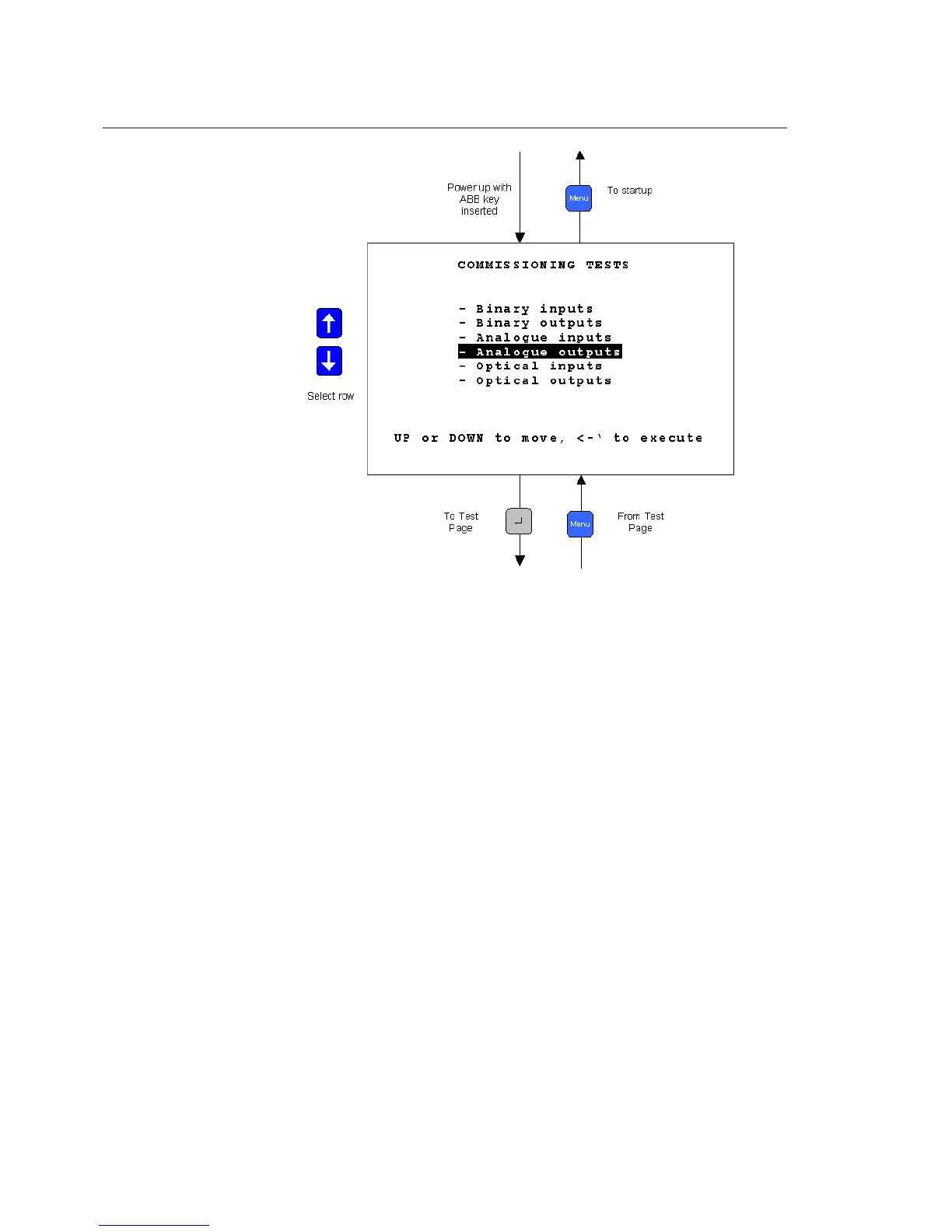

Fig. 13.-1 Comm issioning mode display
13.1. Binary input commissioning page
This page displays the current status of the binary input channels on the
binary IO modules. There are 14 binary inputs per module available. For the
binary inputs numbering see Section 18.2. Binary inputs and outputs.
Line description: “Channel descriptor”“Channel number “: “Values”
Channel descriptor: Binary input
Channel number: x-yy. Where x addresses the binary IO slot, yy is the binary
input number. 1 means X20 slot and so forth.
Values: 0 → input is not active. Applied voltage is below the
activation threshold.
1 → input is active. Applied voltage is above the activation
threshold.
40
REF542plus
Multifunction Protection and Switchgear Control
Unit
Operator's manual
1MRS755869
