13.5. Analog input 4-20 mA commissioning page
From this page, it is possible to read the analog measurements of the Analog
Input 4-20 mA module. The shown measurements will be depending on the
connected sensor type. In case of a general 4-20 mA sensor, the value of the
applied current to the channel is displayed. In case of a SF6 Trafag sensor, the
density and the temperature are displayed.
Line description: “Channel descriptor ”“Channel number “: “Values”
Channel descriptor: General 4-20 mA sensor → General sensor
Trafag → Density, Temperature
Channel number: x. Where x addresses the analog input channel.
Values: General Sensor → 4-20 mA, for Trafag the density and
the temperature.
A051359

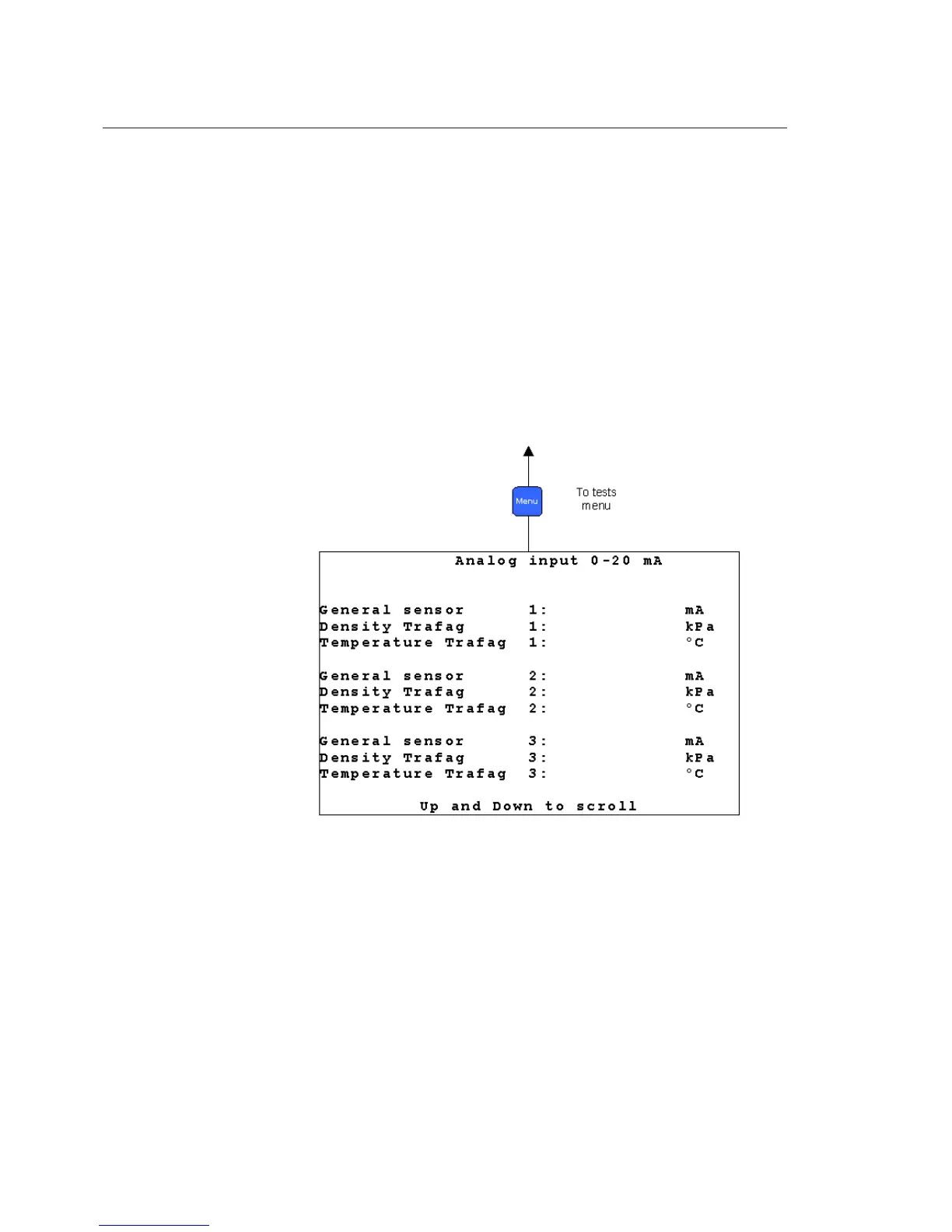

Fig. 13.5.-1 4-20 mA analog inputs commissioning page
