13.6. Optical inputs commissioning page
This page displays the status of the optical inputs on the main module. This
mode is available only with main modules equipped with the optical inputs
(1VCF751021R0803, X74 only and 1VCF751021R0801 for all).
Line description: “Channel descriptor”“Channel number “: “Values”
Channel descriptor: Optical Input
Channel number: x. Where x addresses the optical Input channel.
1: X74 (time synch input)
2: X75
3: X76
Values: 0: Optical input is off (no light is present).
1: Optical input is on (light is present).
A051360

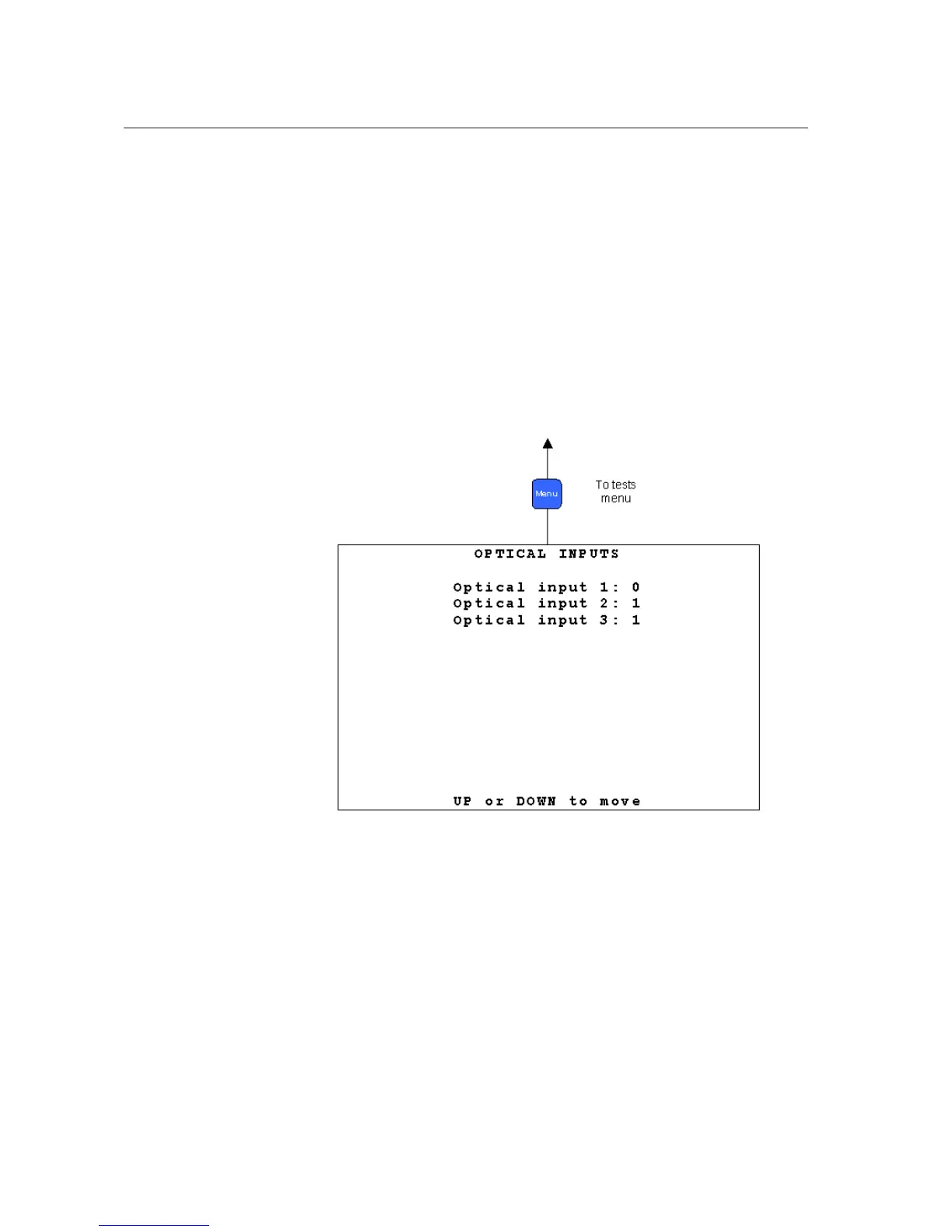

Fig. 13.6.-1 Optical inputs commissioning page
13.7. Optical output commissioning page
This page allows driving the optical output on the main module (only type
1VCF751021R801).
Line description: “Channel descriptor ”“Channel number “: “Values”
Channel descriptor: Optical output
Channel number: x. Where x addresses the optical output channel.
Values: 0: Optical output is off (light not present).
1: Optical output is on (light present).
