ABB REF542plus - Page 51

51
*
Open the application file with the Operating Tool and change it in the
hardware settings.
A051365

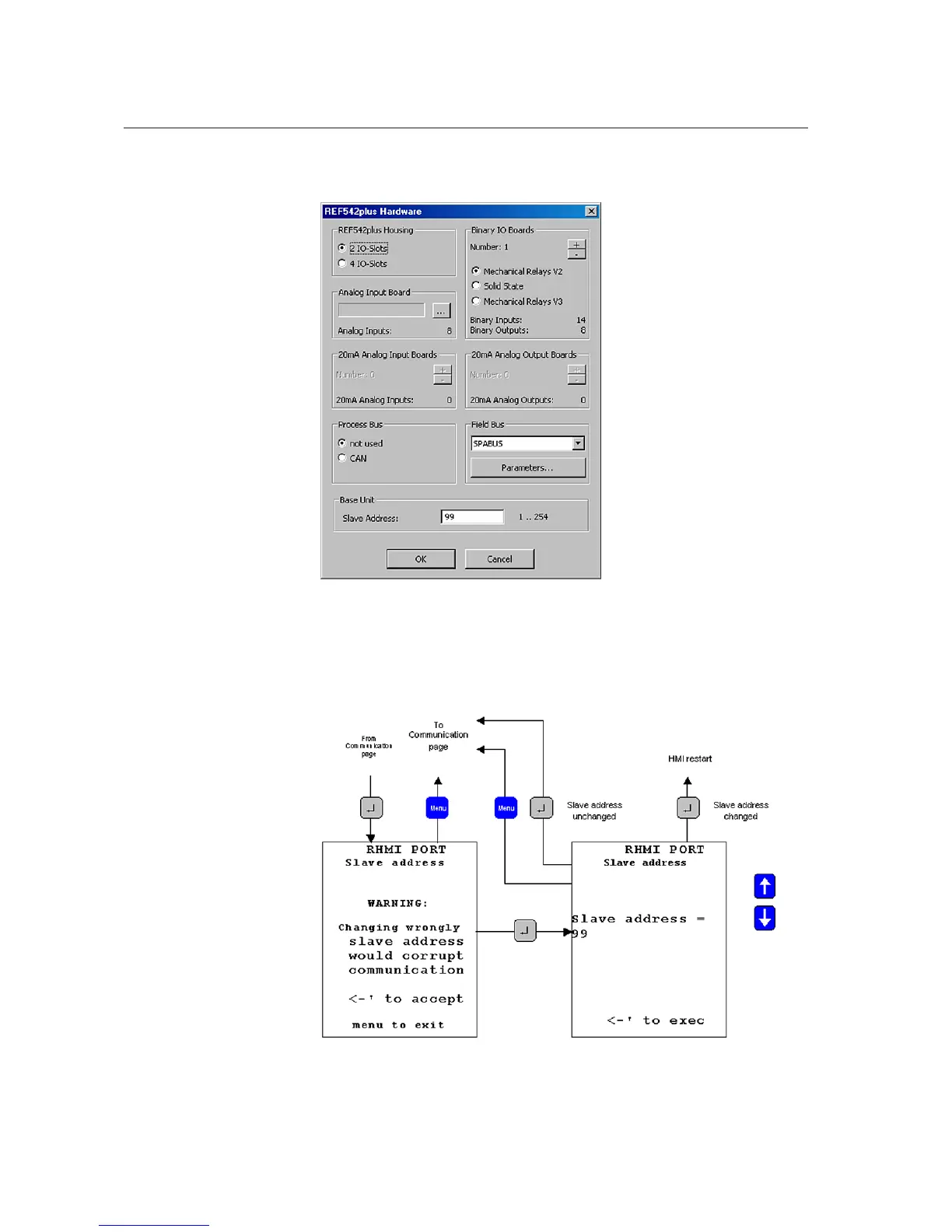

Fig. 14.2.1.-2 Changing the Base Unit address
*
Via the HMI menu > Service page > Communication > HMI PORT
A051366
Fig. 14.2.1.-3 Changing the Base Unit address from the HMI
1MRS755869
Multifunction Protection and Switchgear Control
Unit
Operator's manual
REF542plus
