57
A051438

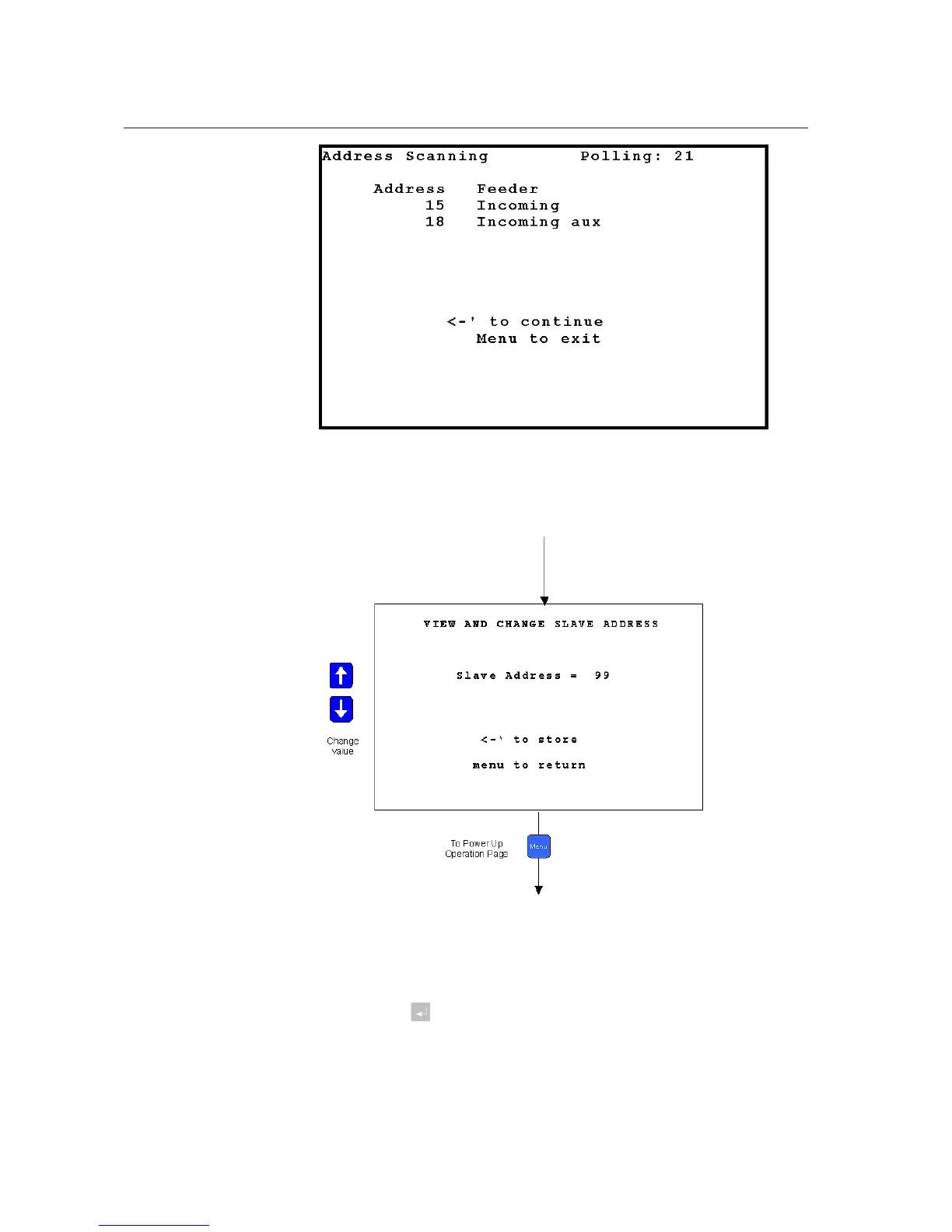

Fig. 15.1.-3 HMI is polling the Base unit addresses
Select the HMI <-> Base Unit address to change the address to be polled.
A051439
Fig. 15.1.-4 Changing the Base Unit address to be polled.
HMI Self Test
Press ENTER to start the test for the HMI.
1MRS755869
Multifunction Protection and Switchgear Control
Unit
Operator's manual
REF542plus
