Table 18.2.2.1.-1 BIO3 types and codes (Continued)
BIO3 Code Description
1VCF750132R0801 Binary I/O3 - 20..90 VDC/14 VDC Standard with
interconnected '-' on inputs
1VCF750132R0803 Binary I/O3 - 20..90 VDC/14 VDC with Static
Channel and with interconnected '-' on inputs
1VCF750132R0802 Binary I/O3 - 80..250 VDC/50 VDC Standard
1VCF750132R0804 Binary I/O3 - 80..250 VDC/50 VDC Standard with
Static Channel
1VCF750132R0802 Binary I/O3 - 80..250 VDC/50 VDC Standard with
interconnected '-' on inputs
1VCF750132R0804 Binary I/O3 - 80..250 VDC/50 VDC Standard with
Static Channel and with interconnected '-' on
inputs
1VCF750132R0805 Binary I/O3 - 80..250 VDC/72 VDC Standard
1VCF750132R0806 Binary I/O3 - 80..250 VDC/72 VDC Standard with
Static Channel
1VCF750132R0807 Binary I/O3 - 80..250 VDC/143 VDC Standard
1VCF750132R0808 Binary I/O3 - 80..250 VDC/143 VDC Standard
with Static Channel
A051455

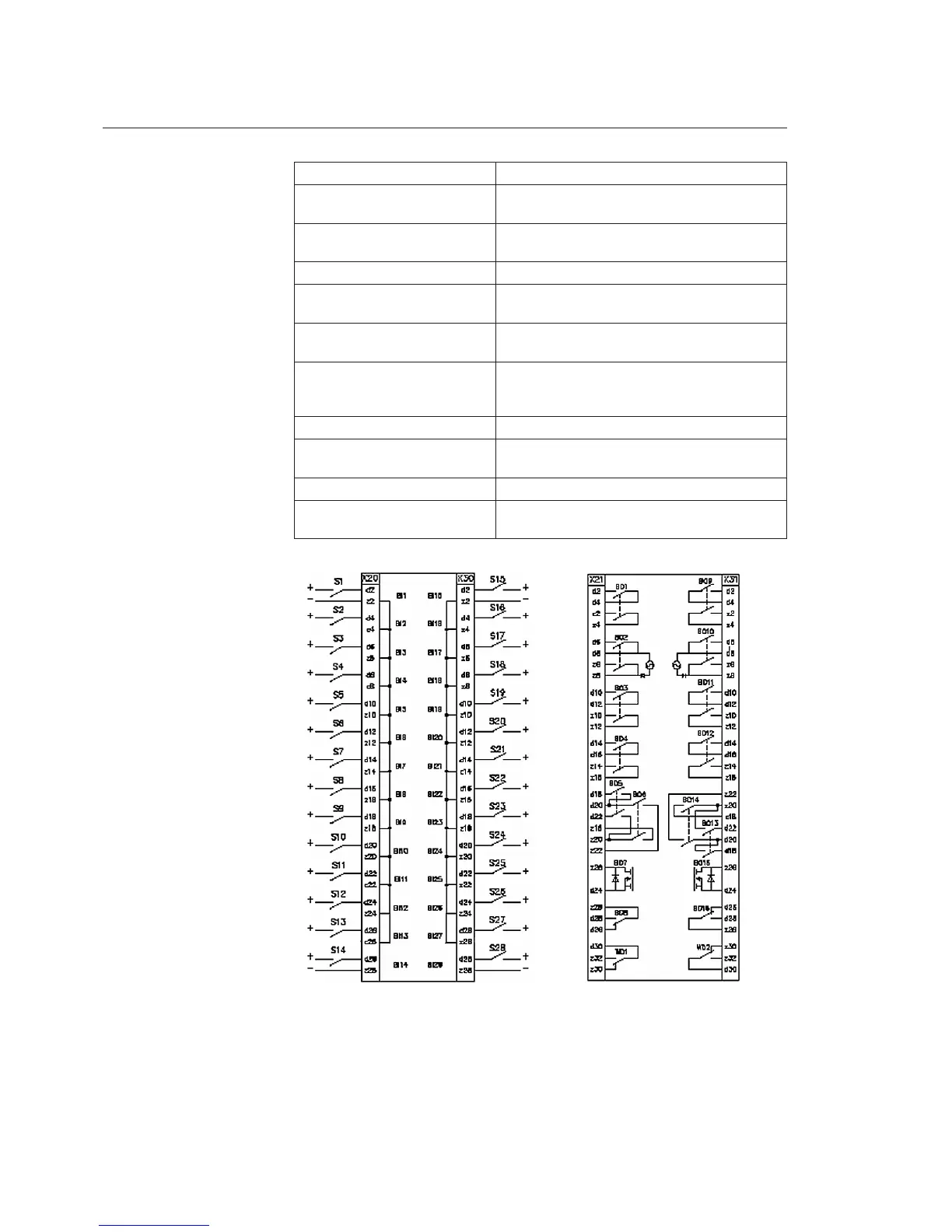

Fig. 18.2.2.1.-1 2 BIO3 modules with interconnected inputs and the static output
