6.8 .2 Shield connection at the sensor side
Remove the isolation of the sensor cable for the specifi c section at sensor side•
Insert into braid, close it and screw it to the mechanical fi xation•
The following order of the mechanical parts to be applied:•
Sensor• --> Mechanical Fixation --> Braid --> Screw
This shall result in a short and big area connection of the sensor cable shield to •
the chassis resp. GND
The braid shall have a similar or equivalent construction as shown on image •
(ring type)
S
e
n
s
o
r
b
a
s
e
Se
n
s
o
r
C
a
ble
Braid

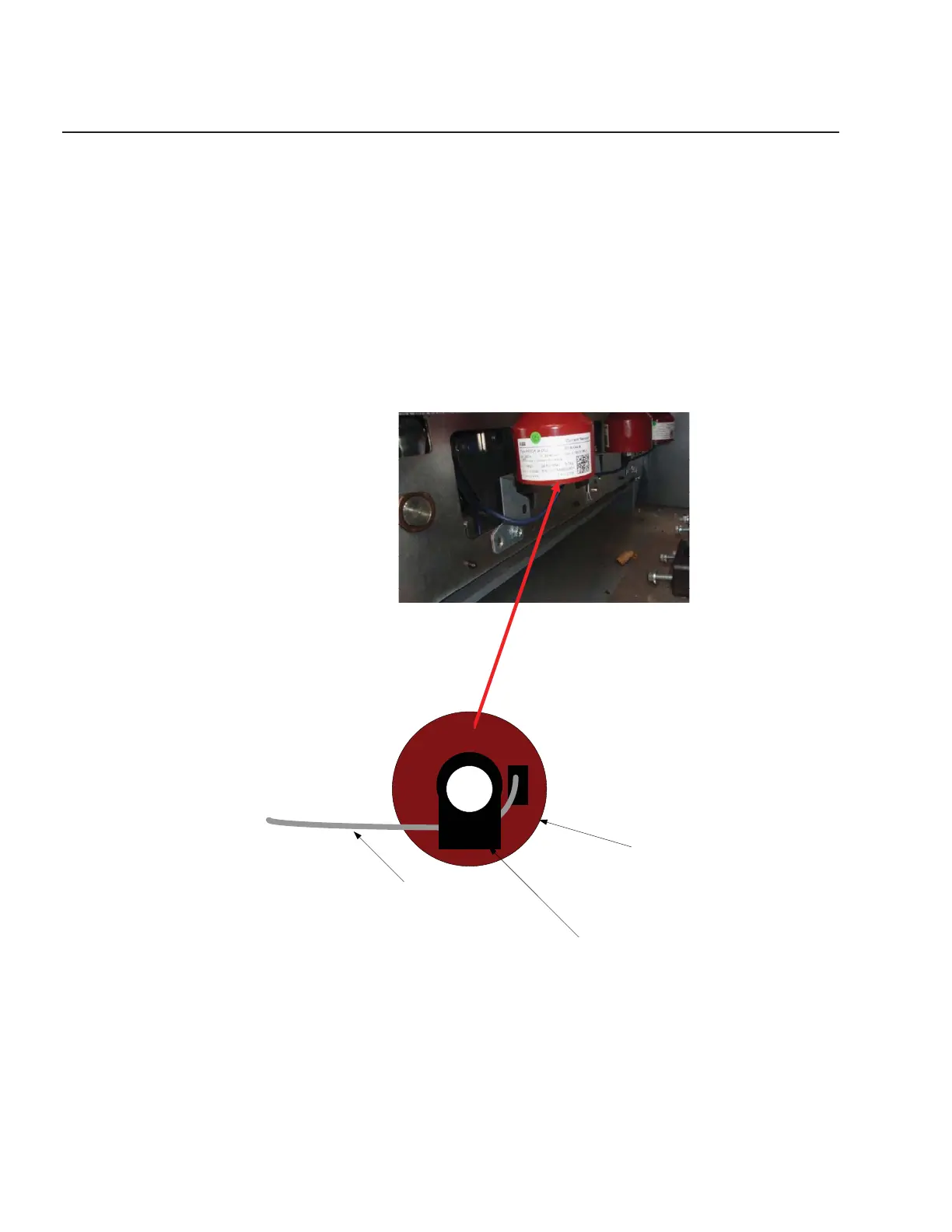

Fig. - Bottom view of sensor
