6.8 .3 Segregation of Voltage Indicator System

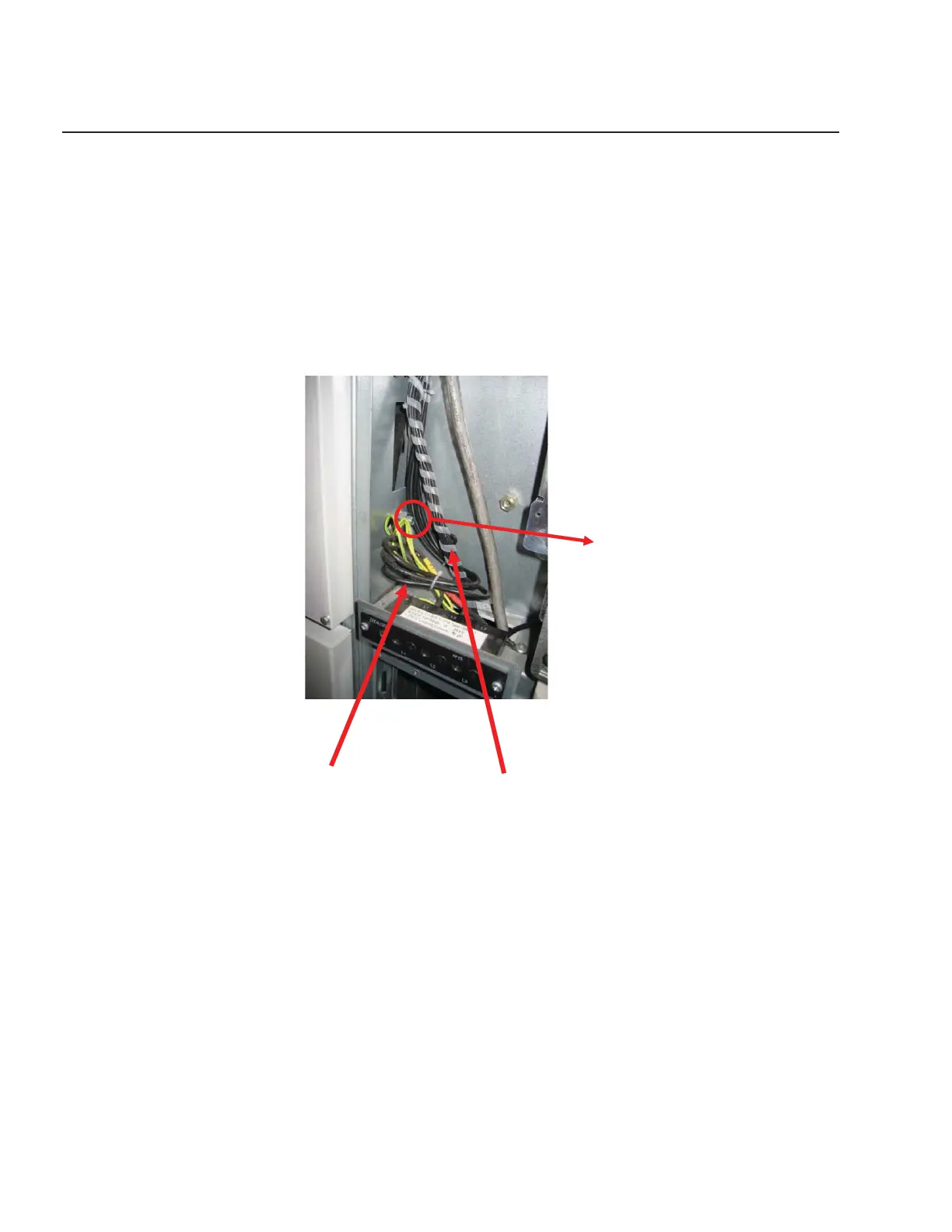

VI Cables to be moved on the right side in case of UniSec. See Picture•
A coupling path between cables for I/O , Power Supply and the cables for •
voltage indicator should be avoided.
A typical segregation of 40cm shall be considered•
Move Right to Segregate
VI Cables
I/O Signals
Installation and commissioning
