ABB RELION RET670 - Page 111

ANSI15000157-1-en.vsdx
1
18
19
7
6
5
4
3
2
8
20
21
22
1716151413121110
9
23
24
ANSI15000157 V1 EN-US

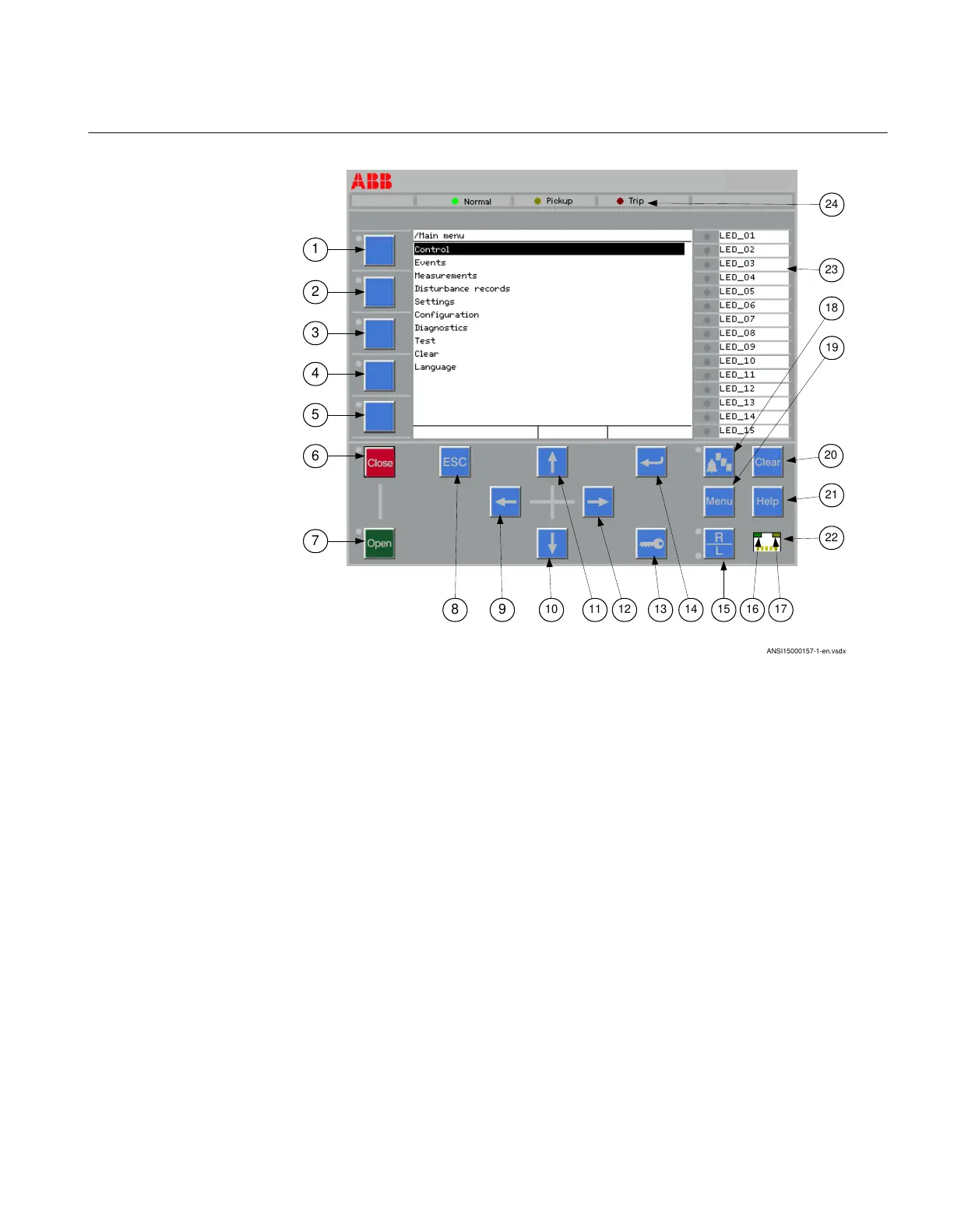

Figure 31: LHMI keypad with object control, navigation and command push-
buttons and RJ-45 communication port
1...5 Function button
6 Close
7 Open
8 Escape
9 Left
10 Down
11 Up
12 Right
13 Key
14 Enter
15 Remote/Local
16 Uplink LED
17 Not in use
18 Multipage
1MRK 504 163-UUS A Section 5
Local HMI
Transformer protection RET670 2.2 ANSI 105
Application manual
