7.5.2.4 Checking SMV data
1. On the SMV Receiving page, check the sampled values data that the relay
subscribes from the Ethernet network.
The left side of this page shows a list of devices that send SMV messages
to the relay. These devices that publish data for the relay are defined in the
relay configuration. The right side of the page shows the SMV data that the
relay receives from the network. The data set consists of value and quality
attributes. The received data has status indicators where green means all OK,
yellow warning and red error.

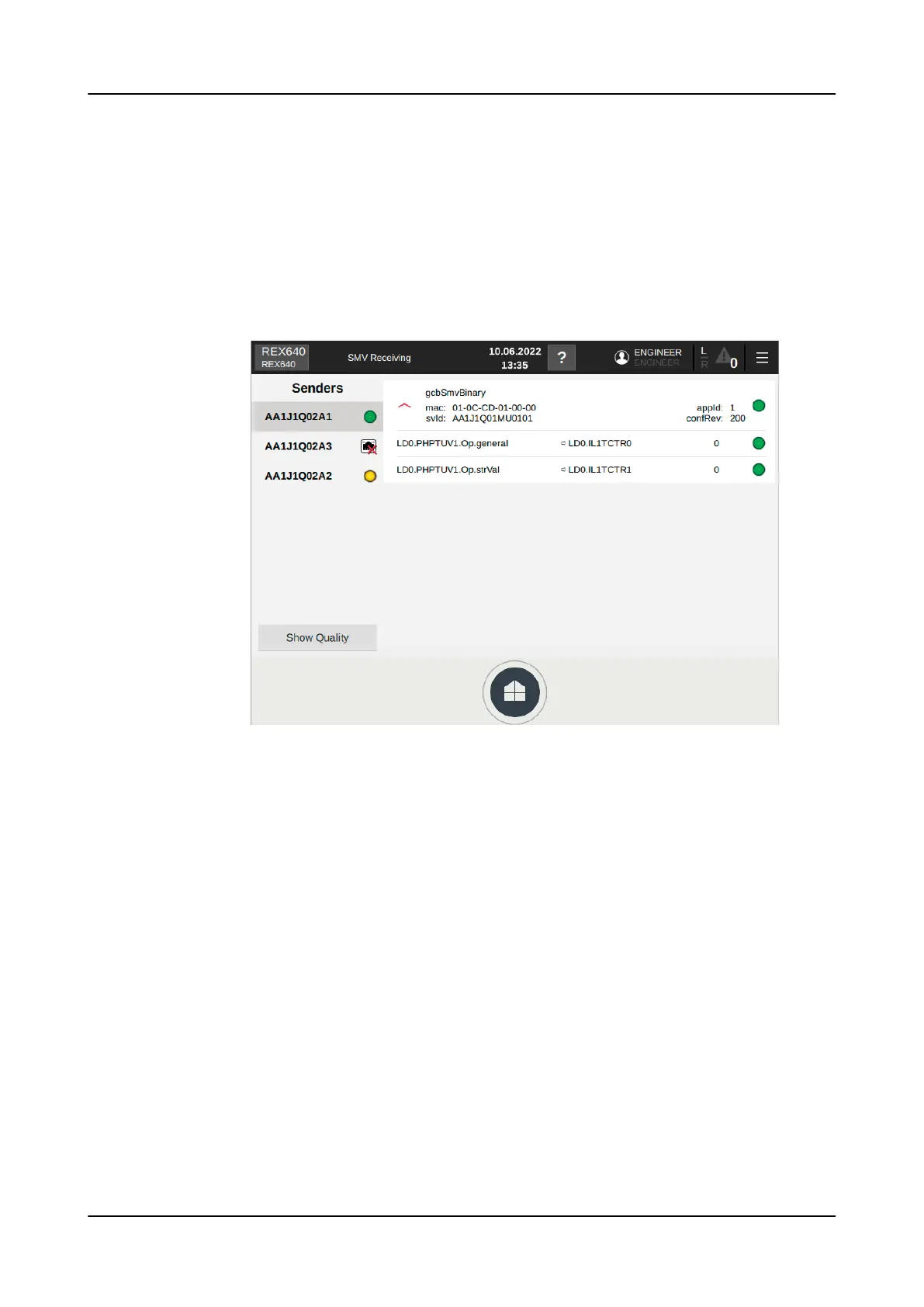

Figure 128: SMV Receiving page
1MRS759118 D
Commissioning
REX640
Operation Manual
147
