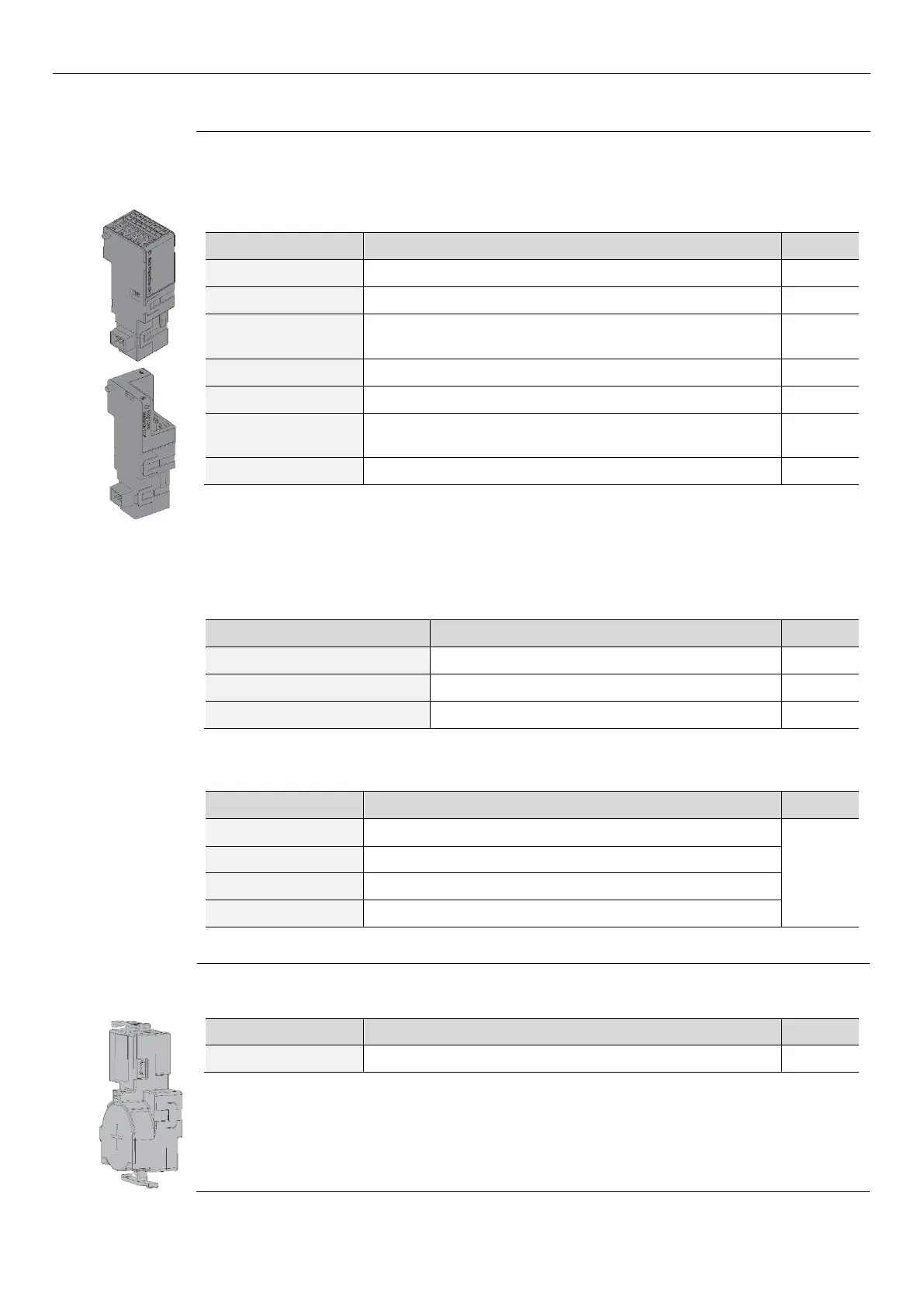

5 - Accessories and software
External
accessories
The functions of Ekip Touch can be expanded with additional accessories and external modules
with different capabilities and installation methods.
The main external modules are:
Name
Function
Page
Ekip Supply
Supply
130
Ekip Com
Communication (with various protocols)
131-147
Ekip Link
Internal network communication with proprietary ABB
protocol
151
Ekip Signalling 2K
Signaling with input/output
161
Ekip Signalling 3T
Signaling with analogue inputs
169
Ekip Synchrocheck
Measurement of voltage and synchronization between two
power sources
161
Ekip CI
Command module for motor applications
169
These modules can be connected to the Trip unit using the DIN rail Ekip Cartridge (page 127):
and only if is not equipped any internal module.
Other external modules and accessories, available with direct connection to the internal terminal
board or to the rear connectors are:
Name
Function
Page
Ekip Signalling 10K
Signaling with input/output
203
Ekip Multimeter
Display from the front of the panel
204
External neutral
Neutral protection with CB 3P
204
Supervision, configuration, and reporting functions are also guaranteed with additional modules
for temporary power and communication:
Name
Function
Page
Ekip TT
Power supply and testing
203
Ekip T&P
Power supply, communication, programming, and testing
Ekip Programming
Power supply, communication, and programming
Ekip Bluetooth Key
Bluetooth communication and programming
Internal
accessories
The modules listed in the following table connect to the Trip unit and are housed in a specific slot
inside the CB:
Name
Function
Page
Ekip Com
Communication (various protocols)
181
These modules can be connected to the Trip unit directly to the internal terminal board and only
if is not equipped any external module.
