ABB SACE Tmax XT2 User Manual

1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 162
Interface

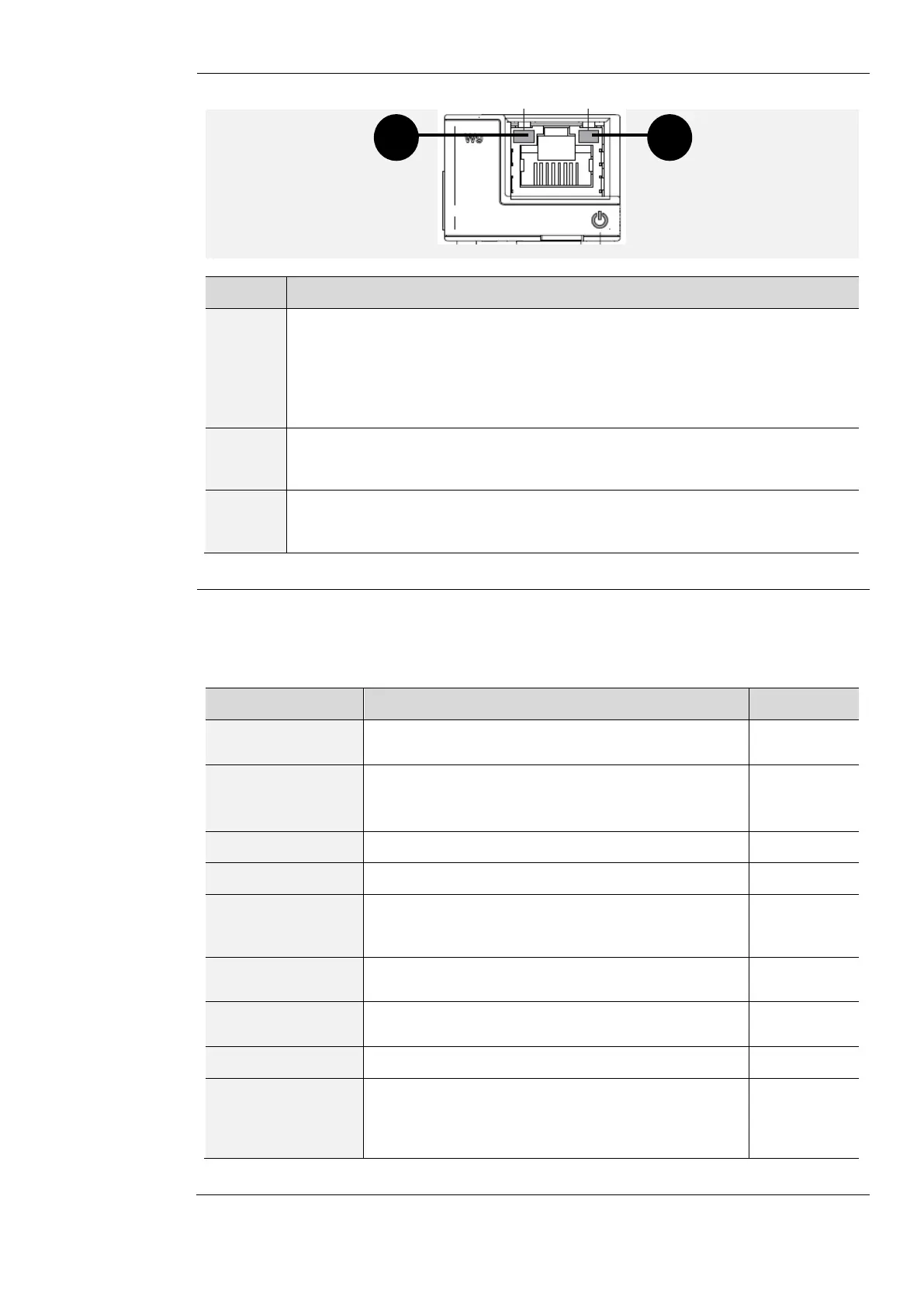

The module has three signalling LEDs:
Figure 42
LED
Description
Power
Reports ON status and correct communication with Ekip Touch:
 off: module off
 fixed or flashing light synchronized on power LED of Ekip Touch: module ON
and communication with Trip unit present
 flashing not synchronized with the power LED of Ekip Touch (2 rapid flashes
a second): module ON and communication with Trip unit absent
Link

Indicates status of the communication:
 off: incorrect connection, signal absent
 fixed light: correct connection
Activity

Indicates status of the communication:
 off: activity on line absent
 flashing: activity on line present (receiving and/or transmitting)
Configurations
on menu
Activating the local bus is required to start communication between the module and Ekip Touch
and is available in the Settings menu (page 114).
If the module is detected correctly by Ekip Touch, in the Settings Modules menu, the following
communication parameters can be configured:
Parameter
Description
Default
Enable
Switches on/switches off the communication between
module and server
Static IP address
ON
Defines whether the module has the dynamic IP
address (Off) or static IP address (On)
If = On all associated parameters are enabled
Off
Static IP address
Enables the static IP to be selected
0.0.0.0
Static Network Mask
Enables the subnet mask to be selected
0.0.0.0
Static Gateway
address
Enables, in the presence of several subnets, the
IP address of the node to be selected to which the
module is connected
0.0.0.0
SNTP client enabled
Permits enabling of SNTP distribution protocol of the
clock and synchronization signal
OFF
SNTP address
Server
Enables the network server to be set that supplies
SNTP
0.0.0.0
Password
Code required to record the module on Cloud
---
Remote firmware
update
Enables the module's firmware to be updated. Two
parameters are available:
 Enable, to configure the firmware download
 Automatic, to automate updating the module
OFF
Automatic
1
2
