4 Assembly and Installation
10 S4 D184B122U02
4 Assembly and Installation
4.1 Inspection
Before mounting the converter, check for mechanical damage due to improper handling during shipment.
All claims for damages are to made promptly to the shipper prior to installation.
4.2 Mounting the Converter
The installation site for the converter must essentially be free of vibrations, see Specifications. The listed am-
bient temperature limits between -20 °C and +60 °C are to be observed. The max. signal cable length be-
tween the converter and the flowmeter primary for the standard design is 50 m, for designs with preamplifiers
200 m may not be exceeded.
Field Mount Housing
The housing is designed for Protection Class IP 67 (EN 60529). The housing is mounted using 4 screws.
Dimensions see Fig. 1.
Exchangeability of the Converter
The function of the converter module for all flowmeter sizes is identical so that it can be exchanged without
problems. Check that the supply power and the in- and output functions are the same. After the exchange,
the meter location parameters are automatically uploaded into the converter.
See Information Chapter 9.2.
Information!
When selecting an installation location assure that the converter is not subjected to direct sunlight. The am-
bient temperature specifications are to be observed. When it is impossible to avoid direct sunlight, a sun
shade is required.

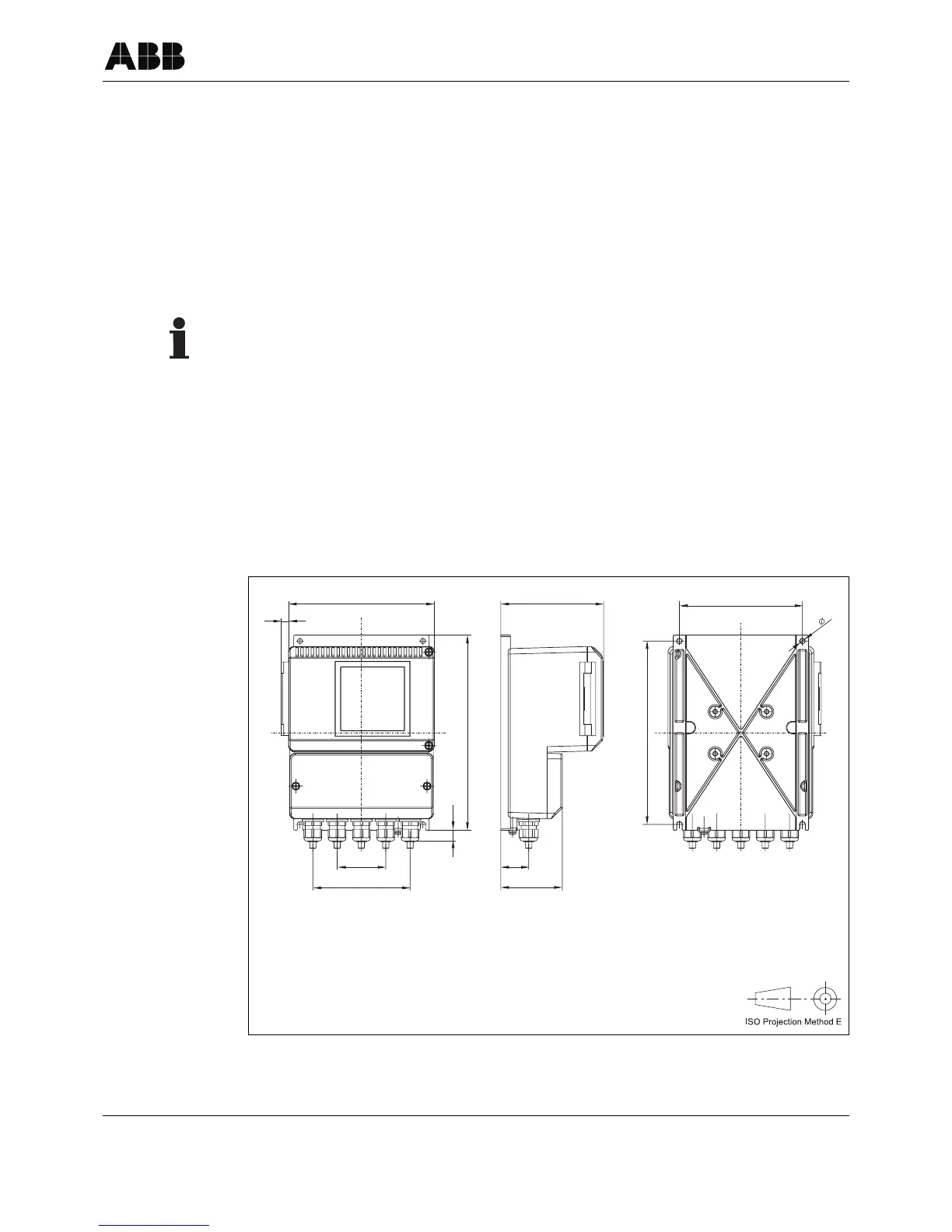

Fig. 1: Dimensions, Converter Housing
265
198
10
14.5
132
66
139.7
38
83.5
167
249
7
Field Mount Hsg. with Window
Cable Connector M20 x 1.5
Mounting Dimensions
1)
Mounting holes for 2” pipe mounting.
Pipe mounting kit available upon re-
quest.
1)
1)
1)
1)
