44 S4 D184B122U02
c) „Contrans I“ Using FSK-Modem (Notebook/Desktop)
8.5 PROFIBUS PA
This section of the Operating Instruction contains information for the converter with the Communication
PROFIBUS PA option.
The converter is designed to be connected to a Segment Coupler DP/PA as well as the ABB Multibarrier
MB204.
The PROFIBUS PA data link in the FSM4000 conforms to Profile 3.0 (Fieldbus Standard PROFIBUS, EN
50170, alias DIN 19245[PRO91]). The transmission signal of the converter corresponds to the IEC 61158-2
requirements. The manufacturer specific PROFIBUS PA Ident-No. for the FSM4000 is: 078C hex.
The instrument can also be operated using PROFIBUS Standard Ident Numbers 9700 hex and 9740 hex.

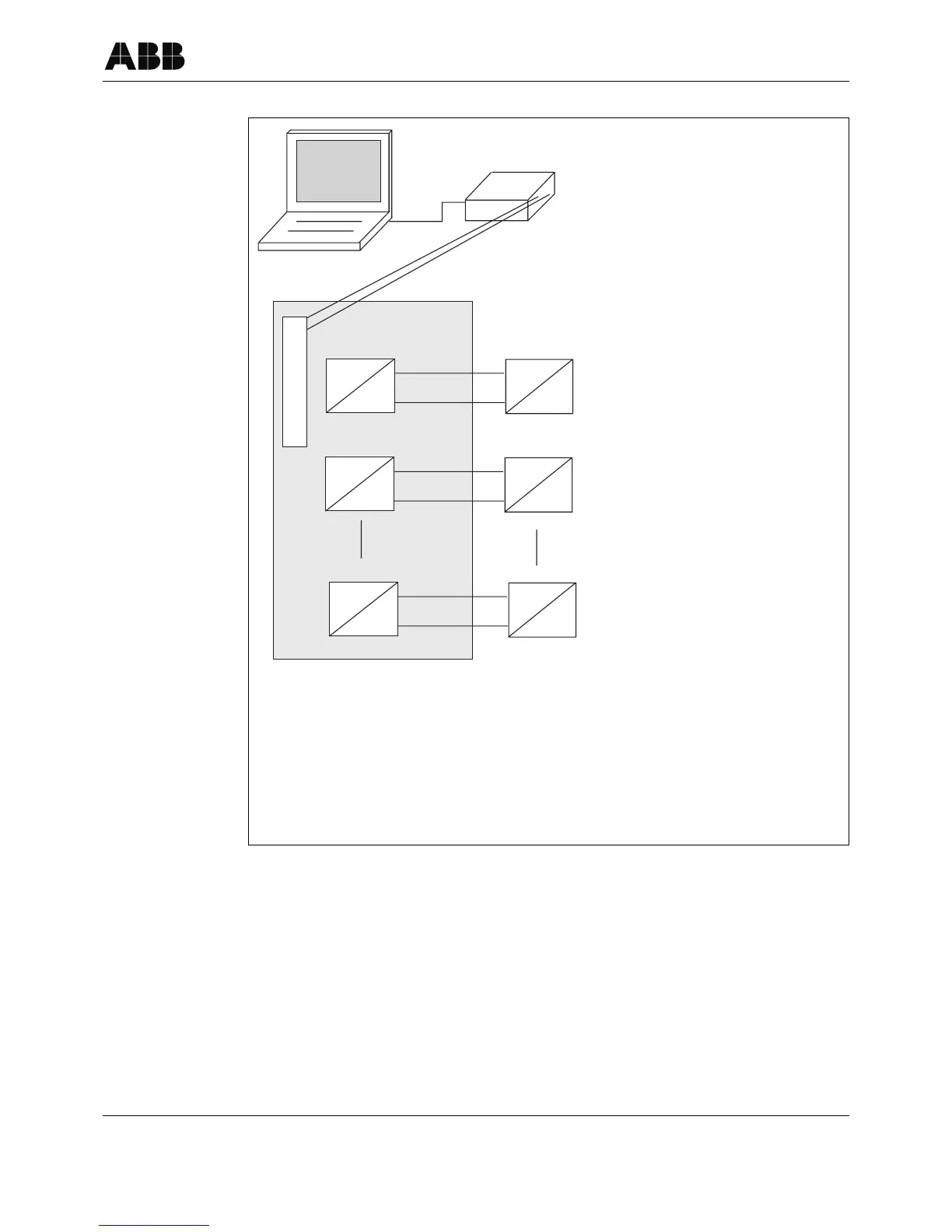

Fig. 18: Connections Using „Contrans I“
SMART
VISION
RS232
Transmitter Power Supply
Field Instrument
4..20 mA
FSK
FSK-Bus-Coupler
Transmitter Power Supply
Address “0”
Field Instrument
4..20 mA
Transmitter Power Supply
Address “0”
Field Instrument
4..20 mA
Max. 1200 Instruments
Contrans-I-Module Rack
Address “0”
SMART VISION
HART-FSK-Modem
Galvanic isolation, Ex-Protection
[EEx ib] incl. connection cable
4/2 mm and 4/4 mm
or
HART-FSK-Modem
Clip on version,
Galvanic isolation with
alligator clips
Module mount 8 unit
8 plug in locations for Contrans I-Modules.
Isolation protection of the supply power,
modules and signal circuit. Process up to
16 Ex- or Non-Ex signals
or
Module Rack 16unit / 21 unit
16/21 plug in locations for Contrans I-
Modules. Isolation protection of the supply
power, modules and signal circuit. Process
up to 31/42 Ex- or Non-Ex signals,
redundant power supply with alarm
contact.
FSK-Bus-Coupler
for 16, 21, 32 channels
FSK-Bus design with Contrans I-Modules
in a module rack, bidirectional transmission
of the FSK signals per HART-Protocol,
economical, centralized operation,
communication with intelligent field
instruments using SMART VISION.
