2 Safety Information
D184B122U02 S4 7

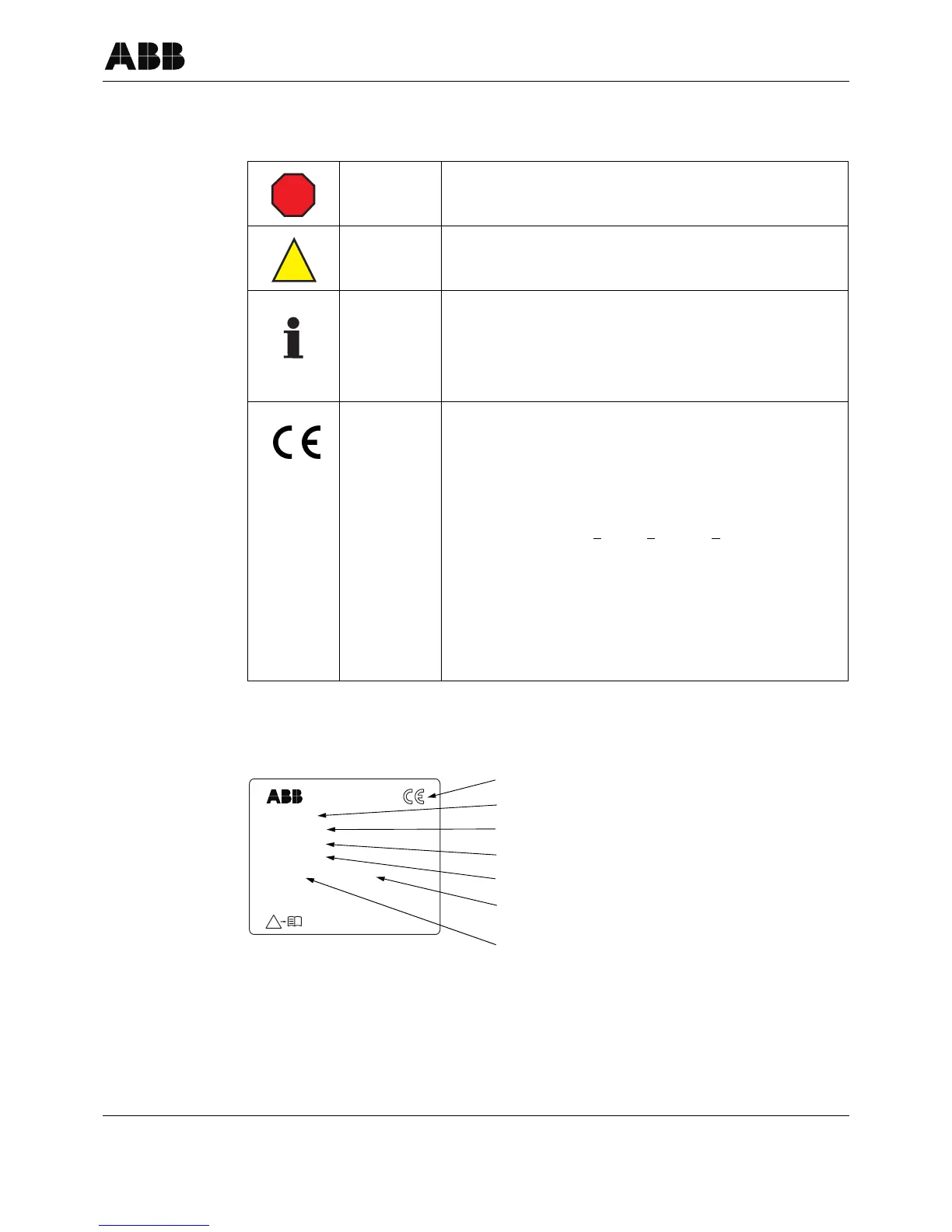

2.1.4 Safety Marks, Symbols, Type and Factory Tags and CE-Identification
All safety marks, symbols and the factory and type tags should be maintained in a readable state and pro-
tected from damage or loss. Note the following generalized information:
2.1.5 Type Tag Specifications
The type tag is located on the converter housing.
Warning! Information indicating that a risk or danger exists which could result in
serious or fatal injuries to personnel.
Attention! Information indicating that a dangerous situation may exist. If it is not
avoided, the product or an item in its vicinity may be damaged.
Information! The symbol „Information“ indicates a user tip or other important infor-
mation, which if ignored, could result in a loss of operating ease or ad-
versely affect system functionality. (Not an indicator for a dangerous/
damaging situation!)
Example: „Written C-Routines for these may be found on the Support
Diskette
CE-Mark The CE-Mark identifies compliance of the instrument with the following
directives and the fulfillment of the basic safety requirements:
• CE-Mark on the type tag (on the converter)
– Conformity with the EMC-Directive 89/336/EWG
– Conformity with the Low Voltage Directive 73/23/EWG
• CE-Mark on the factory tag (on the flowmeter primary)
– Conformity with the P
ressure Equipment Directive (PED/DGRL)
97/23/EU
No CE-Mark is required on pressure equipment when:
– the max. allowable pressure (PS) is less than 0.5 bar.
– there are minimal pressure risks (meter sizes ≤ DN 25 [1"]).
A certification procedure is not required.
– the instrument is installed to meter water in the Water/Waste Wa-
ter sector. Applies to meter sizes >DN 600 / 24”.
The following specifications are contained on the type tag:
• CE-Tag per EU-Conformity
• Model number of the instrument
• Order number
• Supply power– voltage range / frequency
• Power used by the converter and flowmeter primary
• Design variant based on the ordering information with/
without HART-Protocol or PROFIBUS PA
• Design variant based on the ordering information
active (24 V- pulse at output)
passive (application of 24 V DC at the terminals)
(a change between active or passive can be made at the
meter location, see Chapter 9.9)
STOP
!
!
i
!
i
Converter S4
Model-No.:
Pulse output / Communication:
Order-No.:
Power supply:
S : <45 VA
max
Rem.: Do not connect EEx-primaries
ABB Automation Products GmbH
37070 Göttingen
