38 CI/FSS/FSV430/450-EN Rev. D | SwirlMaster FSS430, FSS450 VortexMaster FSV430, FSV450
7 Operation
7.1 Safety instructions
If there is a chance that safe operation is no longer possible,
take the device out of operation and secure it against
unintended startup.
7.2 Parameterization of the device
The LCD indicator has capacitive operating buttons. These
enable you to control the device through the closed housing
cover.
NOTE
The transmitter automatically calibrates the capacitive
buttons on a regular basis. If the cover is opened during
operation, the sensitivity of the buttons is firstly increased to
enable operating errors to occur. The button sensitivity will
return to normal during the next automatic calibration.
7.2.1 Menu navigation
M10145-01
1
2
5
Menu
3
4
5
Exit Select

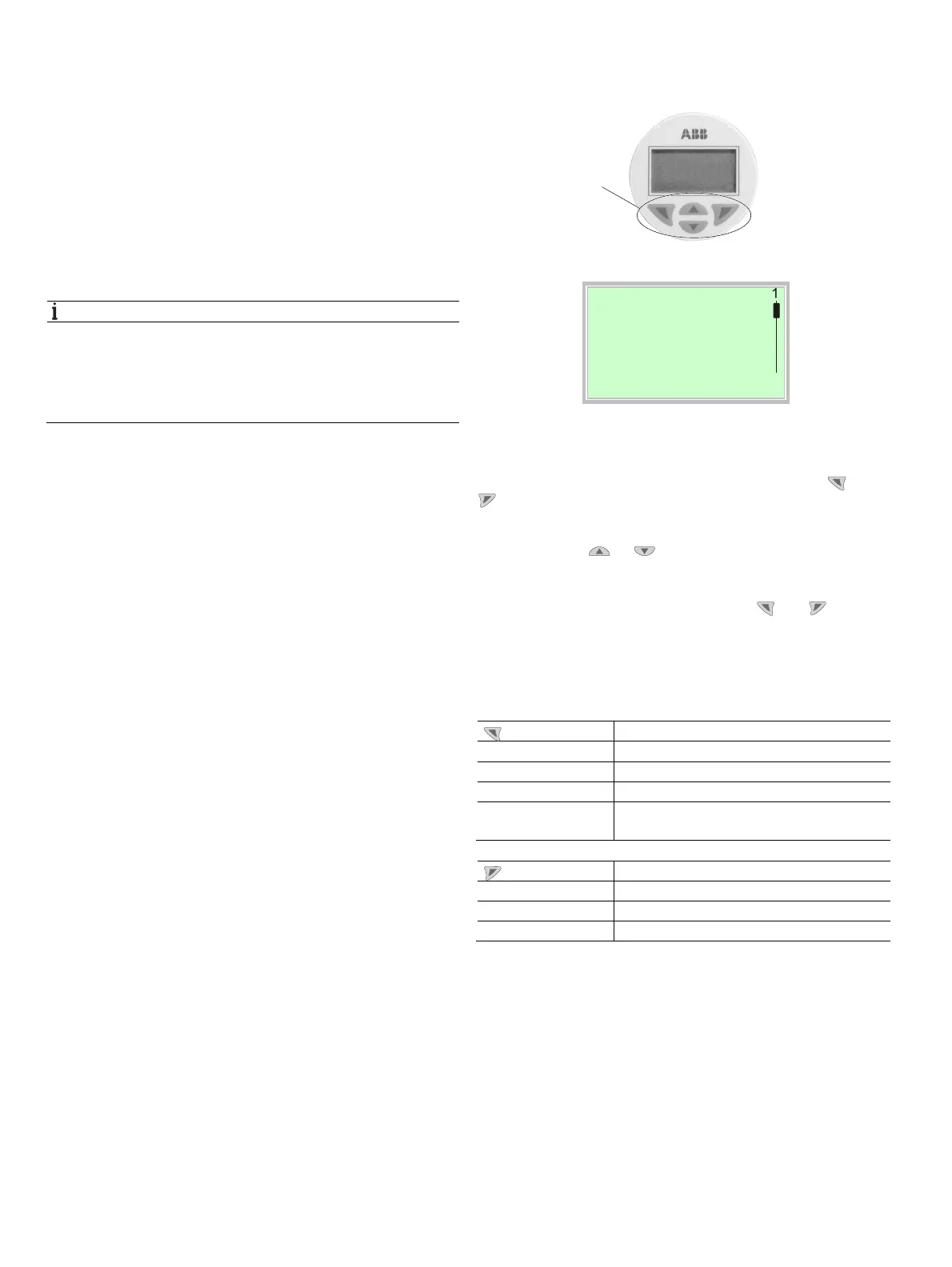

Fig. 32: LCD display
1 Operating buttons for menu navigation
2 Menu name display 3 Menu number display
4 Marking to indicate the relative position within the menu
5 Display of the current function of the operating buttons and
You can use the or operating buttons to browse
through the menu or select a number or character within a
parameter value.
Different functions can be assigned to the and
operating buttons. The function that is currently assigned 5
is shown on the LCD display.
Operating button functions
Meaning
Exit
Exit menu
Back
Go back one submenu
Cancel
Cancel parameter entry
Next
Select the next position for entering numerical
and alphanumeric values
Meaning
Select
Select submenu / parameter
Edit
Edit parameter
OK
Save parameter entered
