3 Product identification
3.1 Name plate

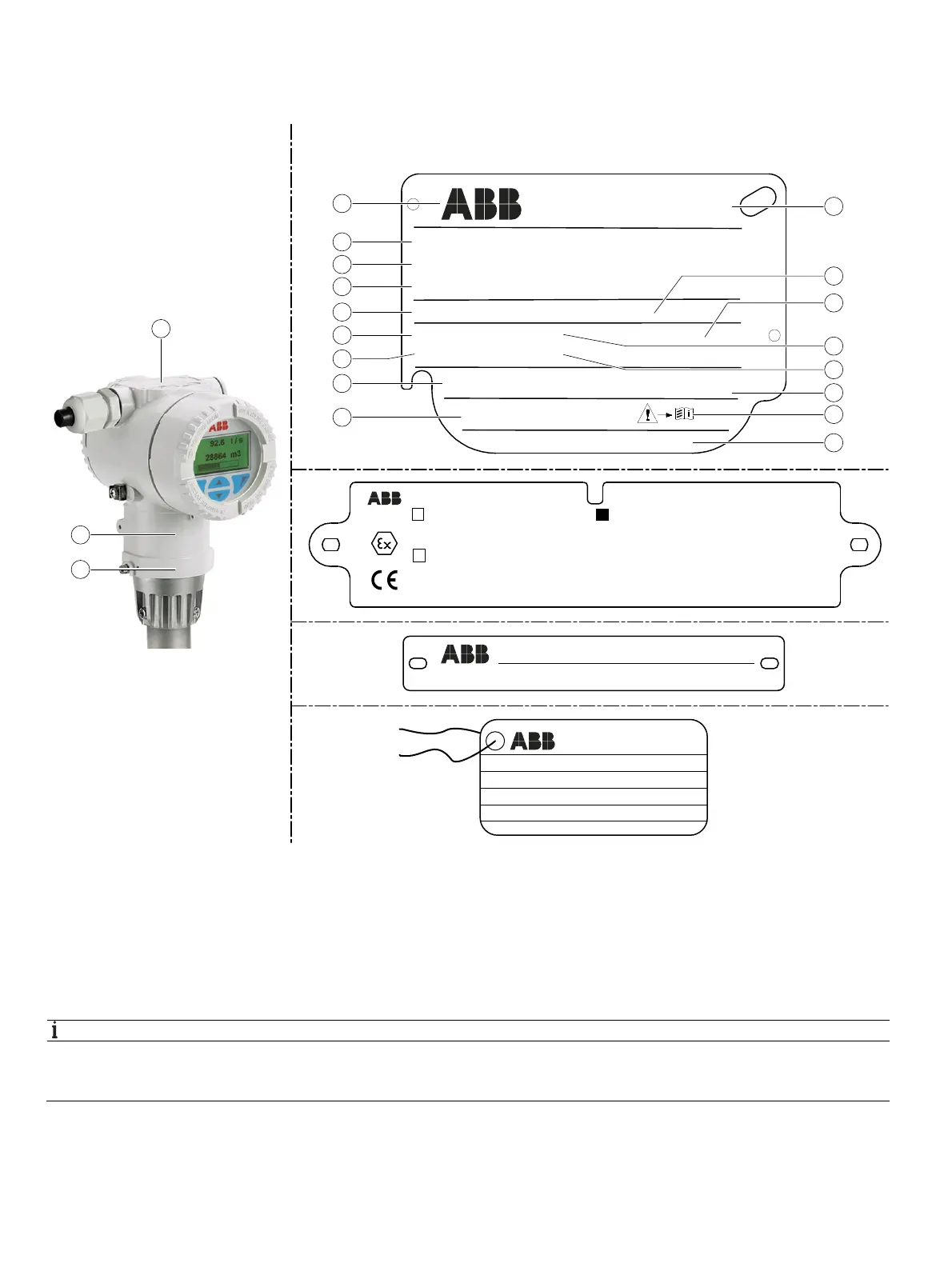

Fig. 4: Types and tag plates (example)
A Name plate B Special data plate with Ex-marking C Plate with measuring point tagging (tag number)
D Tag plate with customer data made from stainless steel (optional)
1 Product name 2 Firmware version 3 Maximum flow at nominal diameter 4 Nominal diameter 5 Current output
6 Maximum ambient temperature 7 Symbol: Read instructions before use 8 Country of manufacture 9 Date of production
0 Maximum measuring medium temperature k IP rating l Pressure rating m Power supply n Manufacturer address o Model
number
P Serial number q Manufacturer logo
NOTE
The device can optionally be delivered with a tag plate D made from stainless steel and fastened with wire. Customer
specific text that has been specified in the purchase order is laser printed on the tag plate.
For this, 4 lines of 32 characters each are provided.
