9.3.4 IEC 61850 - Interface
Problem Possible Causes Solution
Device blocking not possible
or
Parameter adjustment not
possible
1. Device was blocked
locally
2. Parameters in IEC 61850
system not identical to
parameters in
SYNCHROTACT 5
Adjust SYNCHROTACT 5 to
READY and afterwards block
by the IEC 61850-interface.
SNTP time synchronization
does not function
1. Time synchronization
blocked
2. SNTP-Server-
configuration wrong
1. Enable time synchronization
2. Check/change SNTP
Server configuration and
power-cycle
Configuration of
communication interface not
possible
1. Check Ethernet cable to
IEC 61850-interface
2. Configuration IP-address
wrong
1. Check Ethernet cable and
connections
2. Check IP-address and
Subnet mask at PC (Notice:
Service IP-Address is
relevant)

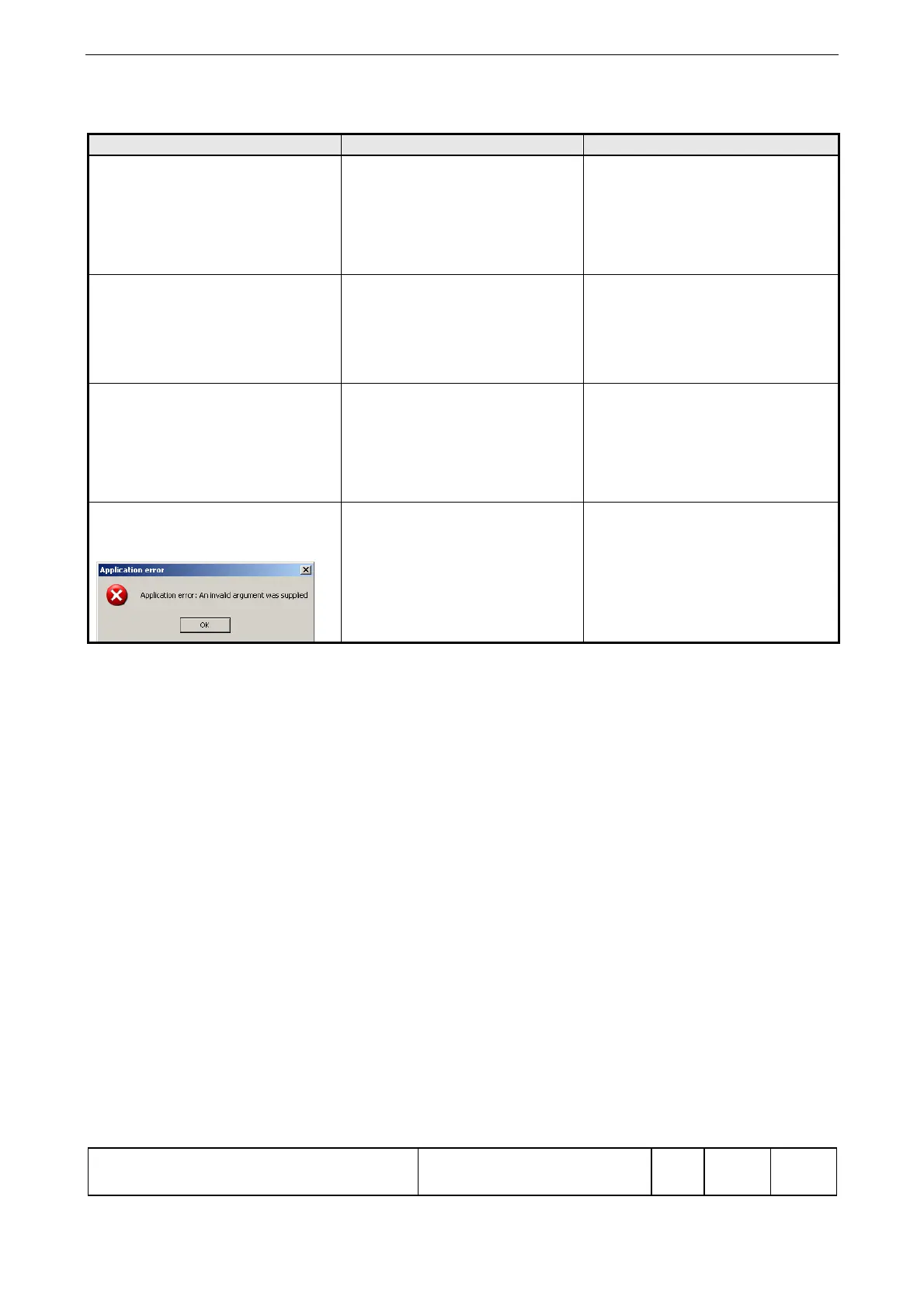

Following error message is
shown upon start of the scan
function.
The firewall blocks the UDP-
Ports 5002 and 5003, which
are used by the scan function
Organize ports release on PC
