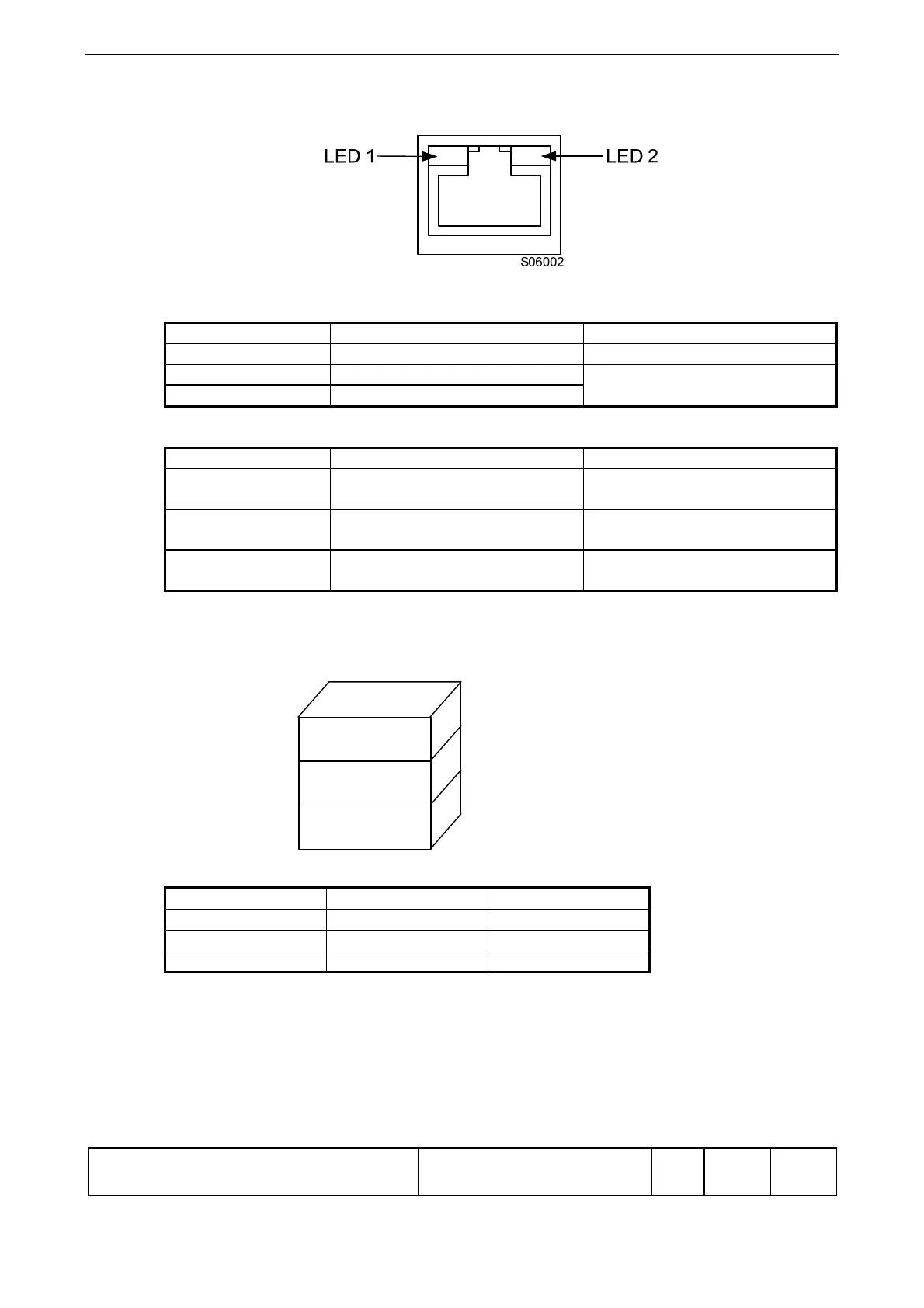

9.3.5 Status display Ethernet
LED 1: Link indicator
Color Description Remarks
Dark no link
Yellow Link with 10 Mbps
Transfer speed is defined by
Green Link with 100 Mbps
the host
LED 2: Activity indicator
Color Description Remarks
Dark No activity Acutally no data transfer
running
Yello Half-Duplex Transfer Data is transmitted or received
in series
Green Full-Duplex Transfer Data can be transmitted or
received simultaneously
9.3.6 Status display Modbus
Function Description Color
BUS ERROR LED 0 red
BUS ACTIVE LED 1 green
POWER LED 2 green
BUS ERROR
BUS ACTIVE
POWER
LEDs
