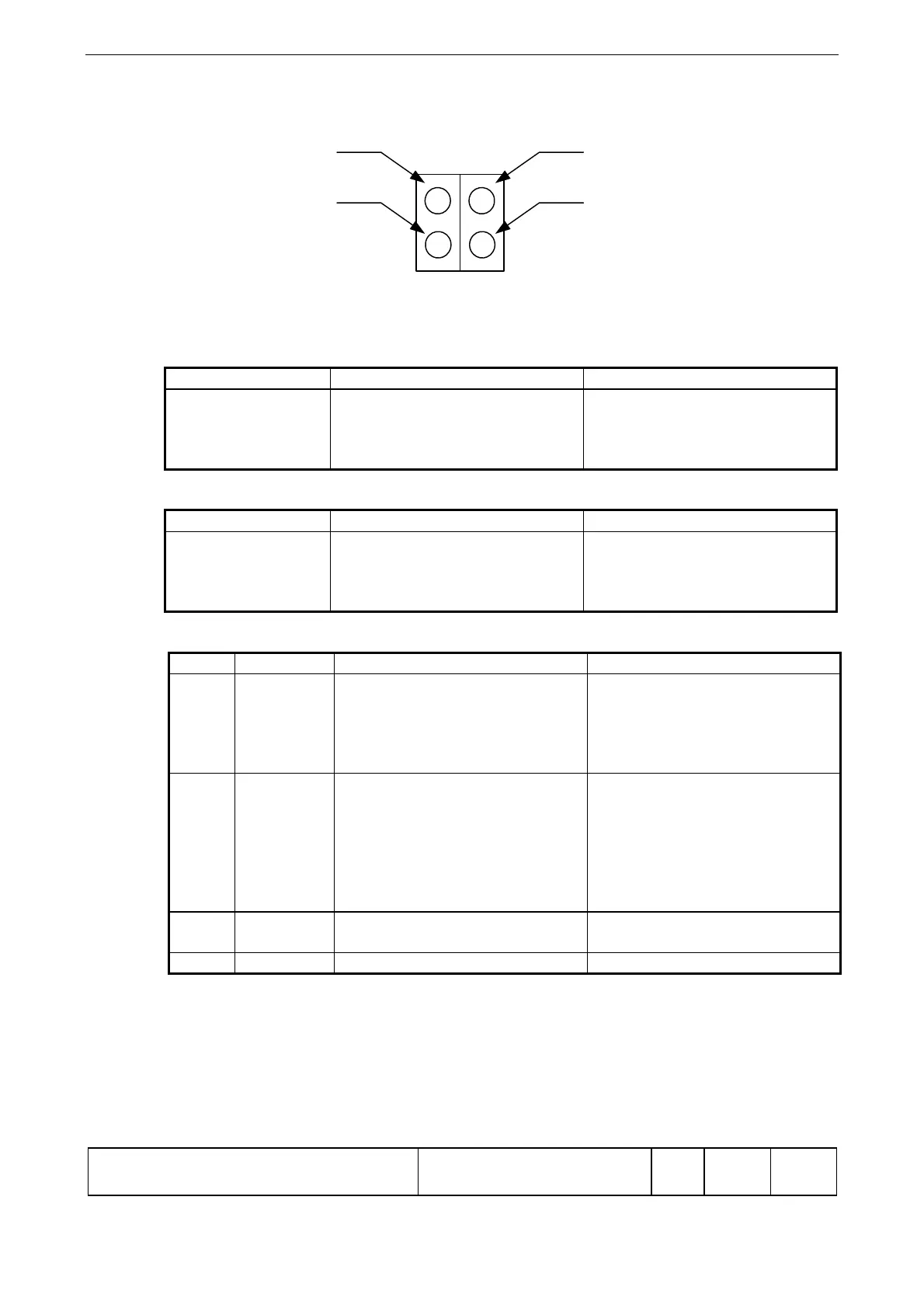

9.3.7 Status display Profibus
LED 1: Not used
LED 2: Connection indicator
Color Description Remarks
Green Indicates that
SYNCHROTACT 5 is on-line
green = on-line
(communications board
enabled)
dark = not on-line
LED 3: Off-line
Color Description Remarks
Red Indicates that
SYNCHROTACT 5 is off-line
red = off-line
(communications board
blocked)
dark = not off-line
LED 4: Field bus diagnosis
Color Frequency Description Remarks
Red 1 Hz Configuration error: IN and/or
OUT set length during
initialising of the module is not
the same as the set length on
configuration of the network.
Error on the fieldbus side
Red 2 Hz Error in the user parameters:
the set length or set contents of
the user parameters during
initialising of the module is not
the same as the set length or
set contents on configuration of
the network.
Error on the fieldbus side
Red 4 Hz Error during initialisation of the
Profibus communication ASICs.
Error on the fieldbus side
Off -- No diagnosis present Normal status
LED 1 LED 2
LED 3LED 4
