ABB SYNCHROTACT 5 User Manual

Operating Instructions SYN 5201/SYN 5202
Document No Art Part Language Revision page
abb
ABB Switzerland Ltd
3BHS109762 E01
en D 116
Template: CHIND Techn doc stand, A4 P de, R1.DOT; Filename: 3BHS109762E01 D.doc; Print: 12/6/2011 5:48:00 PM; Save: 12/1/2011 2:37:00 PM; CHIND No. 3BHS109763 ZAB D14 Rev. -; I-Q

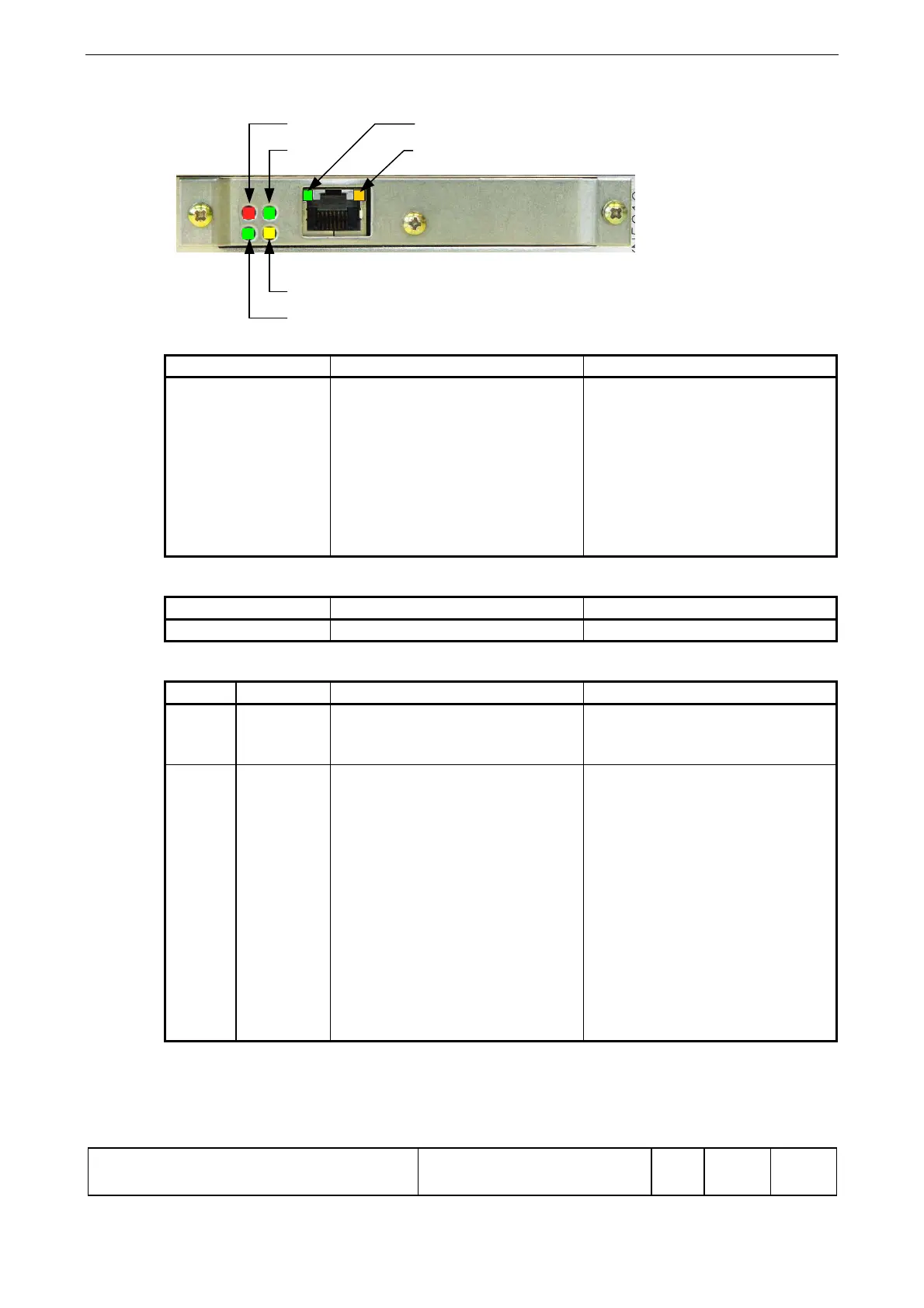

9.3.9 Status display IEC 61850
LED 1: Error
Color Description Remarks
Red Indicates that an internal error
occurred on the IEC 61850,
communication module
No application present or
processor error
1. Turn off and back on
auxiliary voltage
2. Check if the
communication module
has the right software
Otherwise communication
module is defective
LED 2: Supply
Color Description Remarks
Green Supply OK Normal state
LED 3: Transmission indication
Color State Description Remarks
Yellow flashing Indicates data traffic to the
IEC 61850 communication
module
SYNCHROTACT 5 –
communication is functioning
Yellow off No data traffic to the
IEC 61850 communication
module
SYNCHROTACT 5 –
communication does not
function
1. Turn off and back on
auxiliary voltage
2. Check if the
communication module
has the right software
3. Check the plug
connection between
communication module
and busprint SYN 5010
Otherwise communication
module is defective
LED 1
LED 2
LED 4
LED 3
LED 5
LED 6
