Operating Instructions SYN 5201/SYN 5202
Document No Art Part Language Revision page
abb
ABB Switzerland Ltd
3BHS109762 E01
en D 29
Template: CHIND Techn doc stand, A4 P de, R1.DOT; Filename: 3BHS109762E01 D.doc; Print: 12/6/2011 5:48:00 PM; Save: 12/1/2011 2:37:00 PM; CHIND No. 3BHS109763 ZAB D14 Rev. -; I-Q

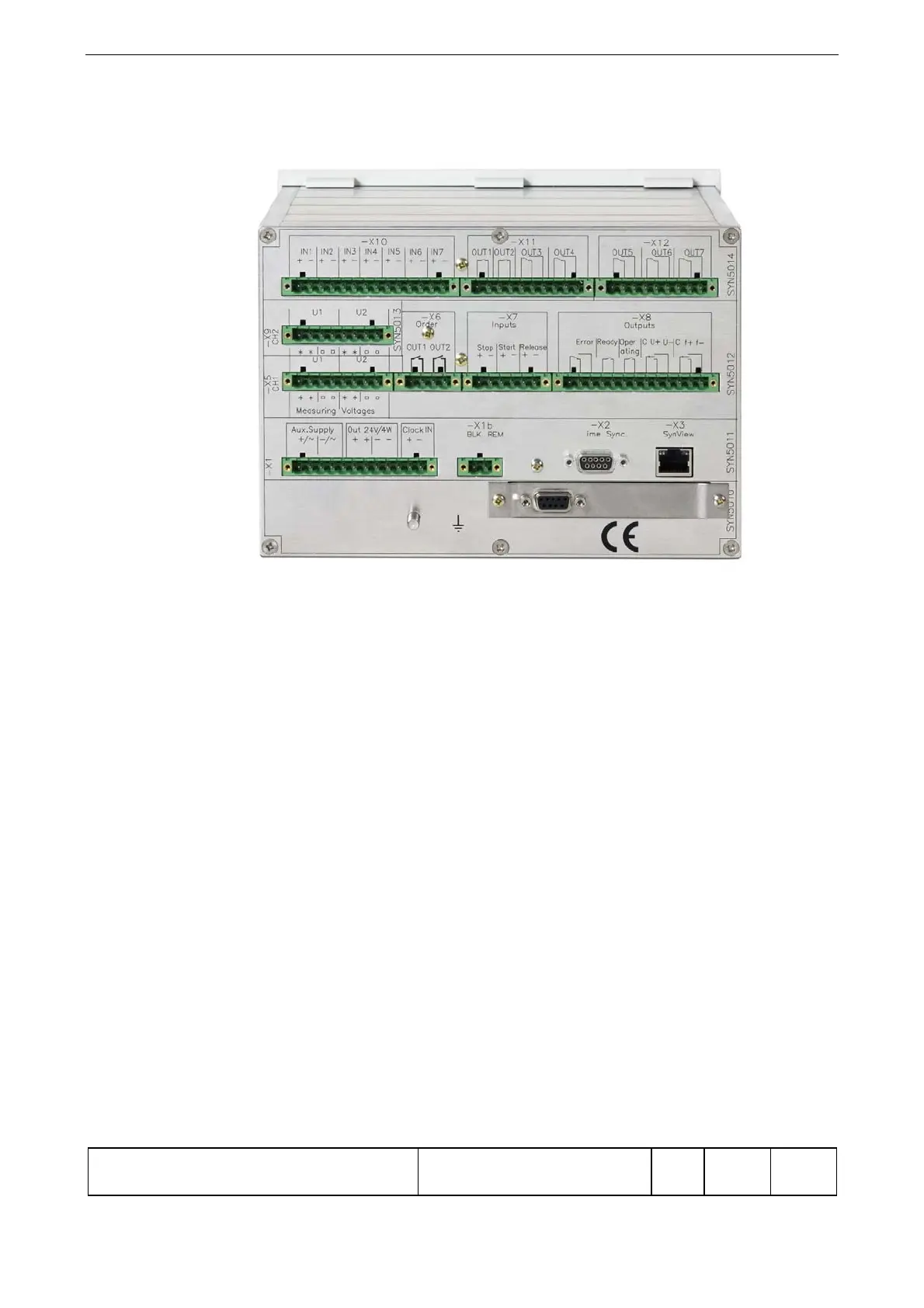

3.4 Printed circuit boards
The devices consist of the following printed circuit board modules
SYN 5010 communications board (option)
Mount of a slot for the operating remote control interface.
SYN 5011 processor and electronics power supply
Electronics power supply 24 to 250 VDC and 100 to 230 VAC
Processor and memory modules
A/D converter
SYN 5012 basic I/O unit
Measuring inputs
Digital inputs for Start, Stop, Release dead bus
Digital outputs (relay contacts) for paralleling command, adjusting commands, signalling
(Ready, Operating, Error).
SYN 5013 synchrocheck
Synchrocheck with separate measuring inputs, processor and command relay
SYN 5014 I/O expansion (option)
7 configurable digital inputs
7 configurable digital outputs
For the use of several parameter sets or individually configurable signals
SYN 5015 control/display
Connecting board behind the front cover with control unit and status displays
