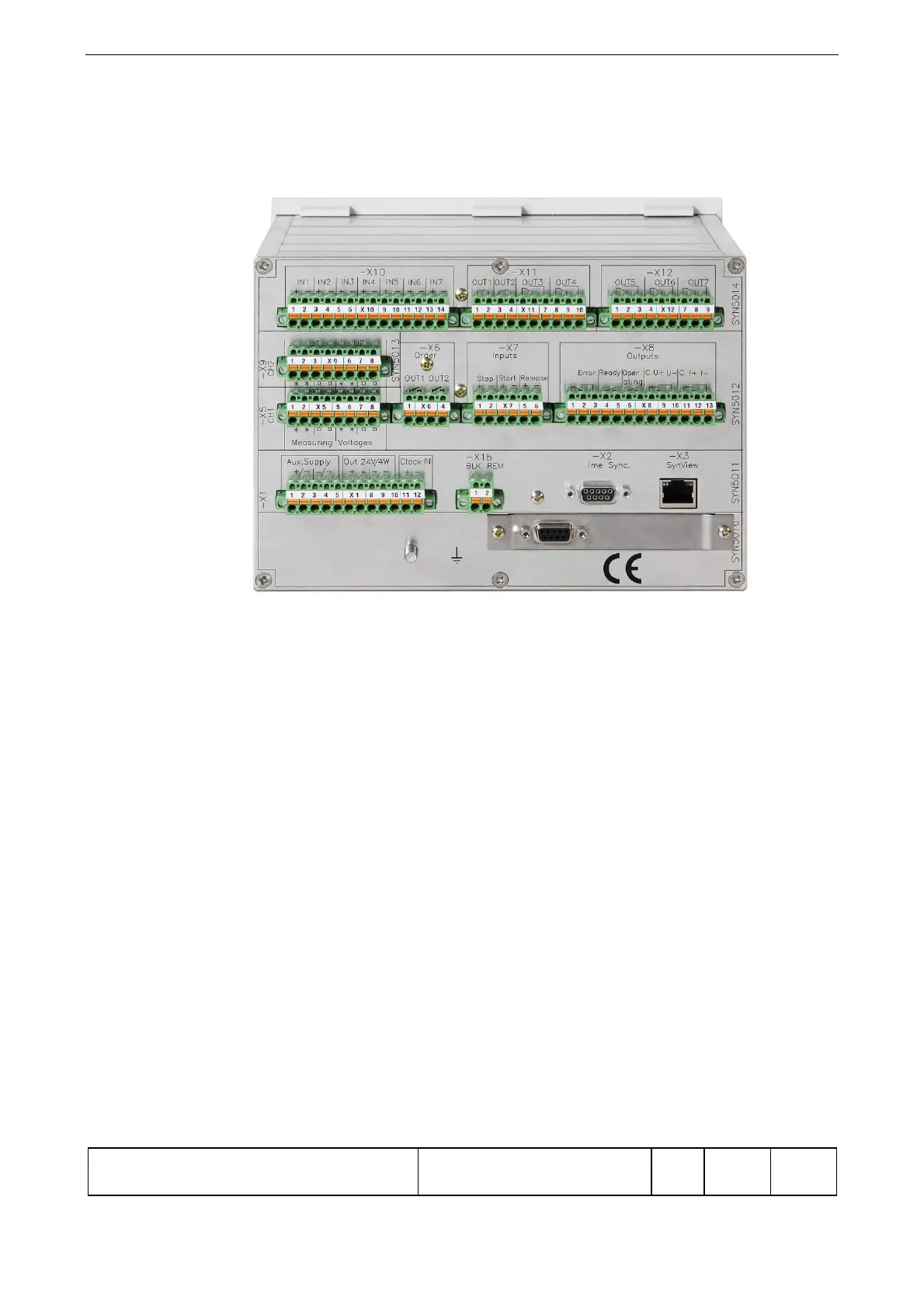

3.3 Rear of unit
The electrical connections are made on the rear of the unit by means of screwed
connectors and spring-clip terminals.
Measuring inputs
With SYN 5202, the measuring inputs are passed to a separate connector for each
channel. Each input is connected by means of double terminals.
Paralleling command output
The command output is actuated by one safety relay per channel with forcibly guided
contacts. The relay contacts of channels 1 and 2 are internally wired in series and are
passed to one connector.
Digital inputs and outputs
All inputs and outputs are potential-isolated from one another and from the electronics.
SynView connection
An Ethernet interface is provided for the connection of SynView
Time sync. connection
A connection for time signals from a clock is provided
Blocking input for operating remote control
With this input, the operating remote control (interface) can be blocked.
Communications connection (option)
SYNCHROTACT 5 can optionally be equipped with a connection for operating remote
control (see type code, section 3.1).
