7.4.3 SYN61850Config User Manual
Projects
All data which are specific for a IEC 61850-interface, can be saved in a project-file, resp.
retrieved from there.
Controller Handling
With a right mouse-click on the controller directory and subsequent selection of „Add
controller to project“, new SYNCHROTACT 5-devices can be added to a project. For
that purpose, the IP-address of the device which needs to be configured, is entered.
Scanner
Under the menu „Tools/Scan controllers“, a network can be scanned for
SYNCHROTACT 5 – devices. If the desired device is listed, it can be added to the
project. („Add to project“).

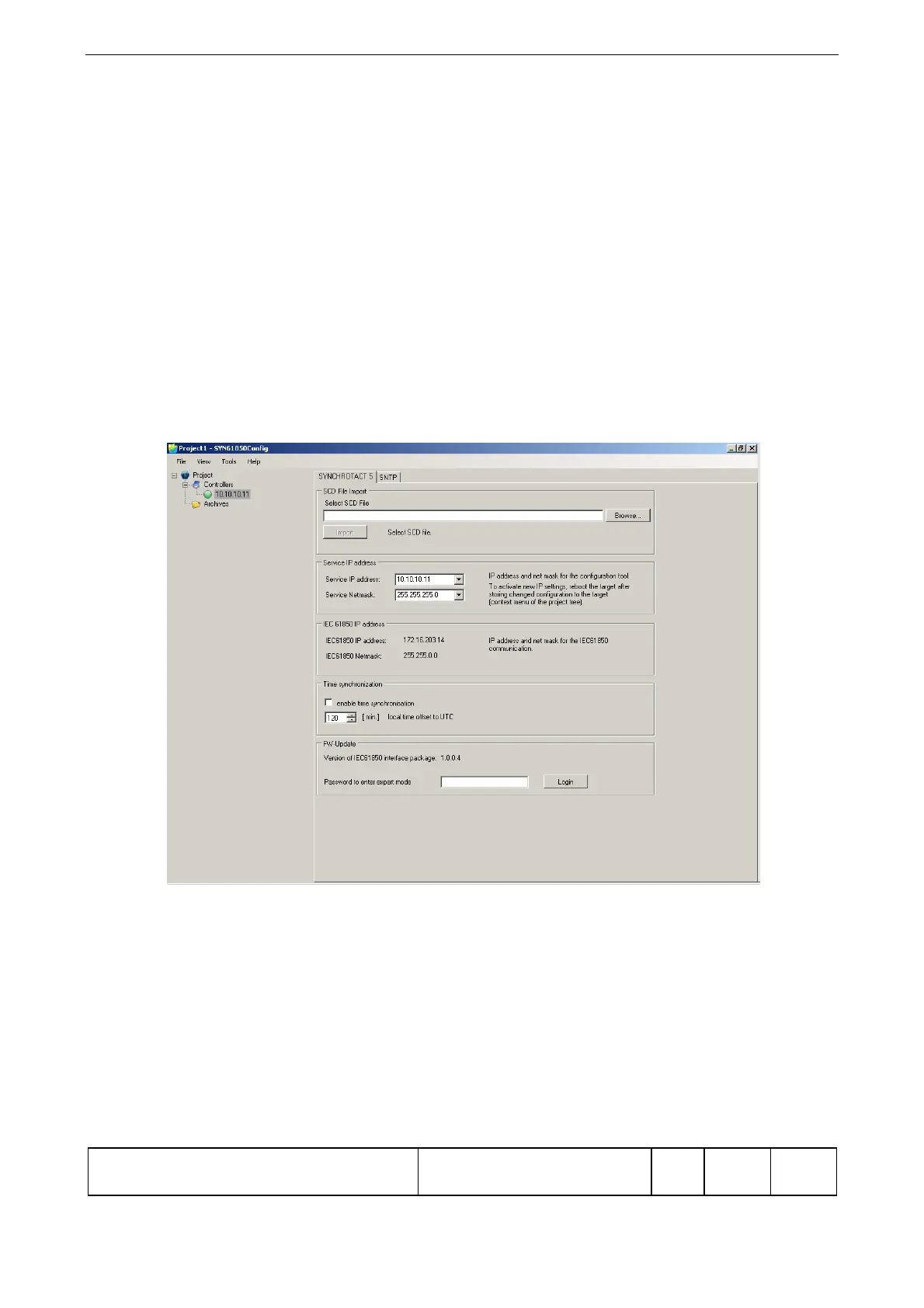

Tab [SYNCHROTACT 5]
SCD File Import: import of the SCD-Files
Service IP-address: Configuration and display of the Service IP-address
IEC 61850 IP-address: Display of the actual operating IP-address (see chapter
4.3.9)
Time synchronization: Release of time synchronization over IEC 61850-interface
(see chapter 2.7) and configuration of a fixed time lag with UTC.
FW-Update: Login to expert mode (description is not part of this manual)
