ABB TPL73-A30 - Page 108

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Installing cartridge group
8.7
Page 106
© Copyright 2016 ABB.
All rights reserved.
December 2016 HZTL2481_EN Revision B
CAUTION
If the rotor blades have insufficient or no clearance, the blades and cas-
ing could be damaged.
 Check that the blades do not rub on the turbine diffuser by rotating
the rotor.

Remove the lifting gear.

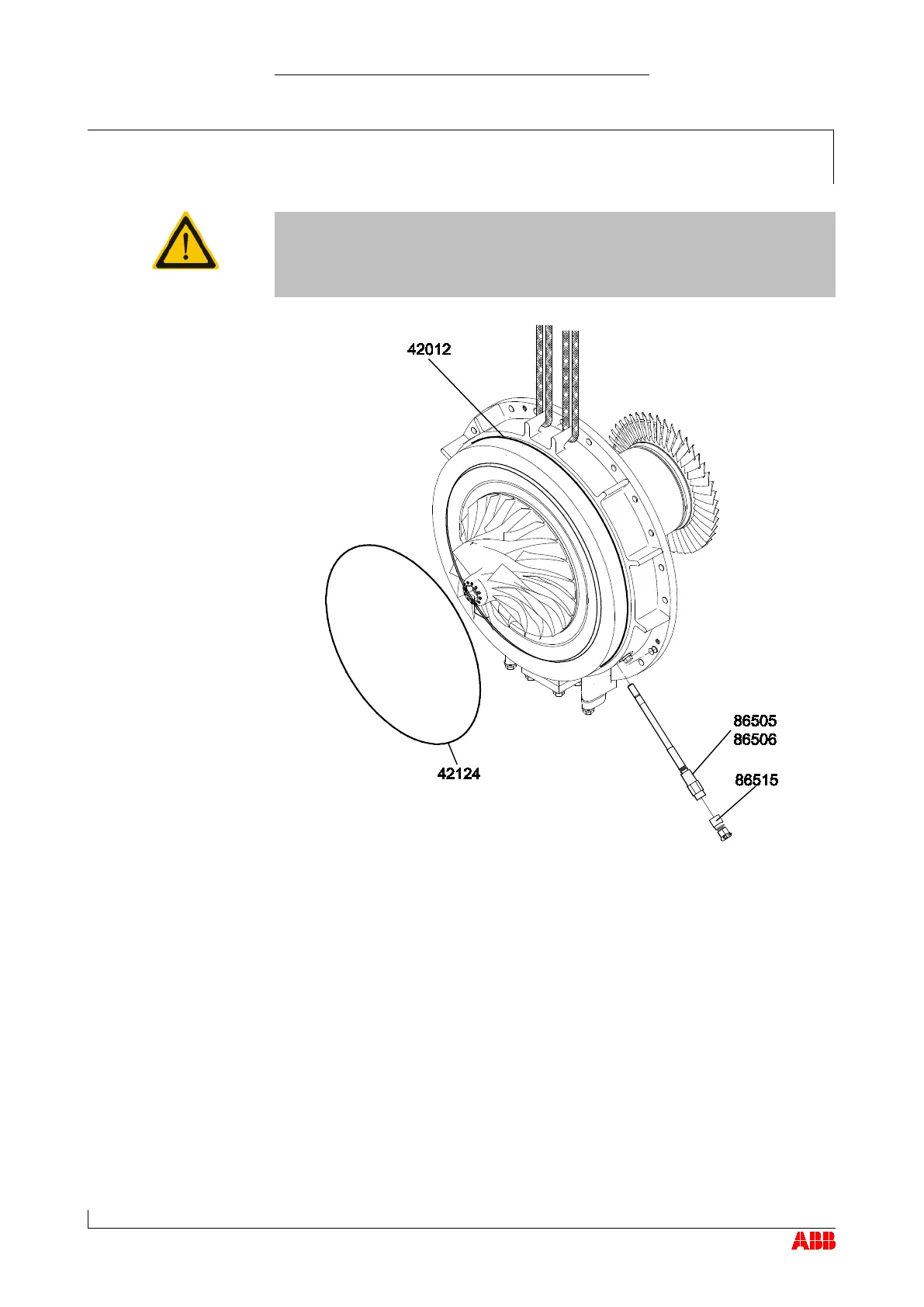

 Fit O-ring (42012).
 Screw in the speed sensor (86505) together with the O-ring (86506)
and plug in the cable connector (86515).
 Reconnect oil pipes.
Version with compressor wheel cooling system
 Fit the O-ring (42124).
 Fit the air supply line. (See also chapter entitled Preliminary remarks /
Layout and functionality)
