Disassembly and assembly
8
Installing cartridge group
8.7
Page 107
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B


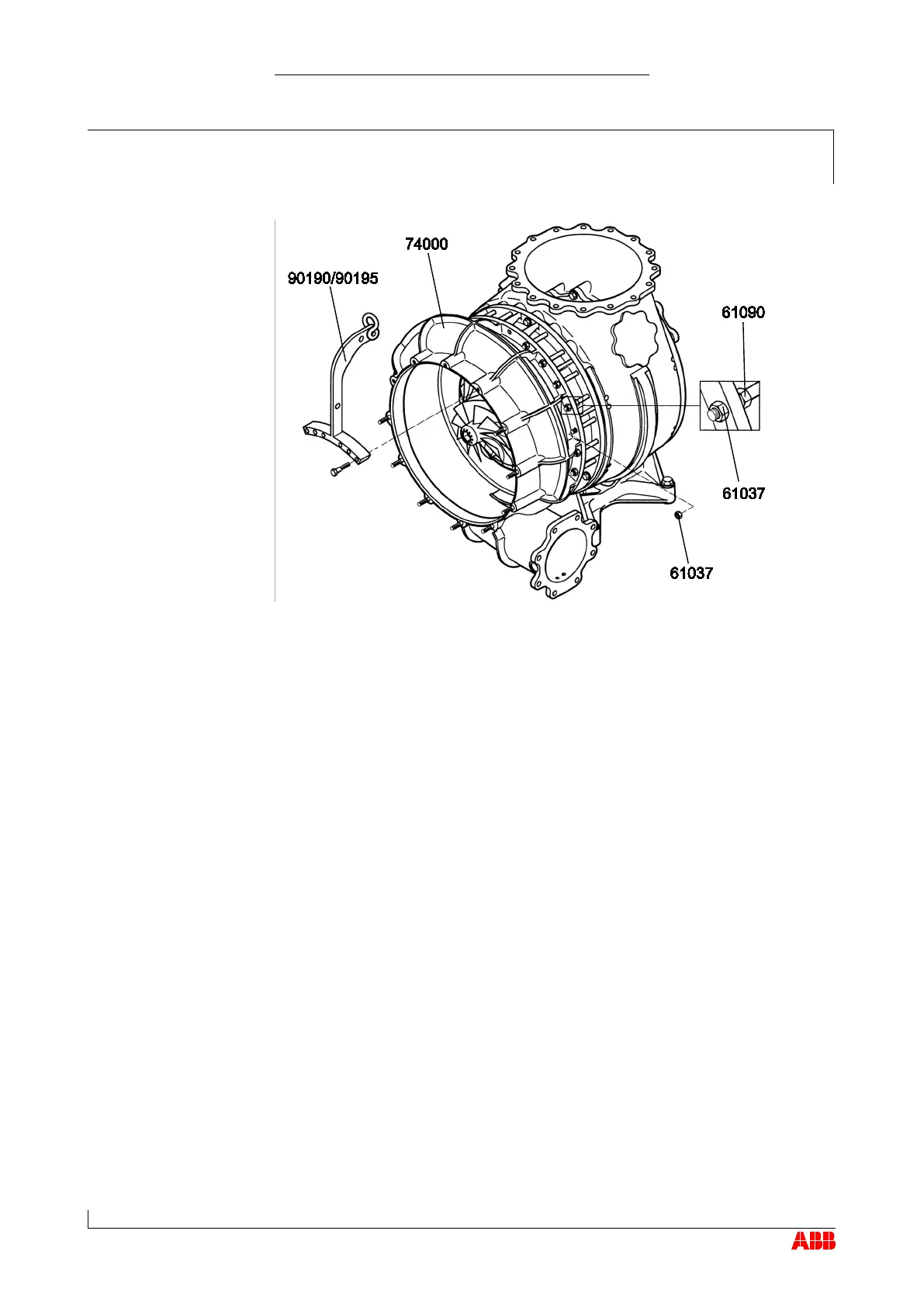

Fasten set-down compressor casing external part (74000) to crane us-
ing lifting device (90190) and shackle (90195).
 Screw three press-off nuts (61090) onto bearing casing studs, equally
distributed around circumference, and screw up to end of thread by
hand.
 Fit the compressor casing external part (74000) and secure with nuts
(61037).
 Secure three press-off nuts (61090) against compressor casing
(74000) by tightening them to specified torque (see chapter Table of
tightening torques).
