Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Disassembly and assembly
8
Installing cartridge group
8.7
Page 109
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B


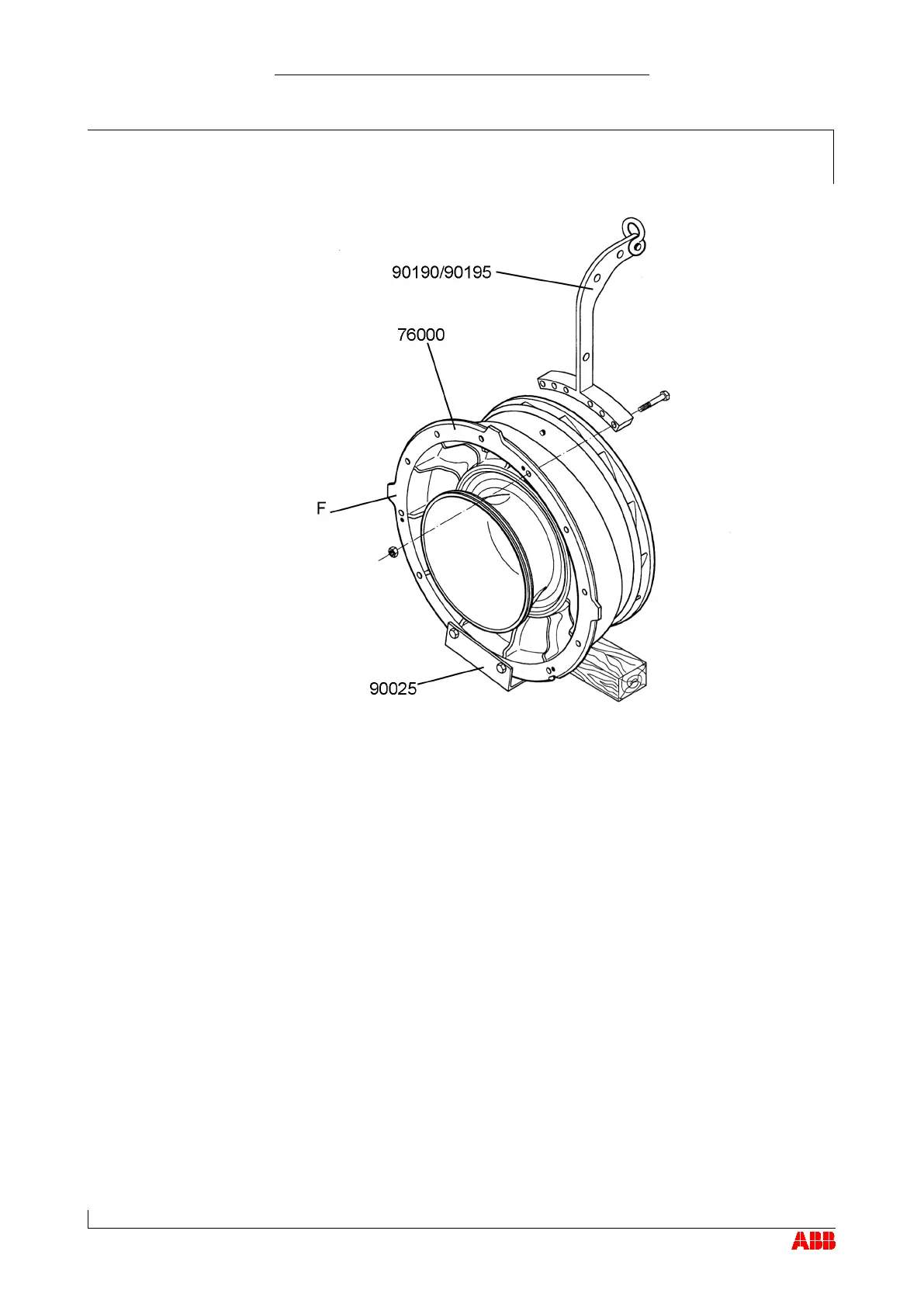

Secure the lifting device (90190) and the shackle (90195) to the rear of
the flange (
F
).
 Carefully turn compressor casing internal part complete with wall insert
and diffuser about support angle (90025) into vertical position and set
down on underlay and support angle.
