Taking out of operation at short notice
9
Locking the rotor
9.2
Page 125
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
Part number
TPL69-A
TPL73-A
TPL77-A

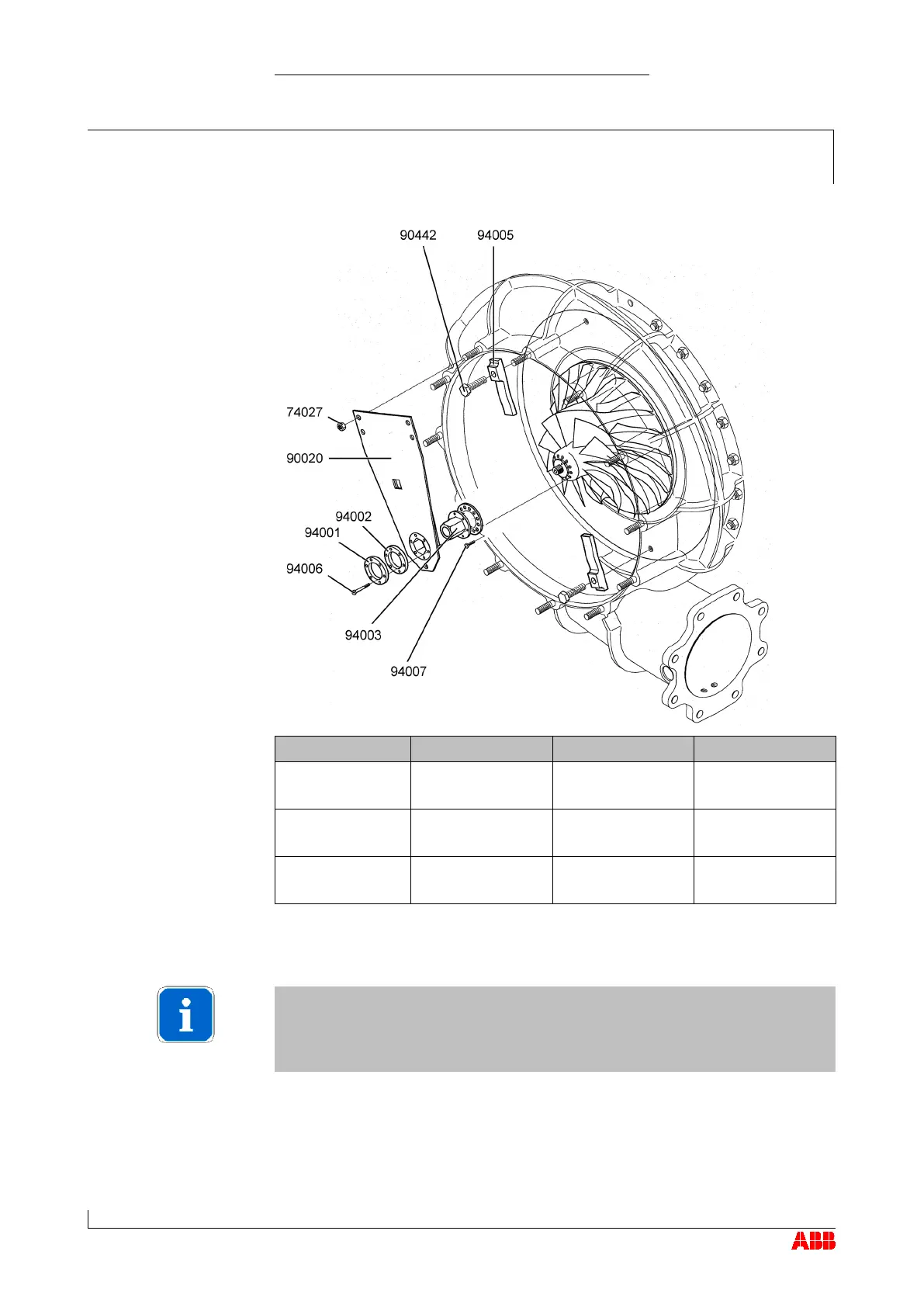

74027 M16
105
M18
135
M20
175
94006 M8
25
M8
25
M8
25
94007
M8
15
M8
15
M8
15
NOTICE
Carried out work as described in the chapter Disassembly and assem-
bly
.
 Remove silencer or air suction branch and compressor casing internal
part complete with wall insert and diffuser.
 Fit partition wall clamp (94005) using screws (90442).
Table of tightening tor-
ques [Nm]
