Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
Taking out of operation at short notice
9
Locking the rotor
9.2
Page 127
© Copyright 2016 ABB. All rights reserved.
December 2016 HZTL2481_EN Revision B
CAUTION
Make sure all components are clean and free from grease.

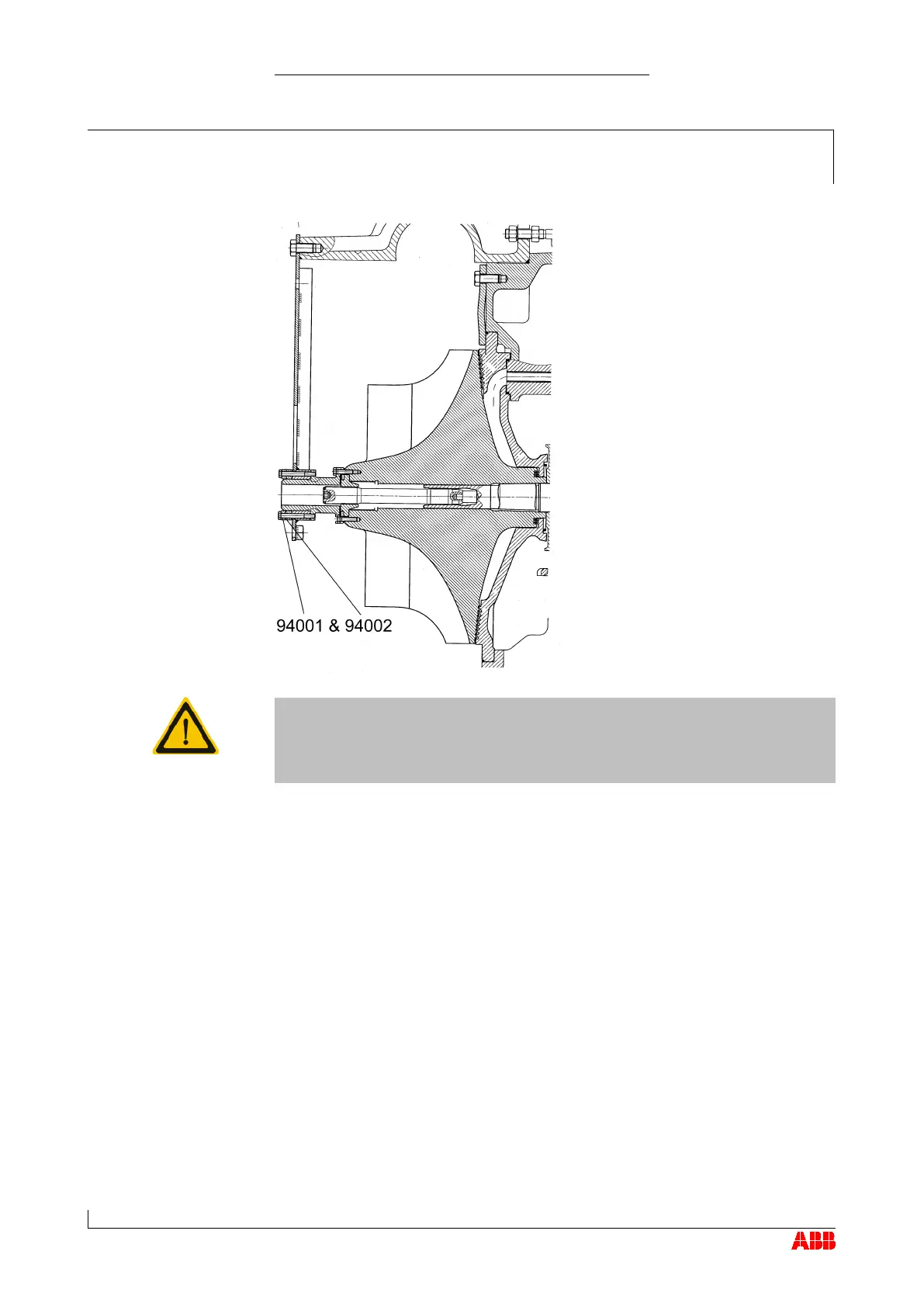

 Push intermediate rings (94001 and/or 94002) and assembly-
disassembly device (90020) onto locking flange (94003) in correct or-
der.
 Now push on remaining intermediate rings (94001 and/or 94002).
 Tighten intermediate rings, assembly-disassembly device (90020) and
locking flange (94003) using screws (94006) according to values
shown in preceding
Table of tightening torques
.
 Now tighten assembly-disassembly device to compressor casing using
nuts (74027) and studs according to values shown in preceding
Table
of tightening torques
.
Compressor type CV 20
