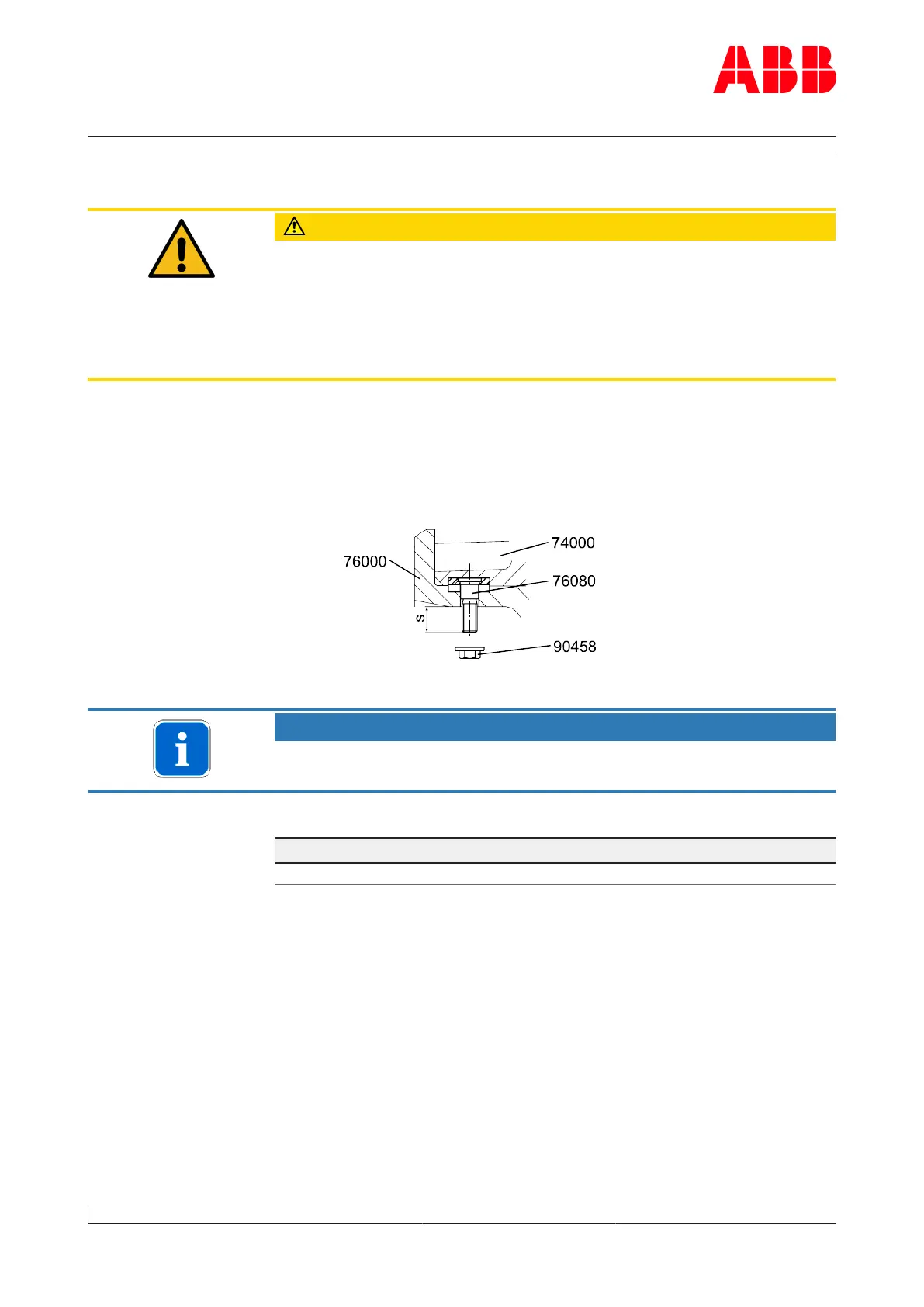

Engaging safety elements / securing casing
CAUTION
Locked safety segments (76080) during assembly
The safety segments (76080) are not in the operating position. Addi-
tional axial securing of the two compressor casings (74000/76000) is
not guaranteed.
u Fit four nuts (74027) complete with washers (74018), equally spaced
around circumference, and tighten.
u Unscrew nuts (90458) on threaded studs of safety segments (76080)
on internal part of compressor casing (76000).
The internal part of the compressor casing (76000) is now secure relat-
ive to the external part (74000).
NOTICE
Note the control dimension (s). The safety segments (76080) are in the
operating condition again ("engaged").
Check dimension (s) [mm]
Dimension TPL76-C
s 16.5
u Put nuts (90458) back into toolbox.
