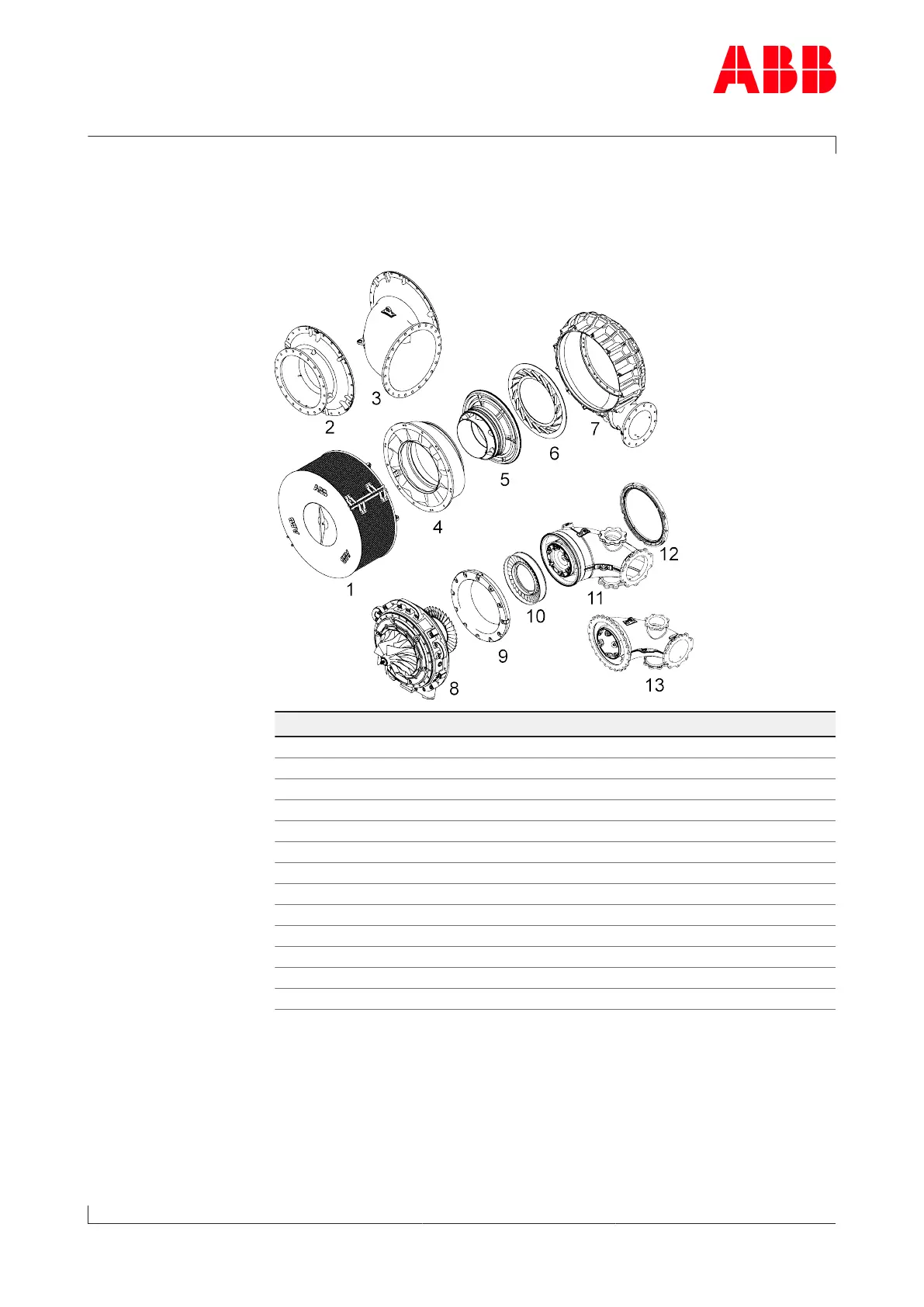

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Assemblies
Weights [kg]
Item Description TPL76-C
1 Filter silencer 280
2 Axial air suction branch 70
3 Radial air suction branch 120
4 Compressor casing internal part 220
5 Wall insert 220
6 Diffuser 45
7 Compressor casing external part 310
8 Cartridge group 900
9 Turbine diffuser 80
10 Nozzle ring 23
11 Radial gas inlet casing with segment connection 250
12 Segment 18
13 Radial gas inlet casing with flange connection 190
