Operation Manual / TPL76-C
9 Taking out of operation at short notice / 9.3 Fit cover plate
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018

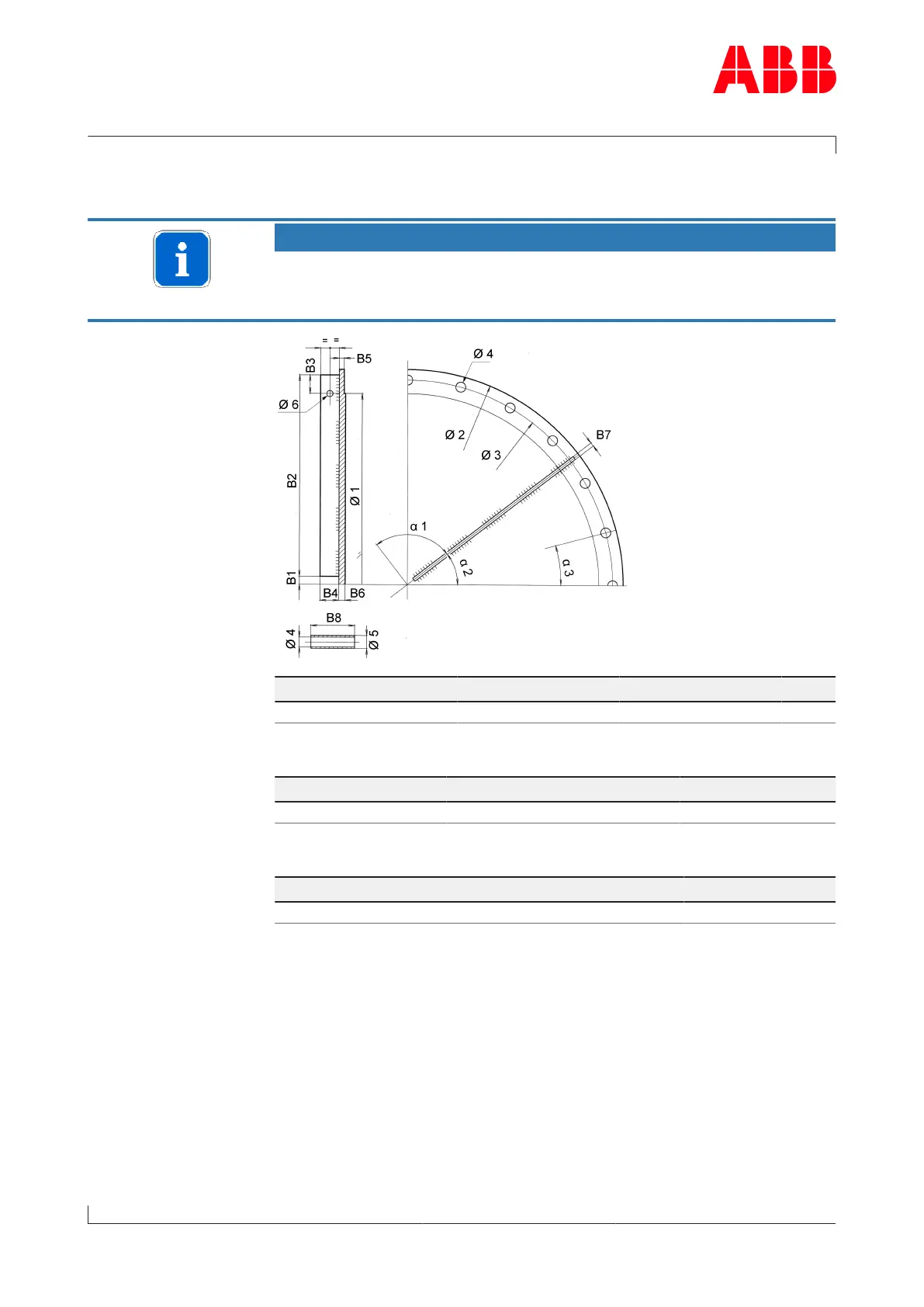

9.3 Fit cover plate
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.
Cover plate dimensions
[mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
TPL76-C 13 470 50 50 9 12 8 82
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6
TPL76-C 915 990 950 20 28 20
Product
⍺
1
⍺
2
⍺
3
TPL76-C 4 x 90° 37.5° 24 x 15°
