Operation Manual / TPL76-C
8 Disassembly and assembly / 8.4 Axial clearance
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
8.4 Axial clearance
WARNING
Physical hazards due to sharp edges on compressor wheel
The compressor wheel has sharp edges which can result in injury.
u Wear safety gloves.
Wear safety gloves to protect against mechanical hazards.

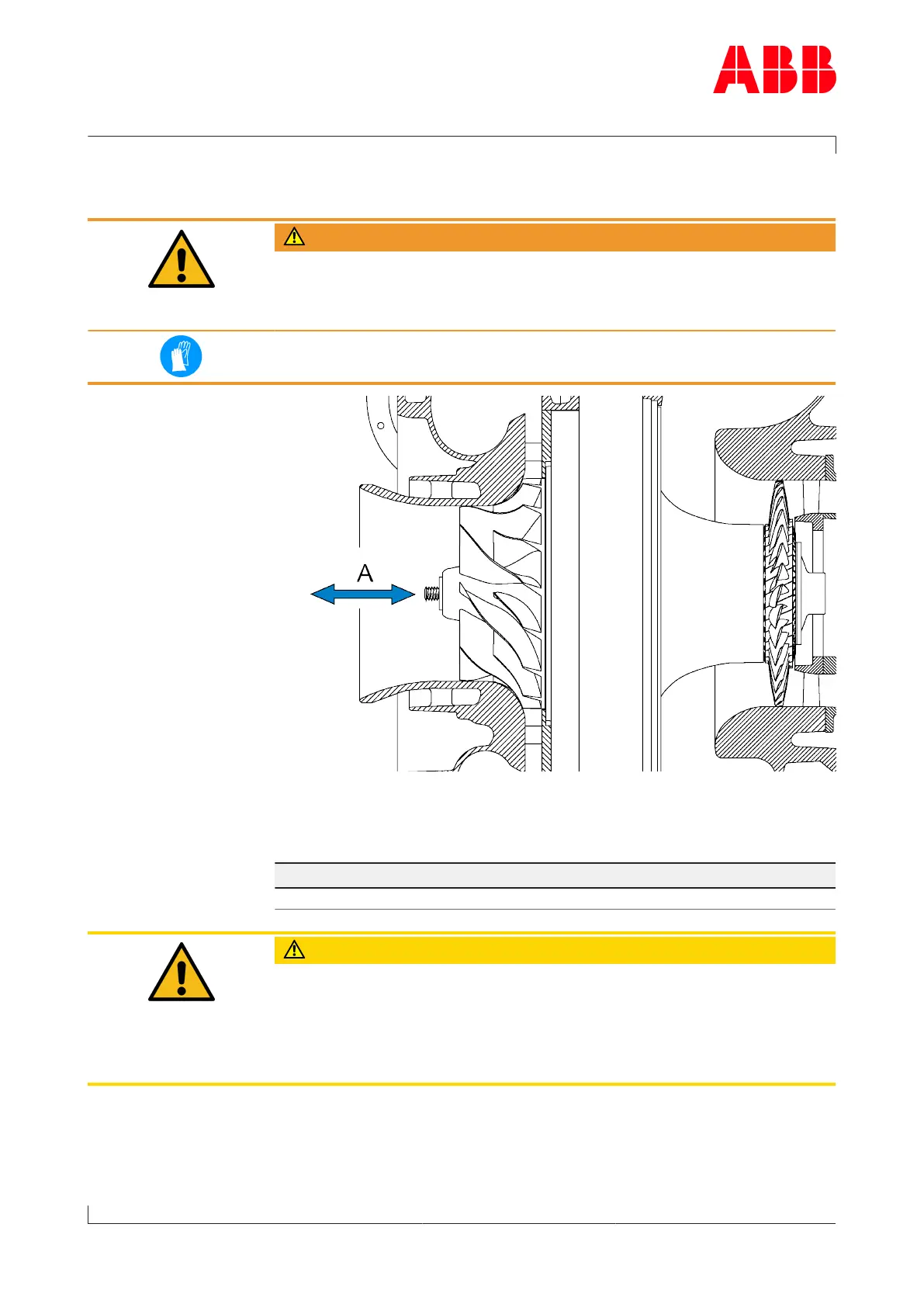

The axial clearance (A) must be measured before removing and after in-
stalling the cartridge group.
u Measure and note the axial clearance (A).
Clearance A [mm]
TPL76-C
0.43 … 0.69
CAUTION
Clearances outside the tolerance
Serious damage to engines or property can be caused by clearances
outside the tolerance and excessively worn parts.
u Have the components assessed and, if necessary, replaced by an
ABB Turbocharging Service Station.
Page 86 / 133
