Operation Manual / TPL76-C
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
8.6 Dismantling and installing the turbine diffuser
and nozzle ring
Removing turbine diffuser

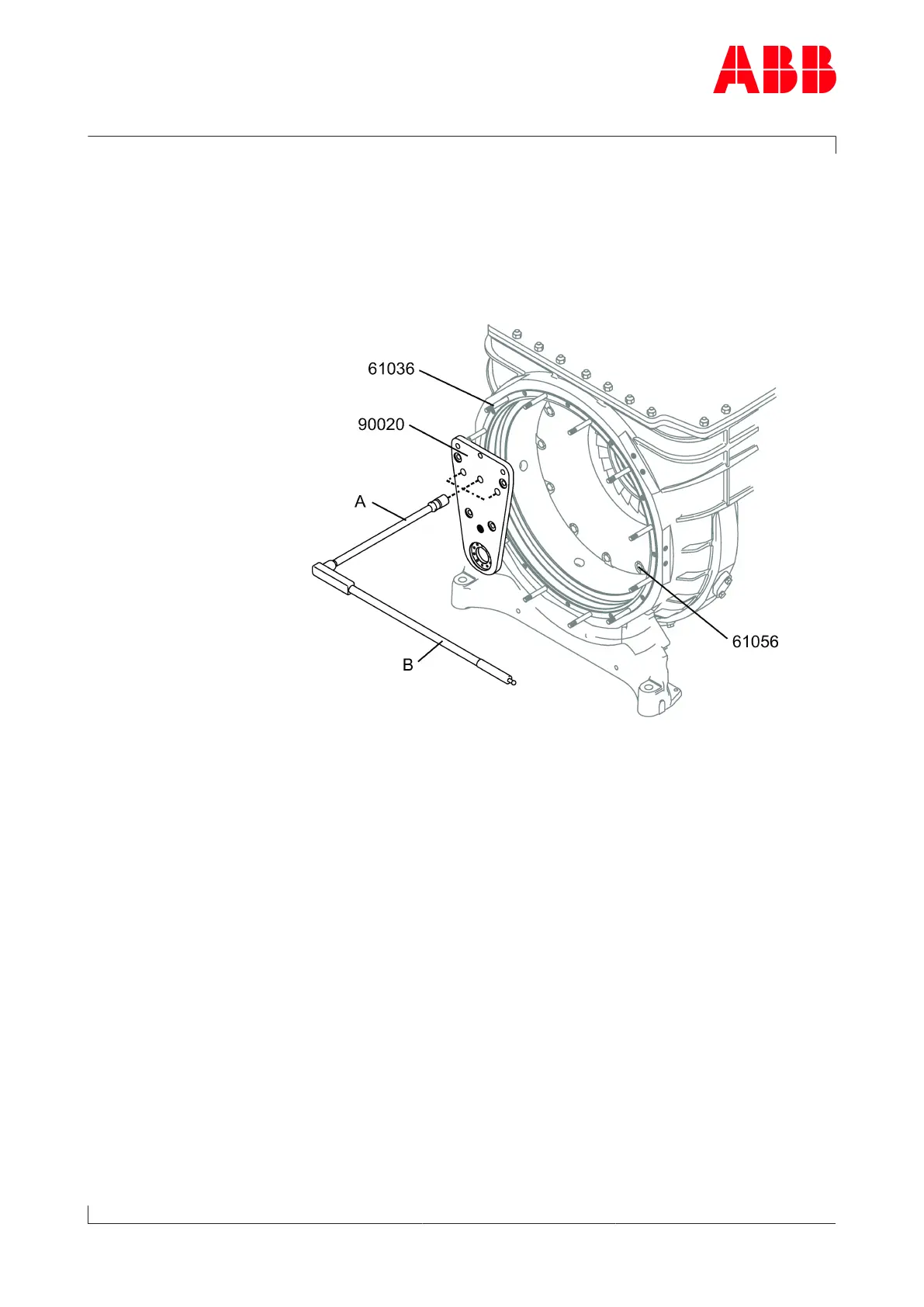

u Put assembly plate (90020) over strain bolts (61036).
u Insert extension (A) of torque spanner (B) through hole in assembly
plate and loosen screws (61056) one after other.
u Don't remove screws (61056) yet.
Page 94 / 133
