Operation Manual / TPL76-C
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018

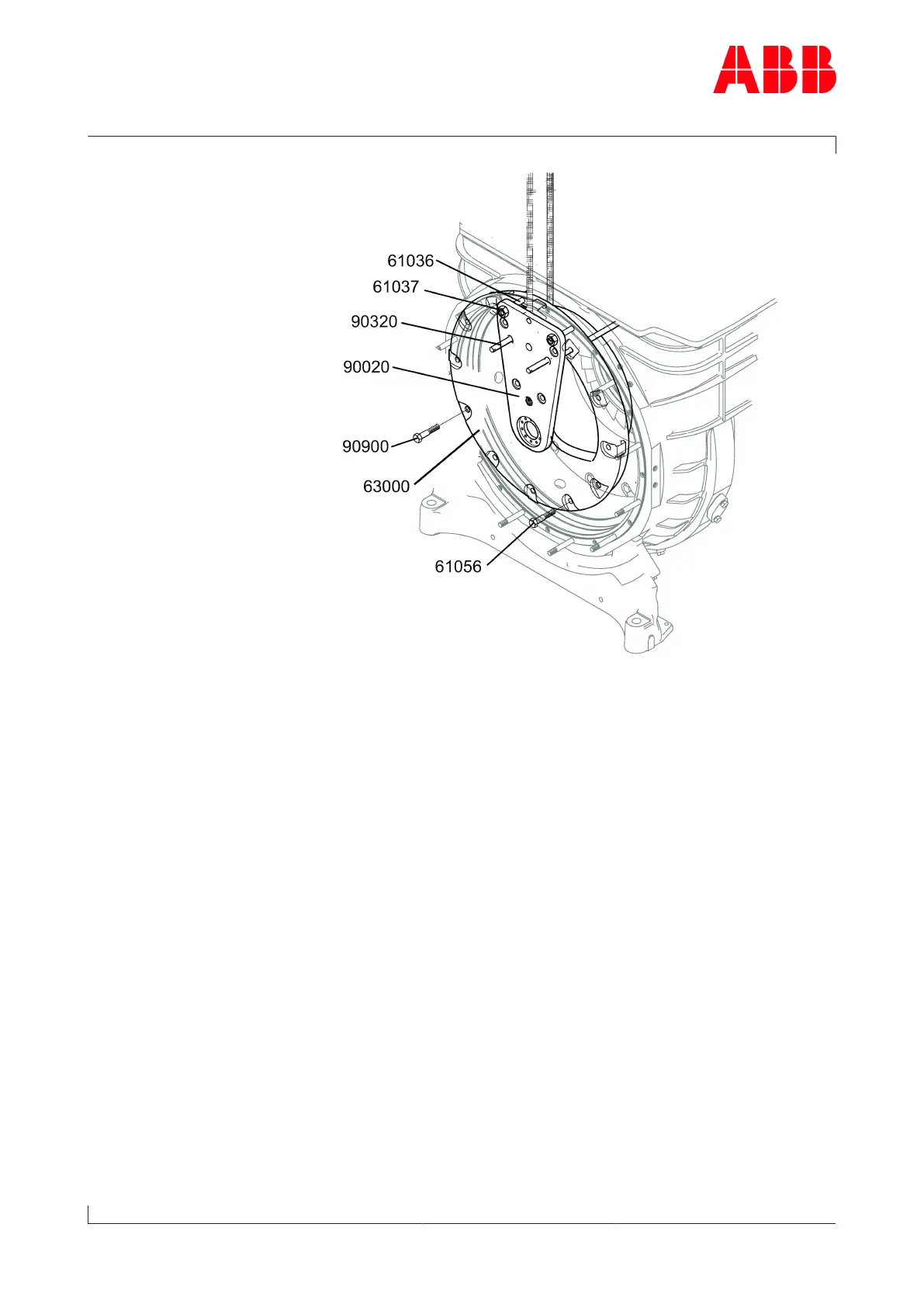

u Replace two screws (61056) with guide studs (90320).
u Fit assembly plate (90020) over studs (61036).
u Screw nuts (61037) onto start of threads of studs (61036) to secure.
u Remove remaining screws (61056).
u Press away turbine diffuser (63000) using press-off screws (90901)
and withdraw it until assembly plate (90020) touches nuts (61037).
u Loop lifting gear around turbine diffuser (63000) and secure to crane.
u Remove nuts (61037) and assembly plate (90020) from studs.
u Fully withdraw turbine diffuser and remove.
u Remove guide studs (90320).
