8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
8.3 Removing and fitting filter silencer or air
suction branch
u Disconnect all air lines / ducts in accordance with engine builder’s in-
structions.
u Remove the insulation where necessary.

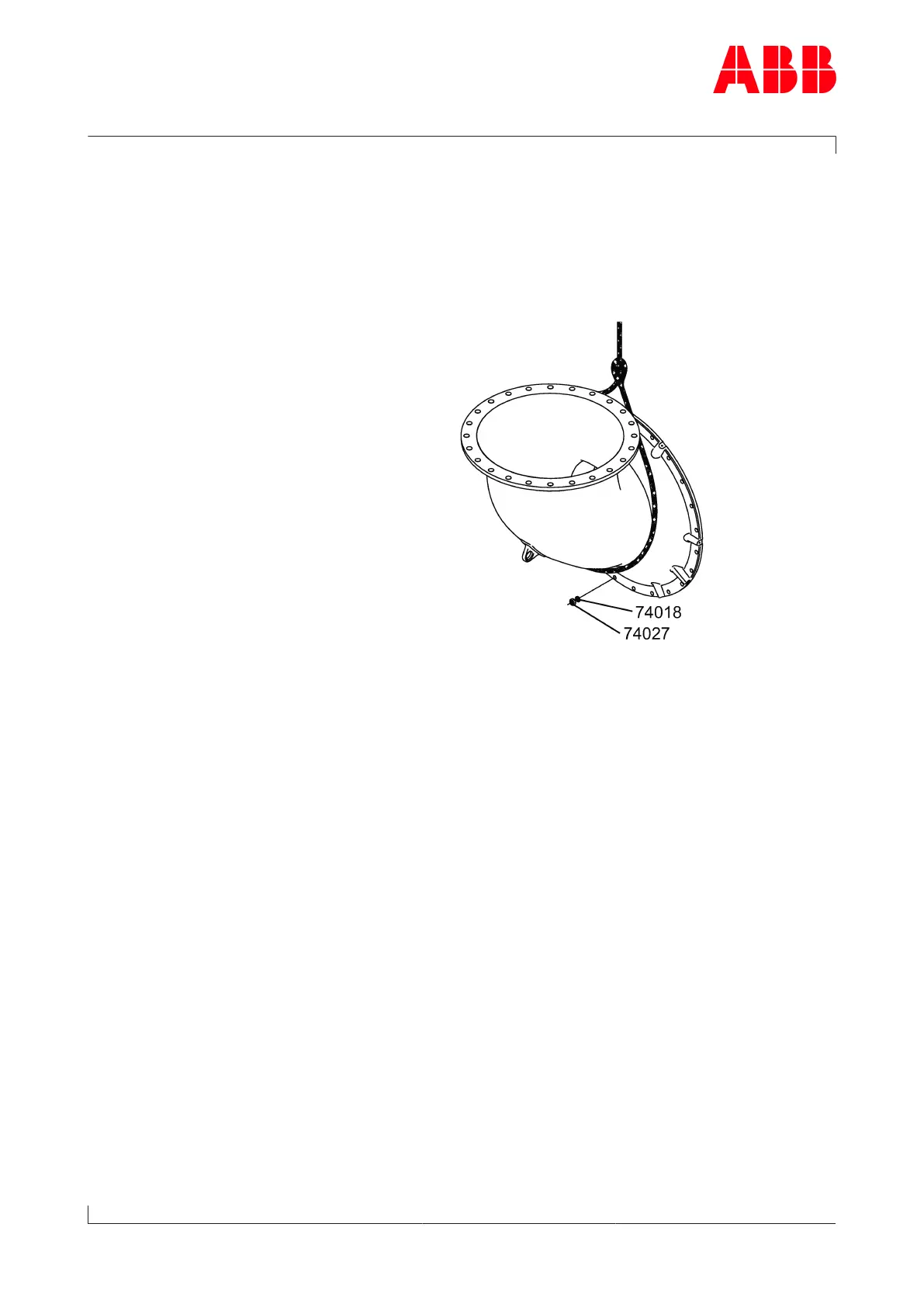

u Loop the lifting gear around the air suction branch.
u Unscrew the nuts (74027) and remove them together with their wash-
ers (74018).
u Remove the air suction branch and set it down to one side.
Installing the air suction
branch
u Install the air suction branch in reverse order.
