Operation Manual / TPL76-C
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
8.5 Removing cartridge group
CAUTION
Locked safety segments (76080) during disassembly
Observe the maximum tightening torque for the nuts (90458) so as not
to shear off the threaded studs of the safety segments (76080).
u Fit four nuts (74027) complete with washers (74018), equally spaced
around circumference, and tighten.
u Remove insulation (from bearing casing).

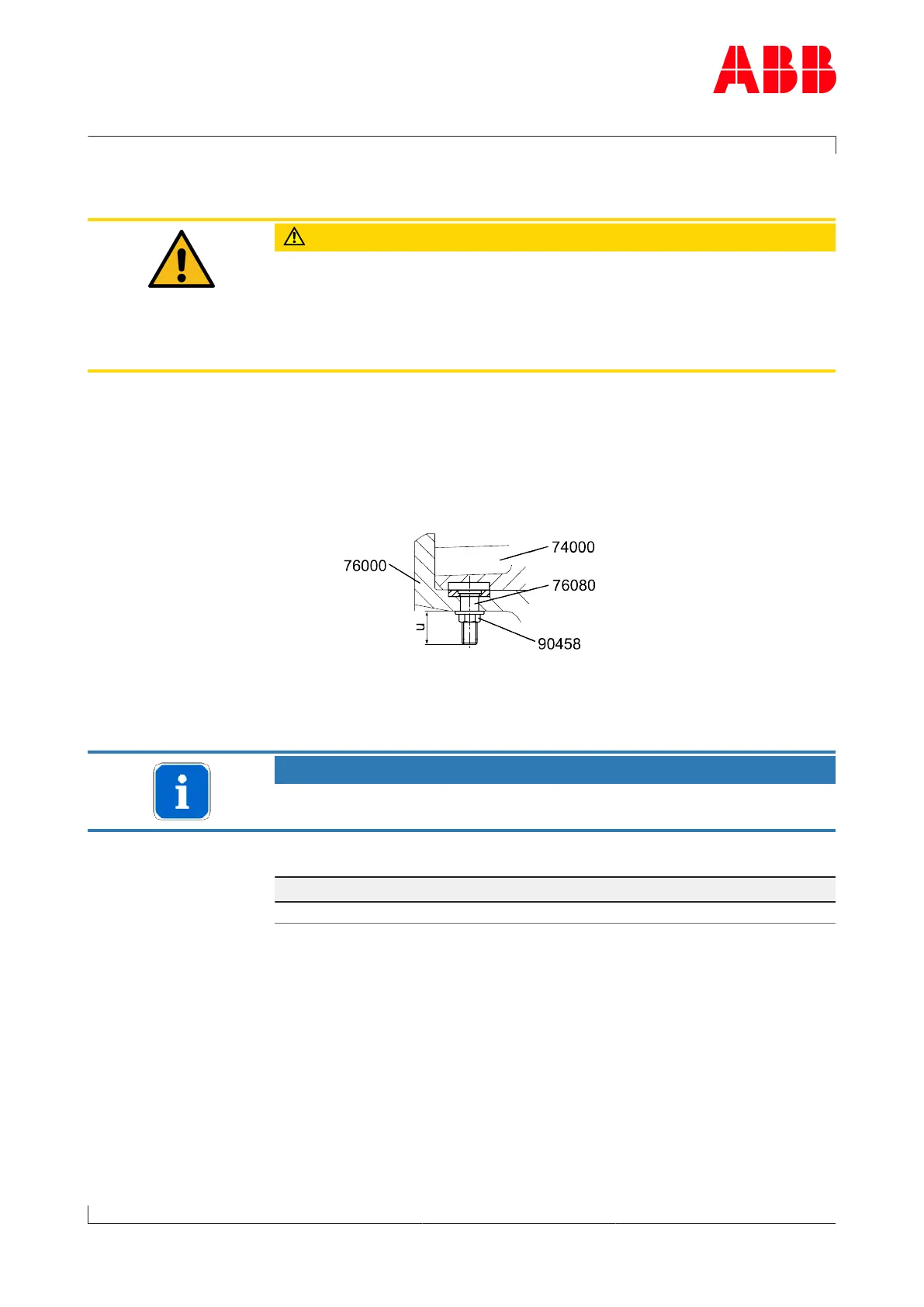

Removing safety segments / releasing casing
u Take nuts (90458) out of toolbox and screw them onto threaded
studs of safety segments (76080) on internal part of compressor cas-
ing (76000).
u Tighten nuts (90458) to a maximum torque of 30 Nm.
The internal part of the compressor casing (76000) has now been separ-
ated from the external part (74000) and can be removed.
NOTICE
Note the control dimension (u).
Check dimension (u) [mm]
Dimension TPL76-C
u 21.8
Page 87 / 133
