Operation Manual / TPL76-C
8 Disassembly and assembly / 8.8 Dismantling and fitting nozzle ring
at turbine end
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018

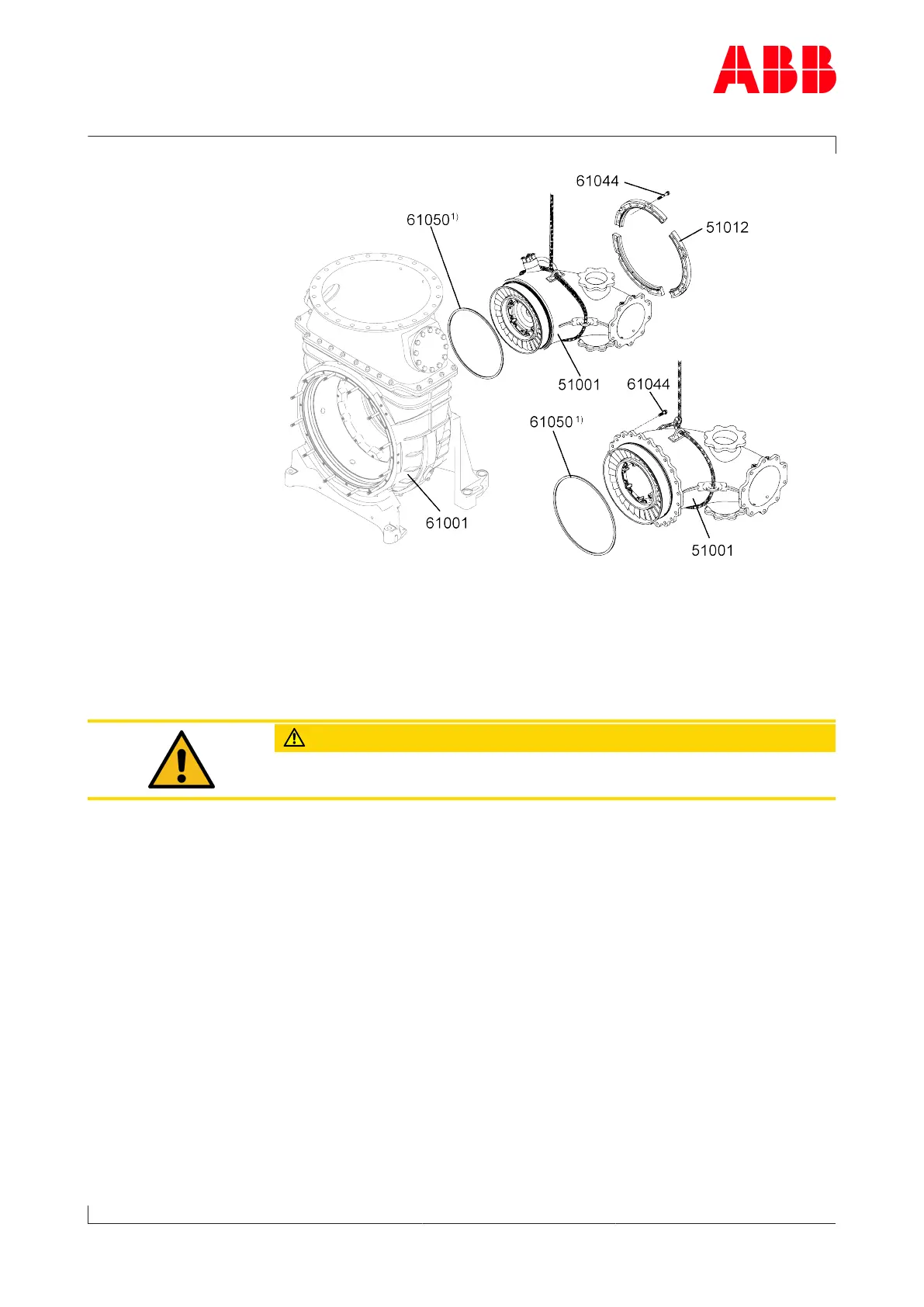

Segment connection
u Undo screws (61044) and remove segments (51012).
Flange connection
u Undo and remove screws (61044).
u Pull gas inlet casing (51001) complete with nozzle ring (56001) away
from gas outlet casing (61001).
CAUTION
Use suitable underlays when putting down gas inlet casing.
1) If present
u Remove gasket (61050).
Page 109 / 133
