Operation Manual / TPL76-C
5 Maintenance / 5.2 Cleaning the filter silencer
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
CAUTION

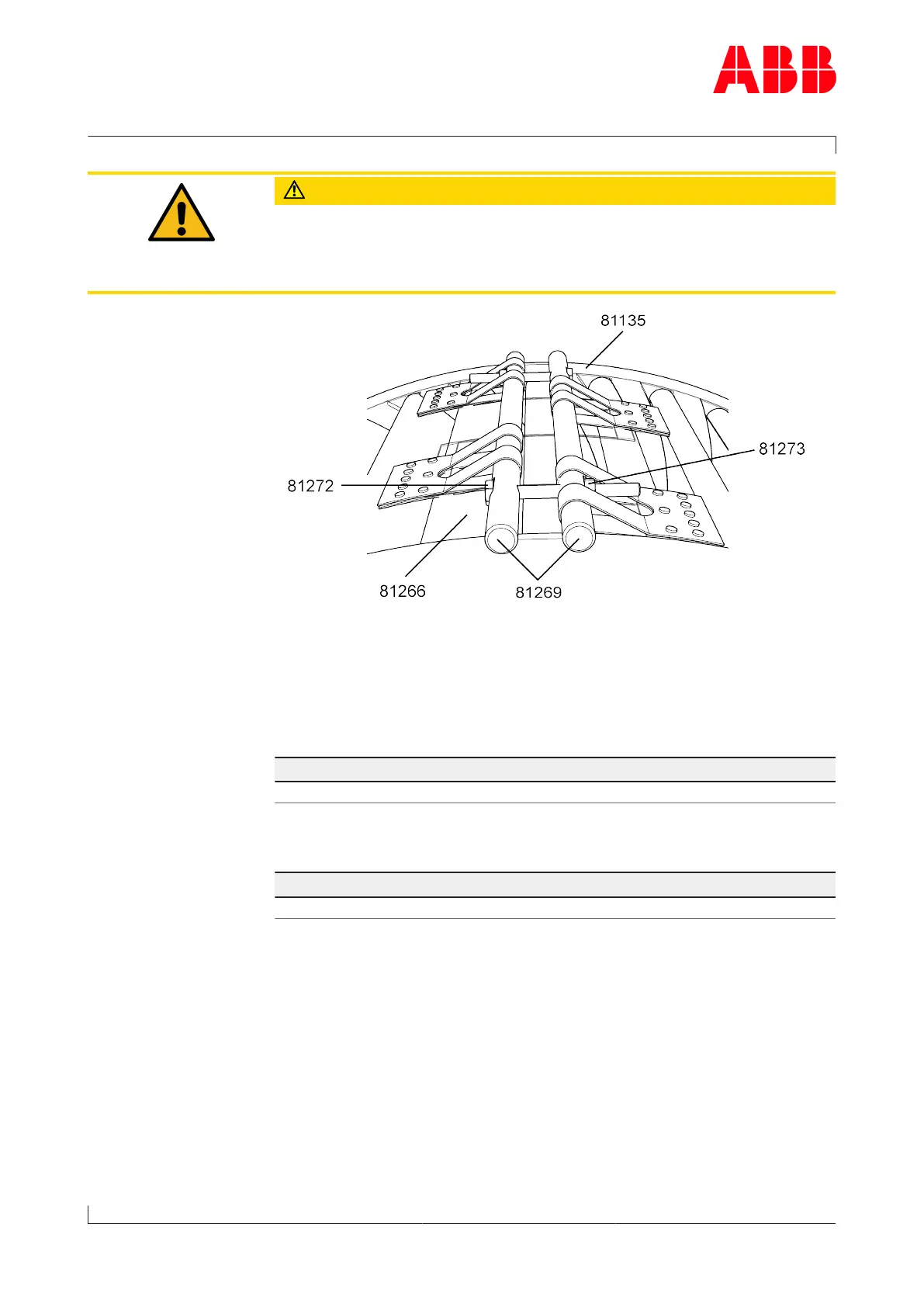

If the connecting rods (81269) are not located correctly in their recesses
on the filter silencer body (81135), the cover grids (81266) can twist and
shift. There is then a risk of foreign matter and dirt getting into the
compressor.
u Join connecting rods (81269) using screws (81272). When tightening
the screws (81272), ensure that connecting rods (81269) are located
correctly in recesses in filter silencer body (81135). Now tighten
screws (81272) alternately until the following maximum torque is
reached:
Screw Tightening torque [Nm]
81272 20
u Screw lock nuts (81273) onto screw (81272) and tighten to following
torque:
Lock nut Tightening torque [Nm]
81273 40
