Operation Manual / TPL76-C
5 Maintenance / 5.3 Cleaning the compressor during operation
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
5.3.2 Wet cleaning using external water-pressure vessel
(XC3)
Operating state prerequisites for compressor cleaning with XC3
In order to carry out a successful cleaning procedure that has been
tested and is recommended by ABB Turbo Systems, the following pre-
requisite must be met:
w Engine load 50 ... 85%
u Start cleaning cycle according to following description Wet cleaning
operation with XC3.
Operating procedure for compressor wet cleaning with XC3

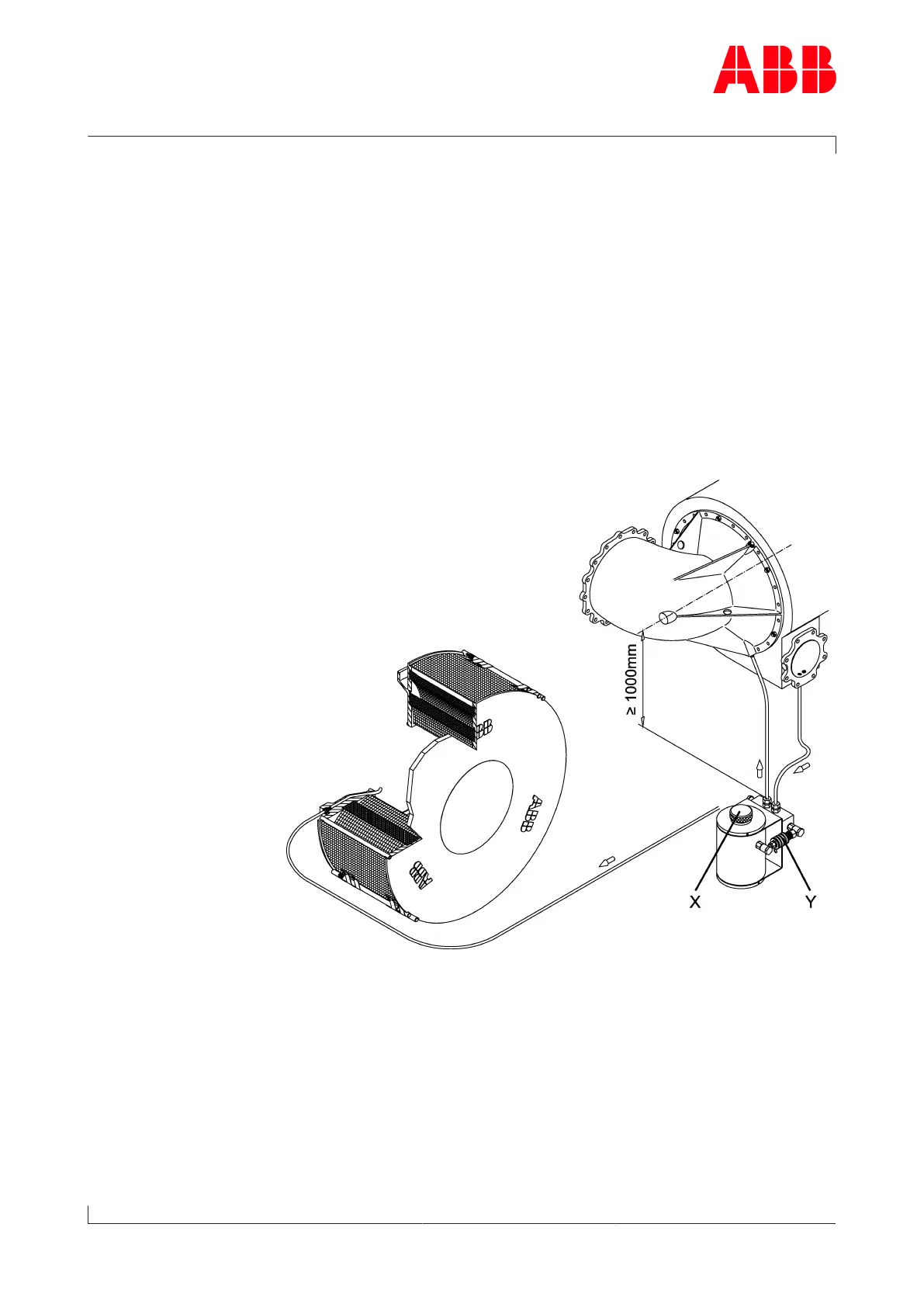

Operating the water pres-
sure vessel
u The operating state prerequisites for compressor cleaning with XC3
must be fulfilled.
u Remove sealing plug (X).
u Fill vessel with required volume of clean water (see table Cleaning
parameters).
u Screw in sealing plug (X).
u Push the valve activator (Y) against the spring and hold it for 10...15
seconds until the entire volume of water has been injected.
Page 53 / 133
