ABB TZIDC-200 - Screwing Mounting Bracket; Screwing Positioner on Actuator

Mounting
22 TZIDC-200, TZIDC-210, TZIDC-220 42/18-85-EN

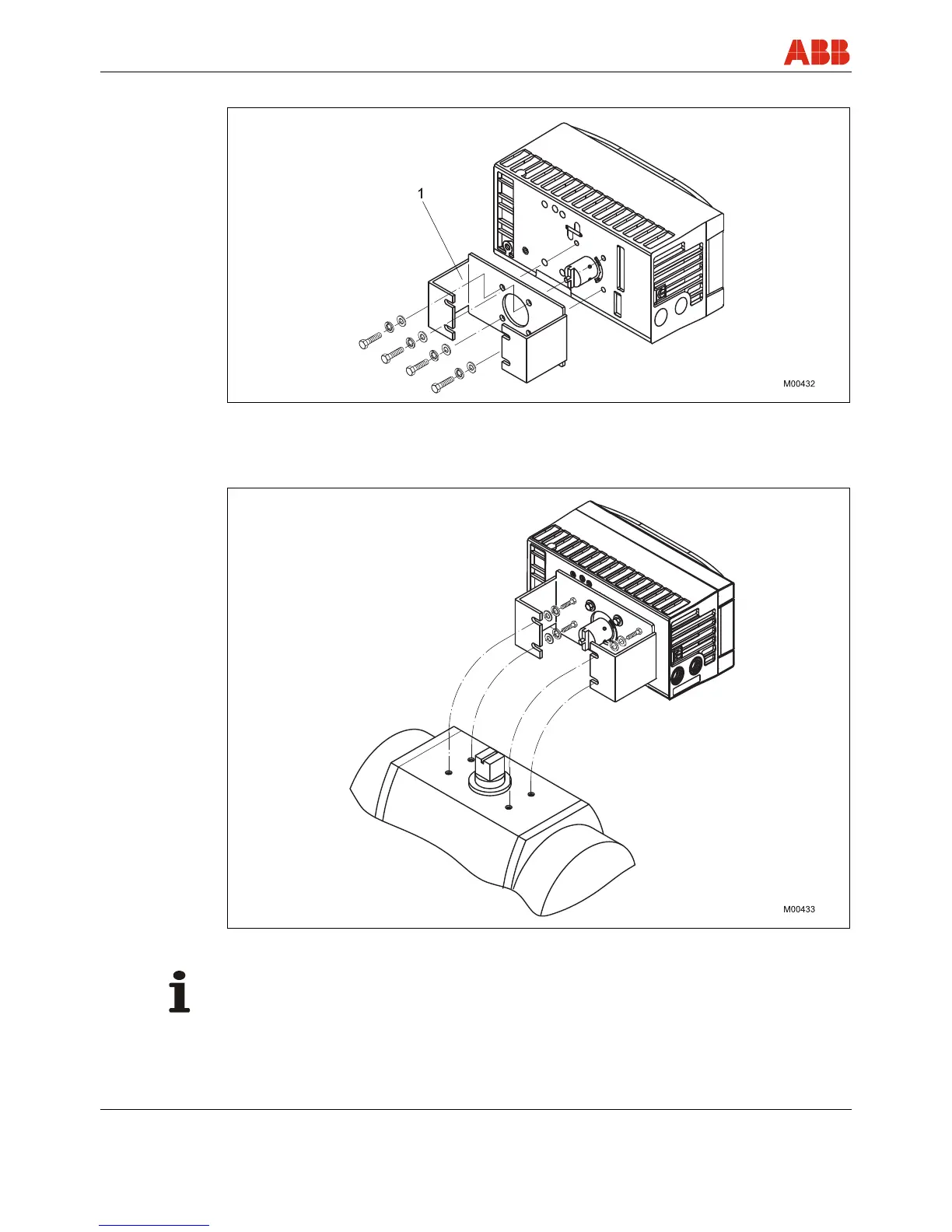

2. Screwing mounting bracket on to positioner
Fig. 14
1 Mounting bracket
3. Screwing positioner on to actuator
Fig. 15
IMPORTANT (NOTE)
After mounting, check whether the working range for the actuator matches the sensor range
for the positioner.
