• When the switchgear has been properly assembled, fix the panels to the floor using plugs, or weld
or adequately bolt them to the foundation frame.

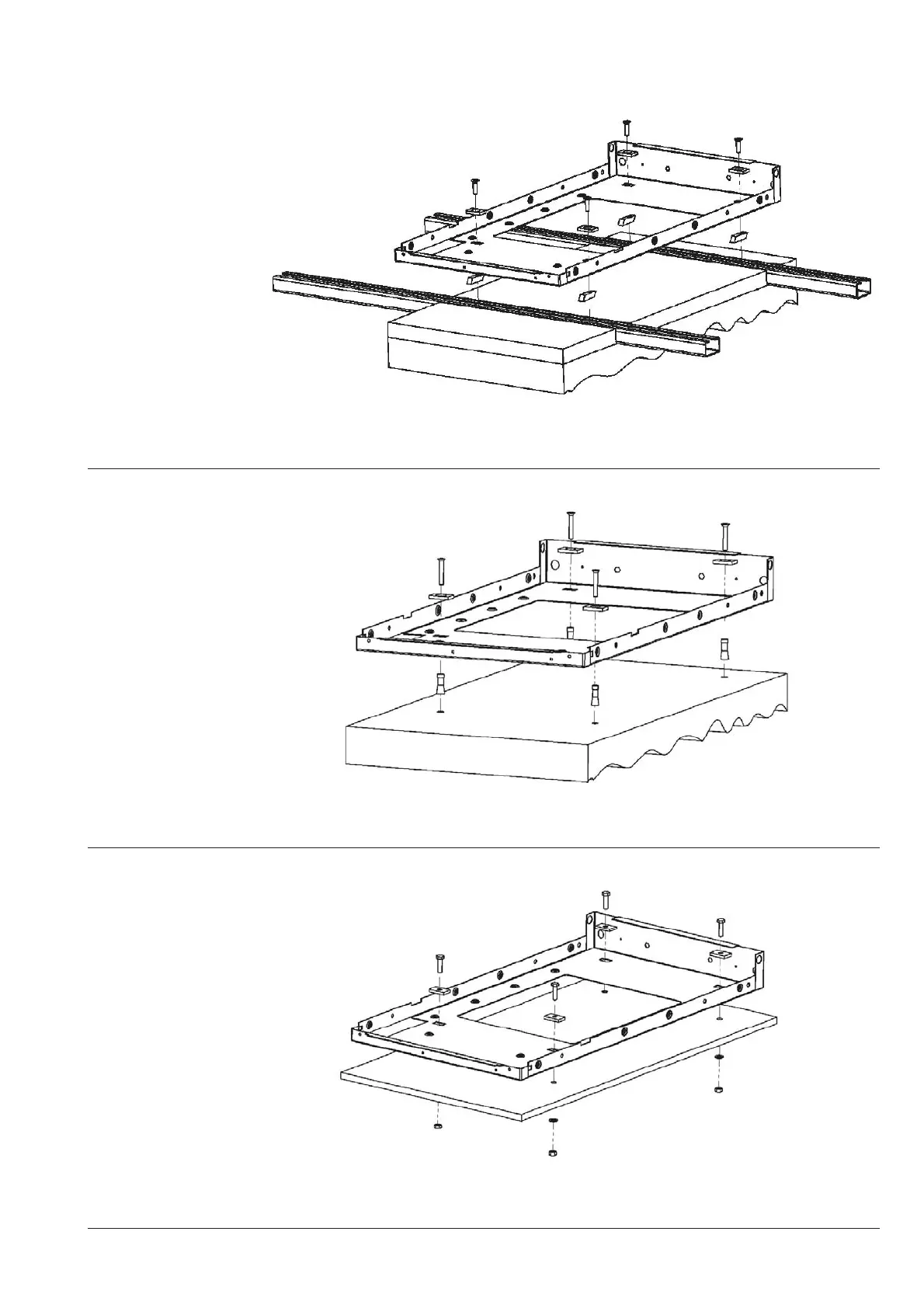

Figure 64: Fixing to the floor - method of installation “A” with base irons
Figure 65: Fixing to the floor - method of installation “B” with anchoring bolts to concrete floor
Figure 66: Fixing to the floor - method of installation “C” to raised false floor
