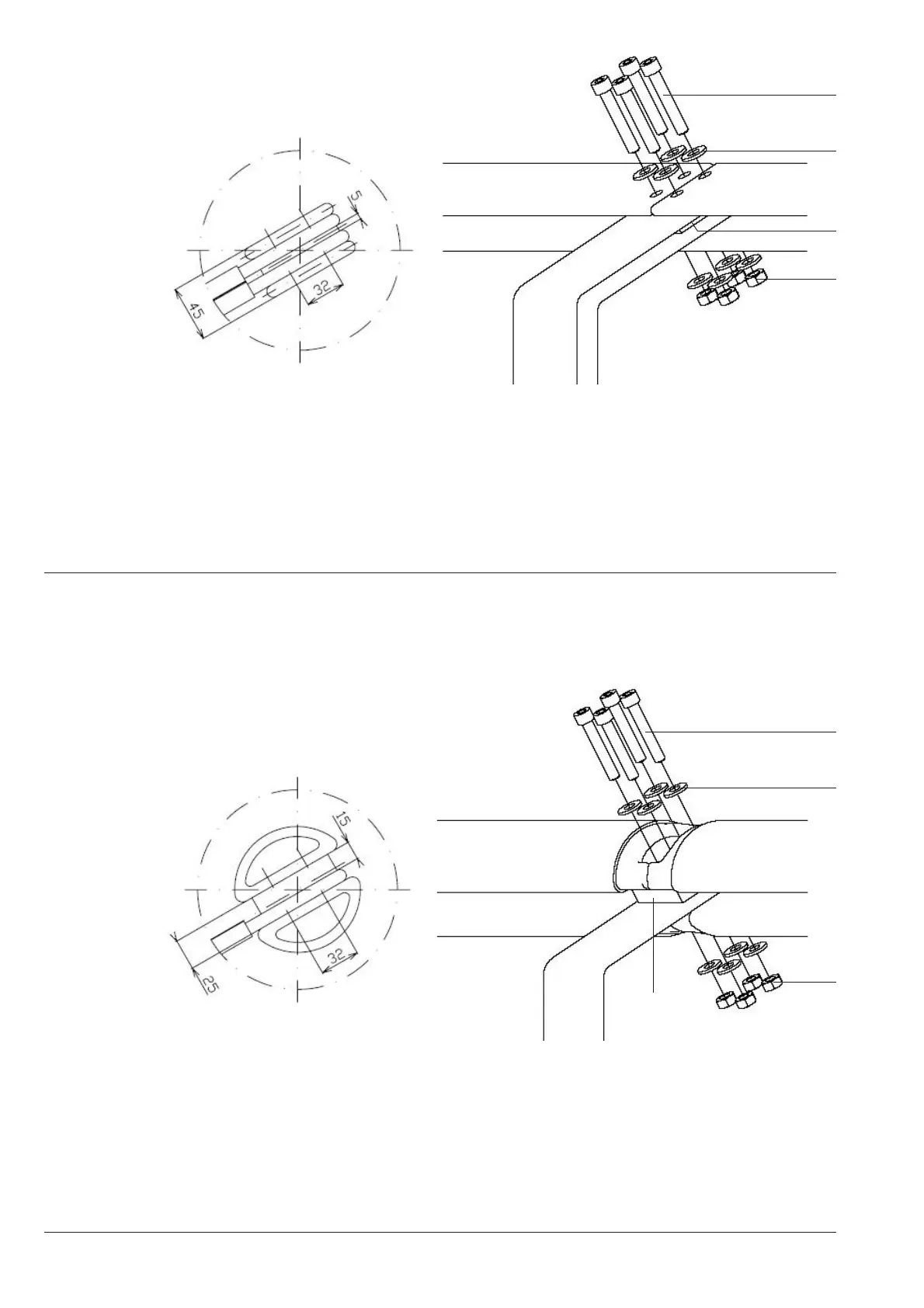

Figure 72: 12/17,5 kV panels – Tee-off 1600-2000A-2500A, busbars 1600A-2000A-2500A
41 nr. 4 10x60 screws
42 nr. 8 M10 washers
43 nr. 4 M10 nuts
45 nr. 1 spacer (5mm)
Figure 73: 12-17,5 kV panels – Tee-off 630-1250A, busbars 3150A-3600A-4000A
4 nr. 4 10x60 screws
42 nr. 8 M10 washers
43 nr. 4 M10 nuts
44 nr. 1 spacer (15mm)
41
42
43
45
41
42
43
44
