48
- 1250 A
- 2500 A
- 2500 A
- 2500 A

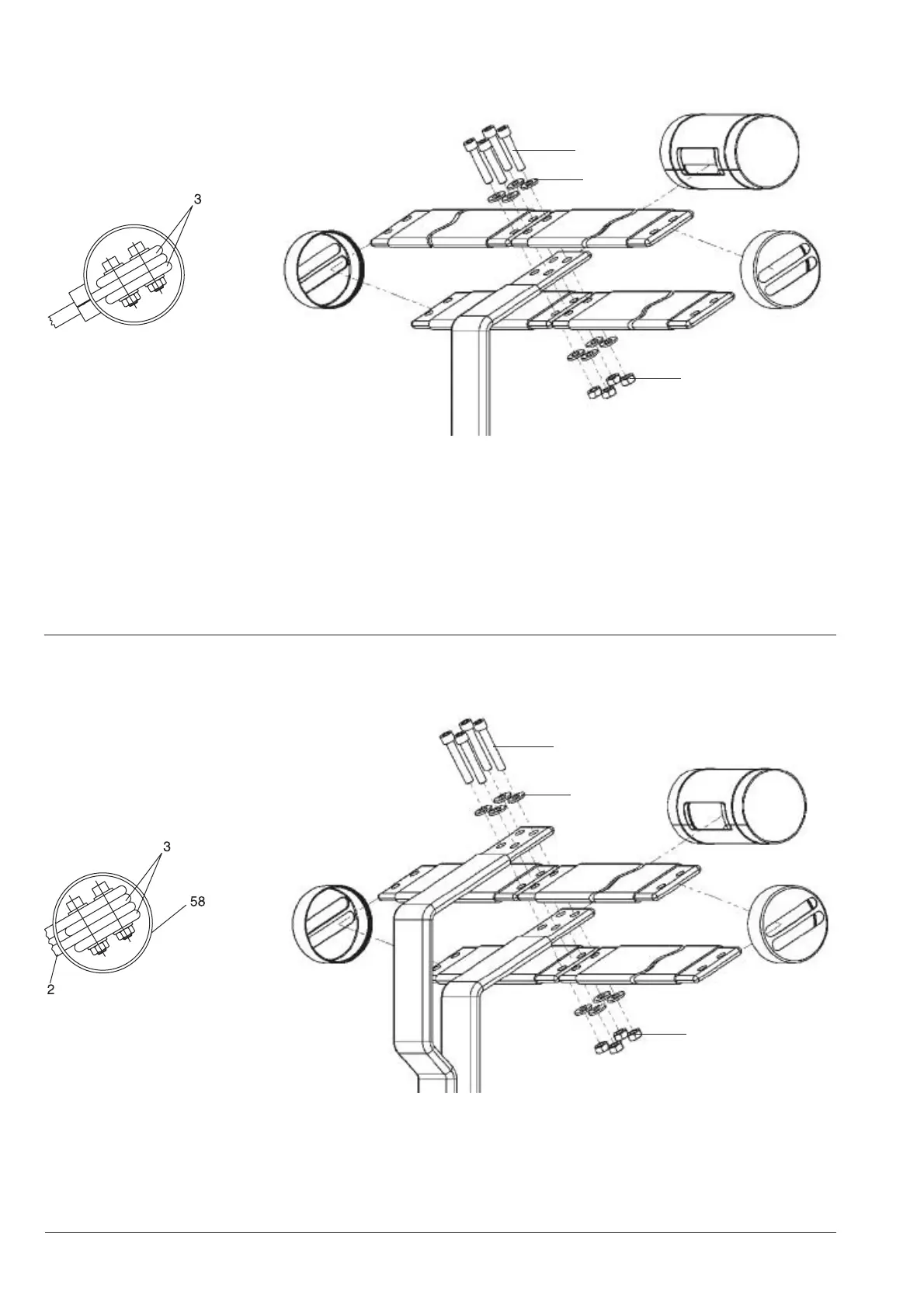

Figure 76: 24 kV panels – Tee-off 1250A, busbars 2500A
41 nr.4 10x60 screws
42 nr.8 M10 washers
43 nr.4 M10 nuts
Figure 77: 24 kV panels – Tee-off 2500A, busbars 2500A
41 nr.4 10x60 screws
42 nr.8 M10 washers
43 nr.4 M10 nuts
41
42
43
41
42
43
