ABB UniGear ZS1 - Page 66

64
With I
th
N° of phases
mm kA (cables)
ABC
IF 800 31,5 3 (6) 465 700 100
IFM 800 31,5 2 (2) 460 740 118
IF 1000 31,5 3 (5) 425 770 120
IFM 1000 31,5 3 (6) 415 690 100

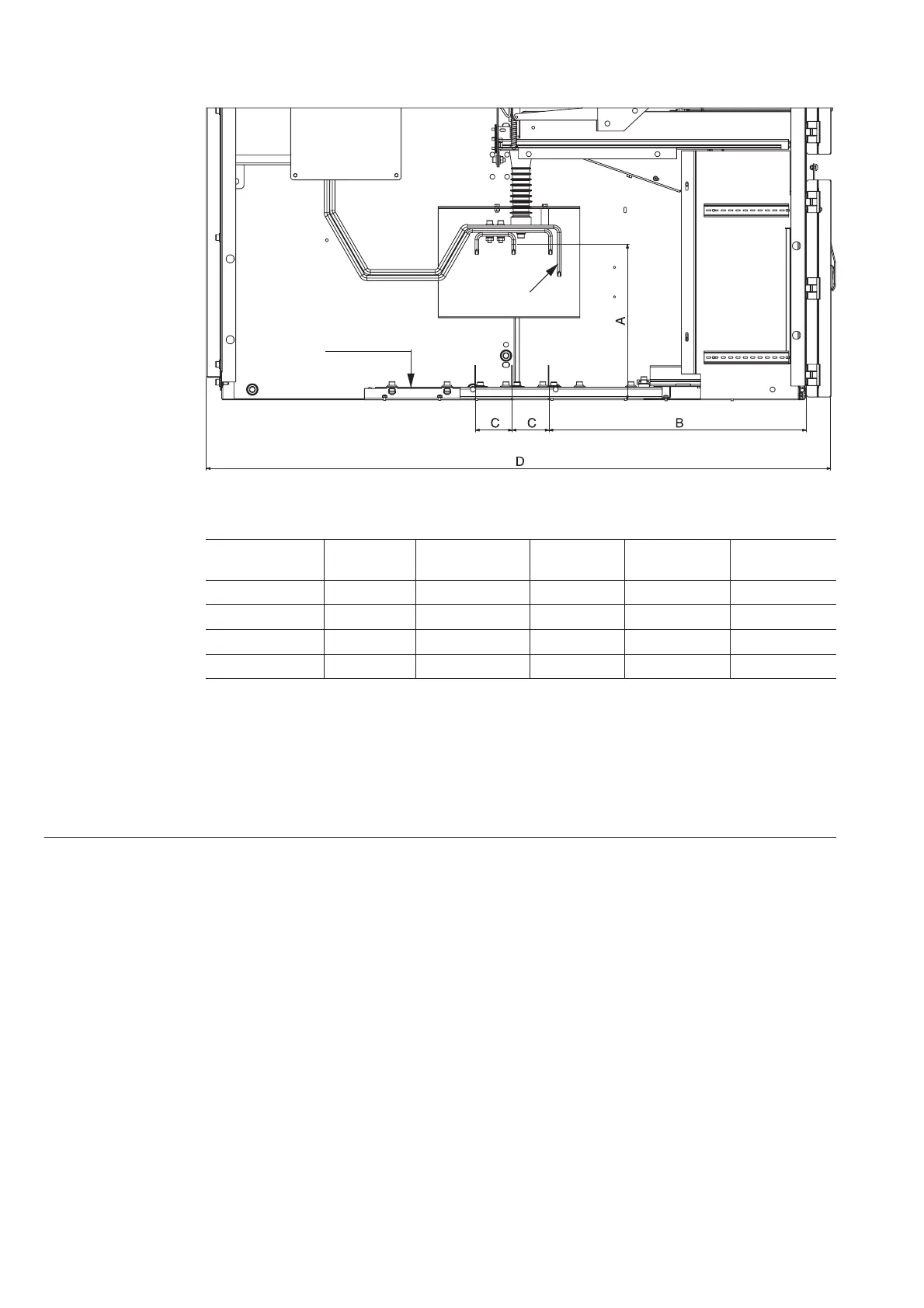

Dimension of power cable connection of UniGear ZS1 24 kV classic panels
Figure 104: Dimension of power cable connection of UniGear ZS1 24 kV classic panels.
(1) The dimension must be verified according to the documentation of the relevant order
21 Cable clamp
23 Cable connection bar
23
21
(1)
