ABEM Terraloc Pro 2
58

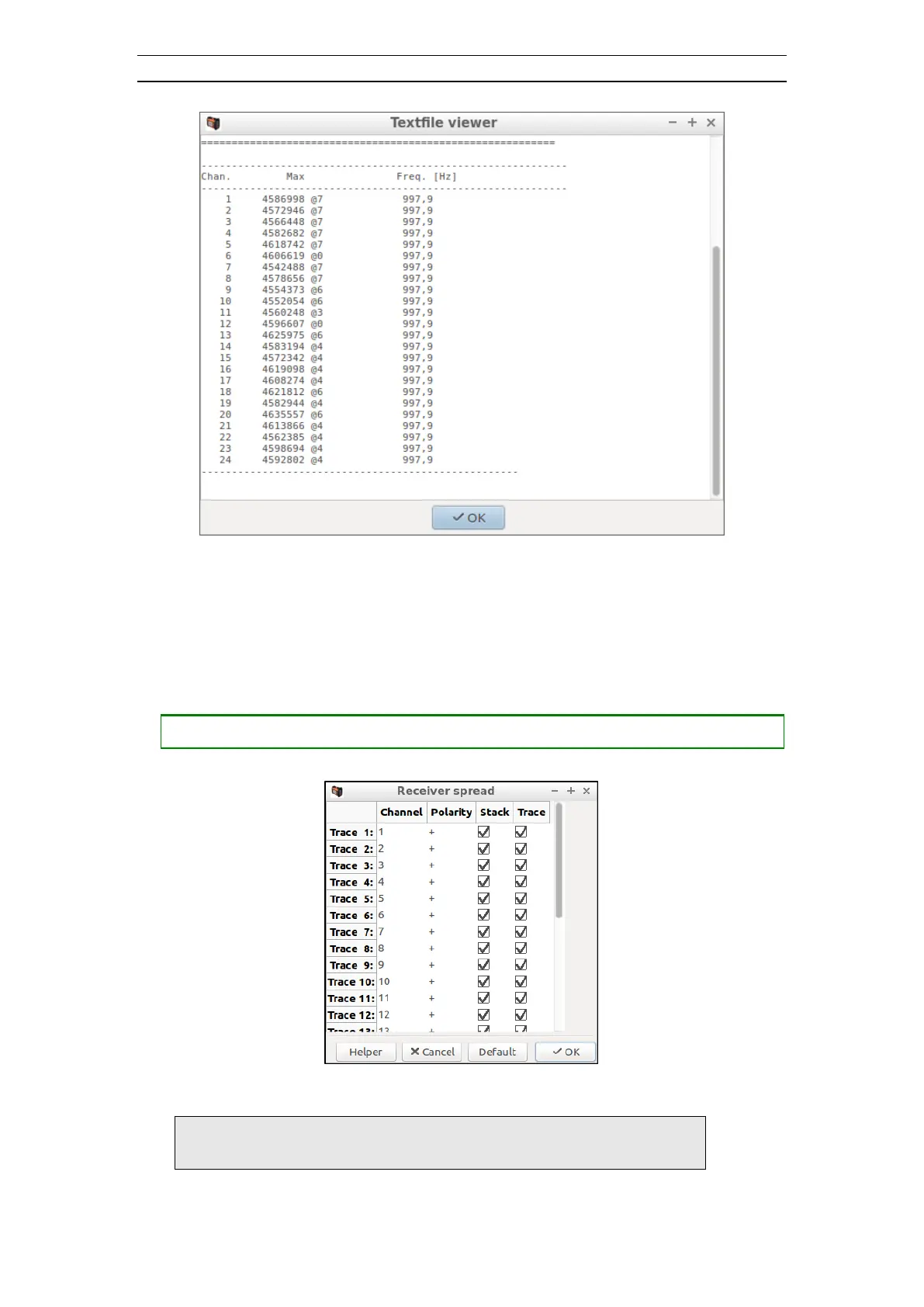

Figure 51 The Geophone Test Result Dialog
4.6.8 The Receiver Spread Dialog
The Receiver Spread dialog is used to set up the traces, including input channel
mapping and polarity (Figure 52).
• Opening the Receiver Spread dialog
― Press <5>
Figure 52 The Receiver Spread Dialog
Note! Default settings can be reloaded by using the Default
button
