3 Product description CAT2
with spring "S" 46
± 3Nm
with standard spring "M" 80
± 3Nm
with spring "L" 85
± 3Nm
with spring "XL" 150
± 3Nm
Tab. 8 Triggering moment (distance 300 mm)

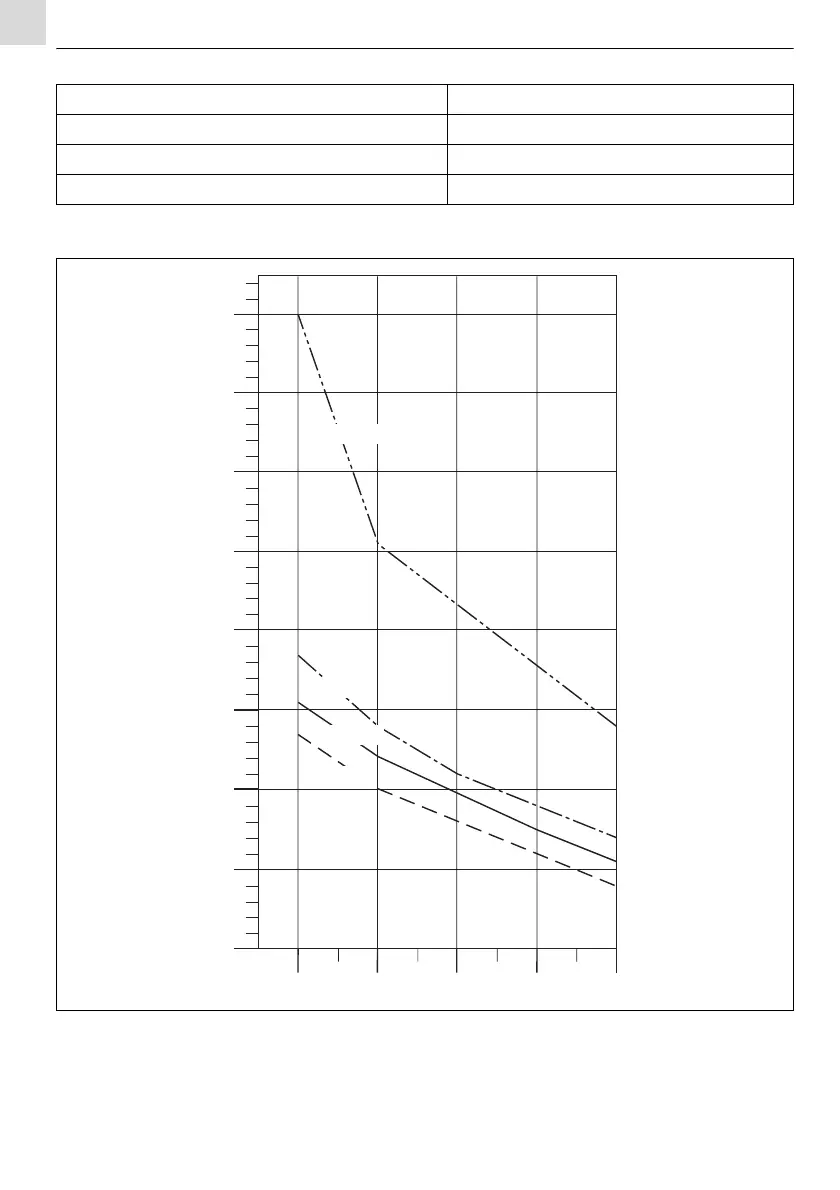

Fig. 3 Diagram
100 150 200 250 300
0
5
10
15
20
25
30
35
40
CAT2 - XL
CAT2 - L
CAT2 - M
CAT2 - S
Distance (mm)
Triggering weight (kg)
