Acer AO725 - Page 161

Machine Maintenance Procedures 3-71
3. Place HDD module onto the base assembly and connect HDD module to mainboard
connector (D) (Figure 3-80).

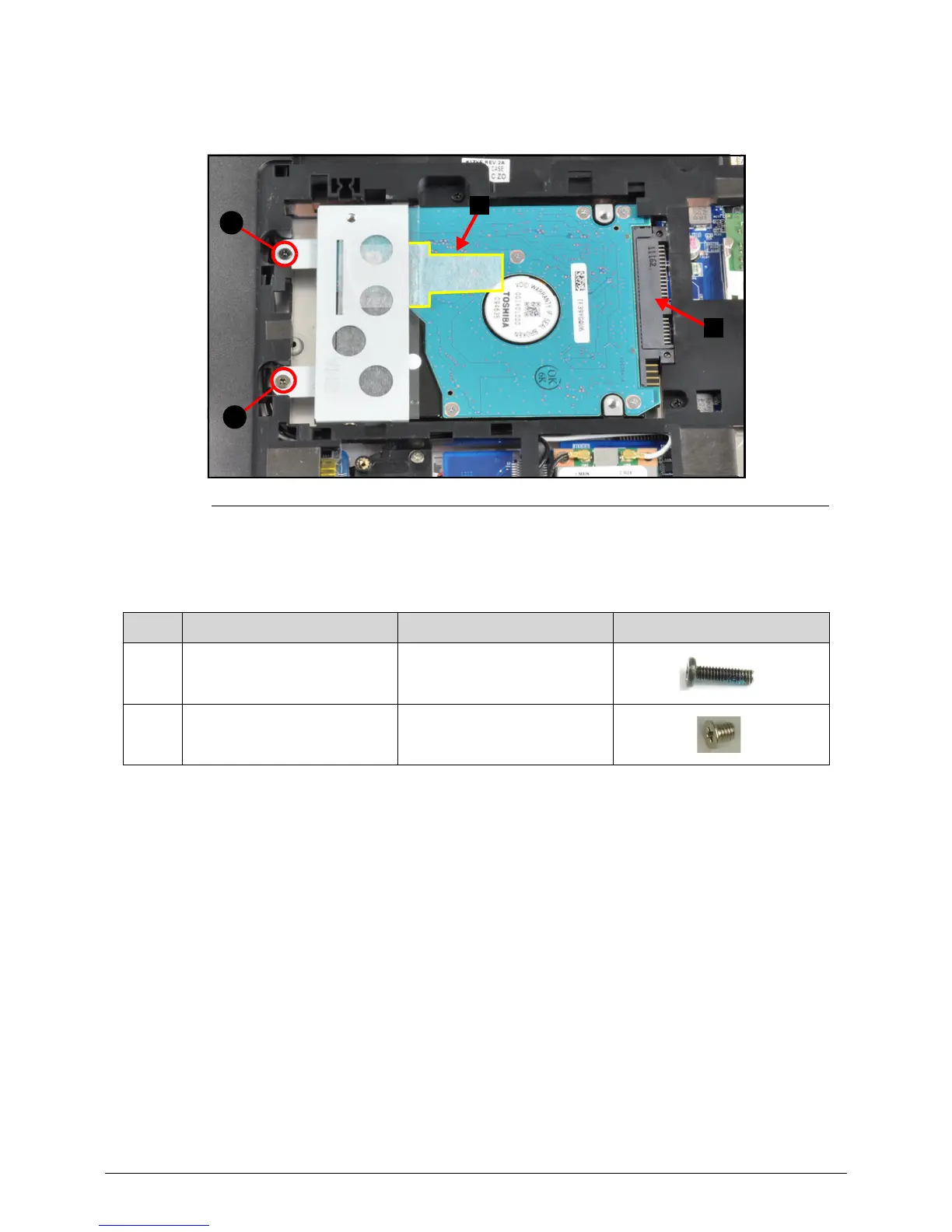

Figure 3-80. HDD Module
4. Install and secure two (2) screws (B) to the base assembly (Figure 3-80).
ID Size Quantity Screw Type
B M2.0*7.5 2
E M3.0*3.5 NI 2
C
D
B
B
