3-20

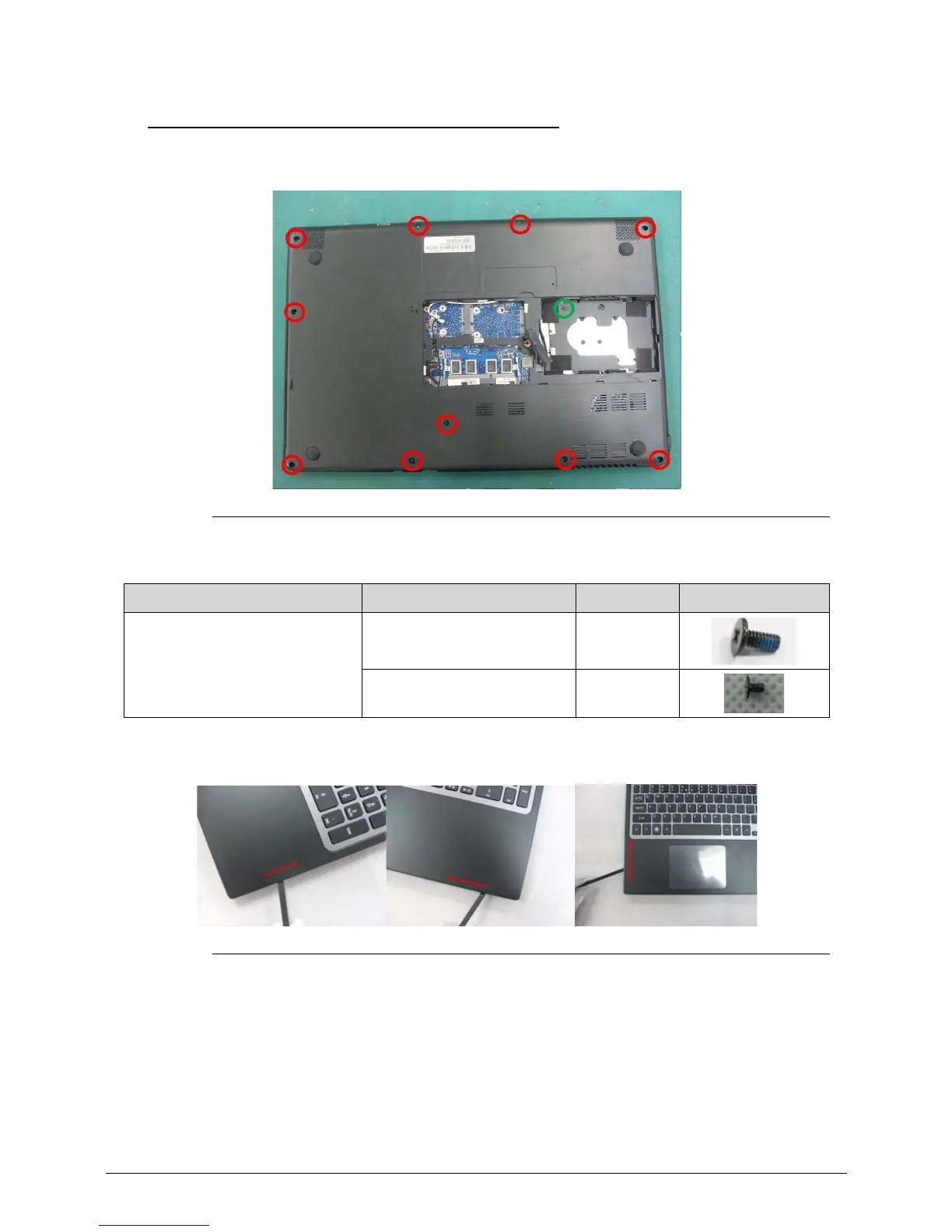

Removing the Top Case
0
1.
Remove
the 1
1
screws
in the
Bottom case.
Figure 3-21.
Screws on Bottom Case
2.
Separate the top case from the bottom case.
Figure 3-22.
T
op Case
T
able 3-8.
Screws
Ste
p
Screw
Quantity
Screw T
y
pe
Bottom Case Disassembly
M2*6 (red callout)
10
M2*3 Ni (green callout)
1
103
105
Table of Contents
Chapter 1 Hardware Specifications
5
Revision History
2
General Information
3
Table of Contents
5
Table of Contents
13
CHAPTER 1 Hardware Specifications
15
Features
15
Display
15
Graphics
15
Operating System
15
Platform
15
System Memory
15
Audio Subsystem
16
Communication
16
Optical Media Drive
16
Storage Subsystem
16
Dimensions and Weight
17
Power Adapter and Battery
17
Privacy Control
17
I/O Ports
18
Software
18
Special Keys and Controls
18
Environment
19
Notebook Tour
21
Open Top View
21
Closed Front View
22
Closed Rear View
22
Left View
23
Right View
24
Base View
25
Indicators
26
Touchpad Basics
26
Using the Keyboard
27
Lock Keys
28
Windows Keys
29
Hotkeys
30
Specification Tables
33
Hard Disk Drive (AVL Components)
37
Solid State Drive (AVL Components)
38
Super-Multi Drive Interface
38
Led 15.6
39
Display Supported Resolution (LCD Supported Resolution)
40
Graphics Controller
40
Display Supported Resolution (GPU Supported Resolution)
40
Display Supported Resolution (LCD Panel Supported Resolution)
40
Bluetooth Interface
41
Bluetooth Module
41
Camera
41
WIFI Card
41
Audio Codec and Amplifier
42
Audio Interface
44
Battery
44
Vram
44
USB Port
44
HDMI Port
45
AC Adapter
45
System Power Management
45
Card Reader
45
System LED Indicator
46
System DMA Specification
46
System Interrupt Specification
46
System IO Address Map
47
Chapter 2 System Utilities
52
BIOS Setup Utility
53
Navigating the BIOS Utility
53
Bios
54
Information
54
Main
56
Security
58
Removing a Password
59
Setting a Password
59
Changing a Password
60
Boot
62
Exit
63
BIOS Flash Utilities
64
DOS Flash Utility
65
Winflash Utility
67
Remove HDD/BIOS Password Utilities
68
Remove HDD Password Utilities
68
Removing BIOS Passwords
70
Cleaning BIOS Passwords
71
Using DMI Tools
72
LAN MAC EEPROM Utility
79
Chapter 3 Machine Maintenance
86
Machine Disassembly and Replacement
89
Recommended Equipment
89
Replacement Requirements
89
Pre-Disassembly Instructions
90
Disassembly Process
91
External Module Disassembly Process
92
External Modules Disassembly Flowchart
92
Removing the Dummy Card
93
Removing the HDD Door
94
Removing the HDD Module
95
Removing the DIMM Module
96
Removing the SSD Module
97
Removing the WLAN Module
98
Removing the ODD Module
100
Main Unit Disassembly Process
103
Main Unit Disassembly Flowchart
103
Removing the Top Case
104
Removing Battery
110
Removing the Power Switch Board
113
Remove the Card Reader
114
Remove the Cables from the Mainboard
115
Removing the Mainboard
118
Removing the Thermal Module
120
Removing the Bluetooth Board
122
Removing the Speakers
123
LCD Module Disassembly Process
125
LCD Module Disassembly Flowchart
125
Removing the LCD Bezel
126
Removing the LCD Panel
130
Removing the Camera Board
132
LCD Reassembly Procedure
133
Replacing the Camera
133
Replacing the LCD Panel
134
Replacing the LCD Bezel
136
Replacing the Bluetooth
137
Replacing the Speakers
138
Replacing the DC-IN Cable
140
Replacing the Thermal Module
141
Replacing the Mainboard
143
Replacing the LCD Module & Cables to Mainboard
144
Replacing the Card Reader
147
Replacing the Power Switch Board&Battery
148
Replacing the Keyboard
151
Replacing the ODD Module
157
Replacing the WLAN Module
160
Replacing the SSD Module
162
Replacing the DIMM Module
163
Replacing the HDD Module
164
Replacing the Door
165
Replacing the Dummy Card
166
Chapter 4 Troubleshooting
168
Introduction
168
General Information
169
Power on Issues
170
No Display Issues
171
LCD Failure
172
Abnormal Video
172
LCD Failure
173
Keyboard Failure
174
Touchpad Failure
175
Internal & External Speaker Failure
176
Microphone Failure
178
USB Failure
179
WLAN Failure
180
Card Reader Failure
181
Thermal Unit Failure
182
HDMI and CRT Failure
183
CD-ROM/DVD Failure
184
Other Functions Failure
185
Introduction
169
Intermittent Problems
185
Undetermined Problems
185
Post Codes
186
POST Code Range
186
Chapter 5 Jumper and Connector Locations
196
Default Chapter
196
BIOS Recovery by Crisis Disk
196
Clear CMOS Jumper
196
Clearing Password Check and BIOS Recovery
196
Clearing Password Check and BIOS Recovery
200
Clearing Password Check
200
Steps for Clearing Bios Password Check
200
Clear CMOS Jumper
201
Bios Recovery Boot Block/Hotkey
202
BIOS Recovery by Crisis Disk
202
MA50_HX Exploded Diagrams
206
Main Assembly
206
LCD Assembly
208
Top Case Assembly
209
Bottom Case Assembly
210
Online Support Information
233
CHAPTER 6 FRU List
212
Microsoft® Windows® 7 Environment Test
224
M3 581T/581Tg
224
CHAPTER 7 Test Compatible Components
225
Microsoft Windows
226
Environment Test
226
Chapter 8
233
