3-8
External Module Disassembly Process 0
External Modules Disassembly Flowchart 0

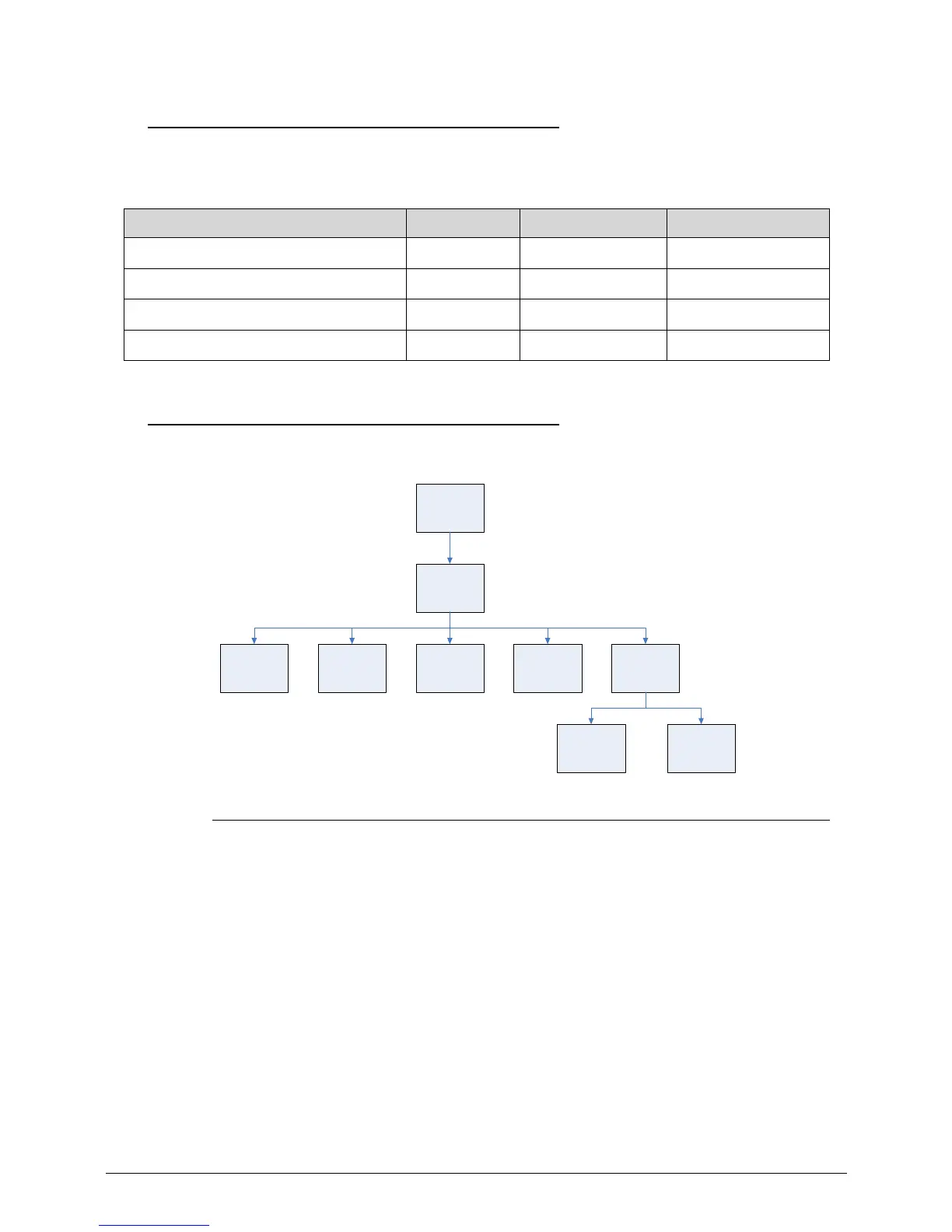

Figure 3-2. External Module Disassembly Flowchart
Table 3-2. Screw List
Step Screw Quantity Part No.
WLAN Module Disassembly M2*3 1 86.RY8N5.006
SSD Module Disassembly M2*3 1 86.RY8N5.006
ODD Module Disassembly M2*3 1 86.RY8N5.006
ODD Bracket Disassembly M2*2.5 2 86.W750U.003
Dummy Card
HDD Door
SSD ModuleDIMM ModuleHDD WLAN Module ODD Module
ODD Bezel ODD Bracket
